Help Center600Mhz Twisted Pair Screen Cat7 NETWORK Cable 1000ft
Related Products
Specifications

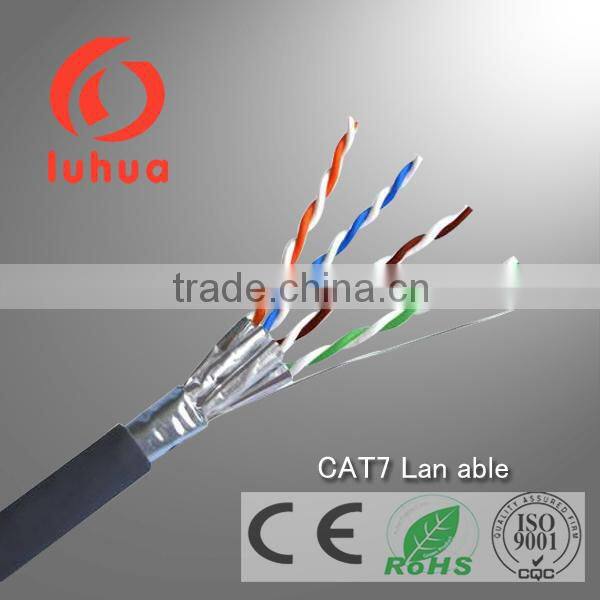

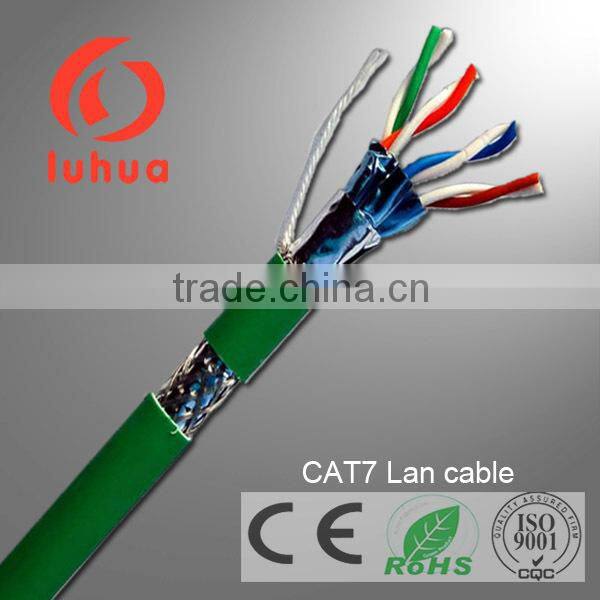

600Mhz Twisted Pair Screen Cat7 NETWORK Cable 1000ft1.CE ISO RoHS approved
2.Quick Delivery
petitive peice
4. OEM
Products Description
Category | SFTP CAT7-4P | Jacket Physical Properties | Before Aging Tensile Strength(Mpa)≥13.5 Elongation(%)≥150 | |||||
Test Standard | ISO/IEC 11801,TIA/EIA 568C.2 | |||||||
Conductor | Material | Solid Bare Copper | Aging Period(°C*hrs) 100°C*24h*7d | |||||
Nom.O.D. | 0.585±0.003mm | After Aging Tensile Strength(MPa) ≥12.5 Elongation(%) ≥125 | ||||||
Insulation | Material | Skin-foam-Skin PE | ||||||
Nom.O.D. | 1.50±0.05mm | Coldbend(-20±2°C*4h) No visible cracks | ||||||
Shield | Al Foil | Braid | TC/Al Wire | Electrical Characteristics (20°C) | Impedance(Ω) 100±15 | |||
Jacket | Thickness | 0.65±0.05mm | Delay Shew(ns/100m) ≤45 | |||||
External O.D. | 7.8±0.3mm | NVP 69% | ||||||
Material | PVC | LSZH | Capacitance(nf/100m) ≤5.6 | |||||
Color | According to Requires | DC Resistance(Ω/100m) ≤9.5 | ||||||
Rip-cord | Yes | Drain Wire | No | DC Resistance Unbalance(%) ≤2.0 | ||||
Technical Performance(100m): | ||||||||
Frequency | ATT(20°C) | RL | NEXT | PSNEXT | ACR | ACR-F | PS ACR-F | |
(MHz) | ≤dB | ≥dB | ≥dB | ≥dB | ≥dB | ≥dB | ≥dB | |
1.0 | 2.0 | 20.0 | 78.0 | 75.0 | 76.0 | 78.0 | 75.0 | |
4.0 | 3.7 | 23.0 | 78.0 | 75.0 | 74.3 | 78.0 | 75.0 | |
10.0 | 5.9 | 25.0 | 78.0 | 75.0 | 72.1 | 74.0 | 71.0 | |
16.0 | 7.4 | 25.0 | 78.0 | 75.0 | 70.6 | 69.9 | 66.9 | |
20.0 | 8.3 | 25.0 | 78.0 | 75.0 | 69.7 | 68.0 | 65.0 | |
31.25 | 10.4 | 23.6 | 78.0 | 75.0 | 67.6 | 64.1 | 61.1 | |
62.5 | 14.9 | 21.5 | 75.5 | 72.5 | 60.6 | 58.1 | 55.1 | |
100 | 19.0 | 20.1 | 72.4 | 69.4 | 53.4 | 54.0 | 51.0 | |
200 | 27.5 | 18.0 | 67.9 | 64.9 | 46.2 | 50.2 | 45.0 | |
250 | 31.0 | 17.3 | 66.4 | 63.4 | 40.4 | 46.0 | 43.0 | |
300 | 34.2 | 17.3 | 65.2 | 62.2 | 31.0 | 44.5 | 41.5 | |
600 | 50.1 | 17.3 | 60.7 | 57.7 | 10.6 | 38.4 | 35.4 | |

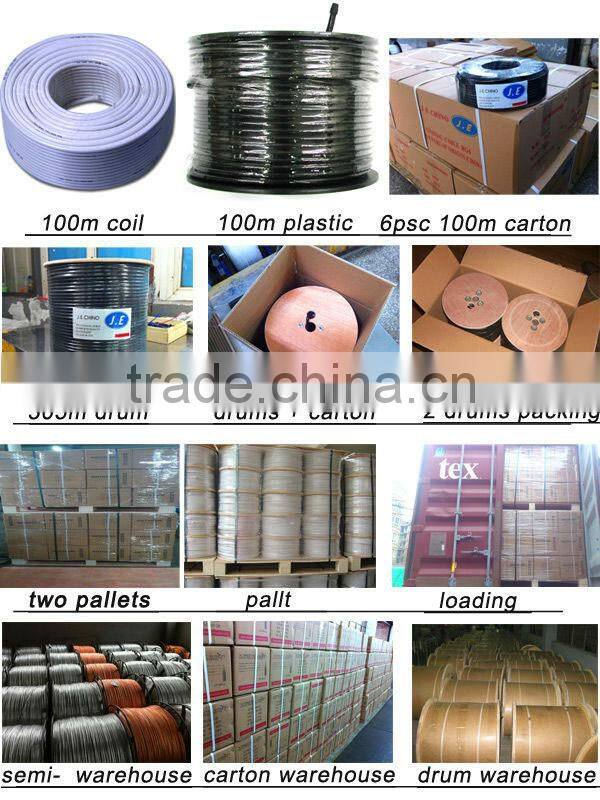

Paking & Shipping
1) Packing Lengths: 305m
2) Inner packing: 305m/Easy pull-out box
3) Outer packing: 2 boxes in 1 master carton box
4) Other packing available according to client's request.
or according to the customer request
Our Service
Sample for free
1. Your inquiry will be replied in 24hours.
2. 15 years Coaxial Cable's experience,can become your professional purchasing partner.
3. OEM&ODM, any your customized cables we can help you to design and put into product .
4. Sample you need so that to test our company 's ability, we are so glad to free offer it.
5. Protection of your sales area, ideas of design and all your private information is our duty
more products
COXIAL CABLE:
75 OHM: RG6 RG59 RG11 QR540
50 OHM: LMER200,300,400,600
RG58 RG8 RG213, 214, 223
SERIES OF D-FB
COMPOSE CABLE, such as RG59+power cable, RG6+power cable,etc
LAN CABLE:UTP/FTP/SFTP CAT5E, CAT6
TELEPHONE CABLE

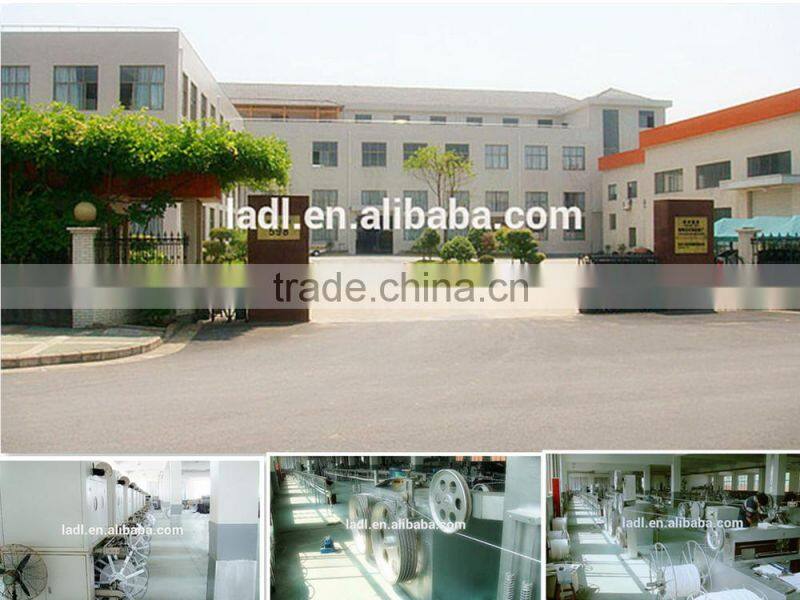

Company Overview
Hangzhou LinAn LuHua Industrial Co.,Ltd has more than15 years experience both in the production of coaxial cable.
We are always promoting the development of the enterprise with the Honest Operation since we step into the cable industry, so as to develop our company from a small workshop of more than 10 people to a limited company of more than 100 people.
2 types:
1)RG59,RG6,RG7,RG11, 75 OhmCoaxial Cable with Solid Polyethylene Insulation ,which is also named Vedio. cable
2)RG59,RG6,RG7,RG11, 75 Ohms Coaxial Cable with Gas-injected Foam Polyethylene Insulation, which is also named RF cable.
