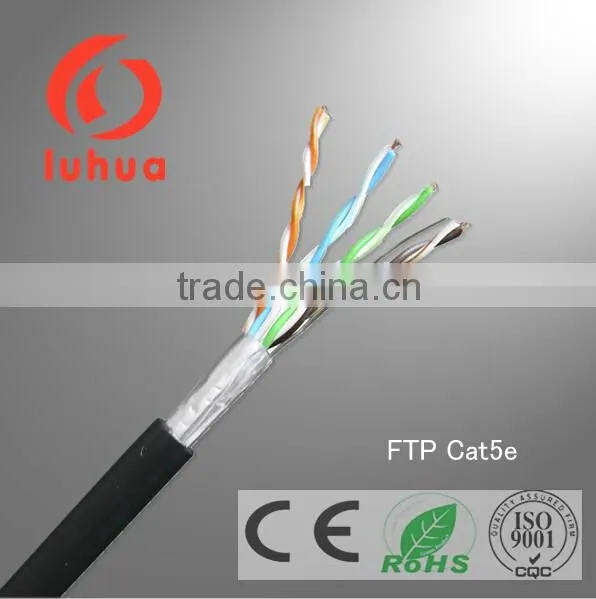

Help CenterFTP CAT5E
Related Products
-
UTP CAT6US$ 0.18 - 0.46MOQ: 30000 Meters -
Fluke Test Passing FTP CAT5e LAN Cable 100 OHMUS$ 0.08 - 0.28MOQ: 50000 Meters
-
Fluke Test Passing SFTP CAT7A LAN Cable 100 OHMUS$ 0.08 - 0.24MOQ: 50000 Meters
-
EU Standard UTP CAT5e Cable With 23AWG ConductorUS$ 20 - 42MOQ: 100 Boxes
-
CMR Rated SFTP CAT5e Lan Cable Passed Fluke Test Permanent Link 90 MtrsUS$ 31 - 60MOQ: 100 Pieces
Rated temperature: 60℃,75℃,90℃
Reference Standard:UL444,TIA/EIA-568B
Bare copper conductor
RoHS complied PVC,PE or LSZH Jacket
Complies to TIA/EIA-568B&ISO/IEC11801
Cable construction
Item No. |
LH601 |
LH602 |
LH603 |
LH604 |
LH605 |
Application |
Indoor |
Outdoor |
Outdoor |
Outdoor |
Outdoor |
Conductor Dia |
0.515mm |
0.515mm |
0.515mm |
0.515mm |
0.515mm |
Core Dia |
0.93mm |
0.93mm |
0.93mm |
0.93mm |
0.93mm |
No.of Pairs |
4 |
4 |
4 |
4 |
4 |
Nom.OD(mm) |
6.3mm |
6.3mm |
7.0mm |
6.3mm |
6.3mm |
Shielding |
Al foil |
||||
Jacket |
PVC |
PE |
PVC+PE |
LSZH |
PE |
Remark |
|
Jelly filled |
Water block Tape |
|
1.3mm steel messenger |
Electrical Characteristics
Frequency(MHz) |
1 |
4 |
8 |
10 |
16 |
25 |
31.25 |
62.5 |
100 |
155 |
200 |
310 |
350 |
Impedance(Ω) |
100±15 |
100±18 |
100±22 |
||||||||||
RL(dB) |
20 |
23 |
25 |
25 |
25 |
24 |
24 |
22 |
20 |
19 |
19 |
18 |
17 |
Attenuation(dB/100m) |
2.0 |
4.1 |
5.8 |
6.5 |
8.2 |
10.4 |
11.6 |
17.0 |
22 |
28.1 |
28.1 |
41.8 |
44.9 |
NEXT(dB/100m) |
65.3 |
56.3 |
51.8 |
50.3 |
47.3 |
44.3 |
42.9 |
38.4 |
35.3 |
33.0 |
33.0 |
28.0 |
27.0 |
ELFEXT(dB/100m) |
63.8 |
51.7 |
45.7 |
43.8 |
39.7 |
35.8 |
33.9 |
27.8 |
23.8 |
20.0 |
20.0 |
14.0 |
13.0 |
PS NEXT(dB/100m) |
62.3 |
53.3 |
48.8 |
47.3 |
44.2 |
41.3 |
39.9 |
35.4 |
32.3 |
29.0 |
29.0 |
25.0 |
24.0 |
PSELFEXT(dB/100m) |
60.8 |
48.7 |
42.7 |
40.8 |
36.7 |
32.8 |
30.9 |
24.8 |
20.8 |
17.0 |
17.0 |
11.0 |
10.0 |
Propagation Speed(m/s) |
0.65c |
||||||||||||
1) Packing Lengths: 305m
2) Inner packing: 305m/Easy pull-out box
3) Outer packing: 2 boxes in 1 master carton box
4) Other packing available according to client's request.
COXIAL CABLE:
75 OHM: RG6 RG59 RG11 QR540
50 OHM: LMER200,300,400,600
RG58 RG8 RG213, 214, 223
SERIES OF D-FB
COMPOSE CABLE, such as RG59+power cable, RG6+power cable,etc
LAN CABLE:UTP/FTP/SFTP CAT5E, CAT6
TELEPHONE CABLE
