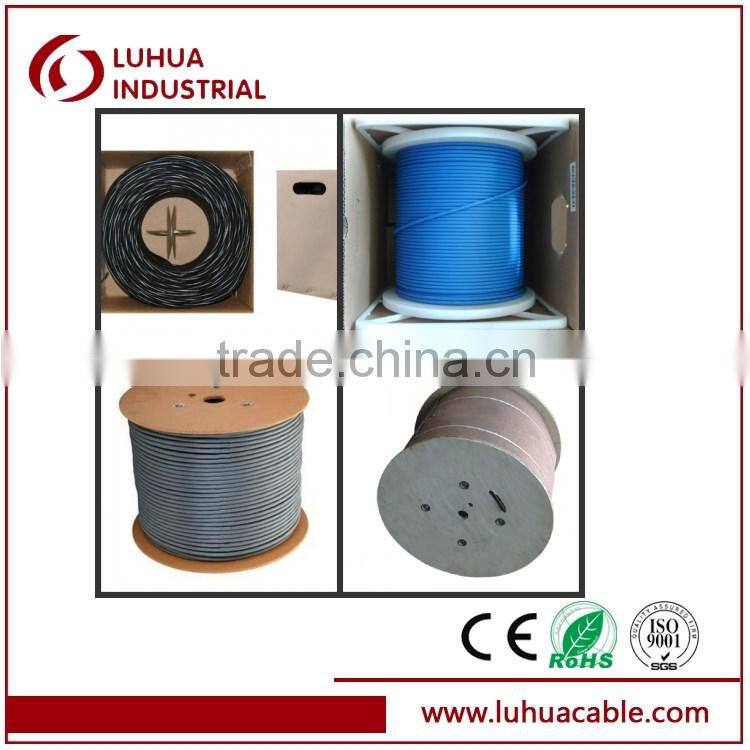

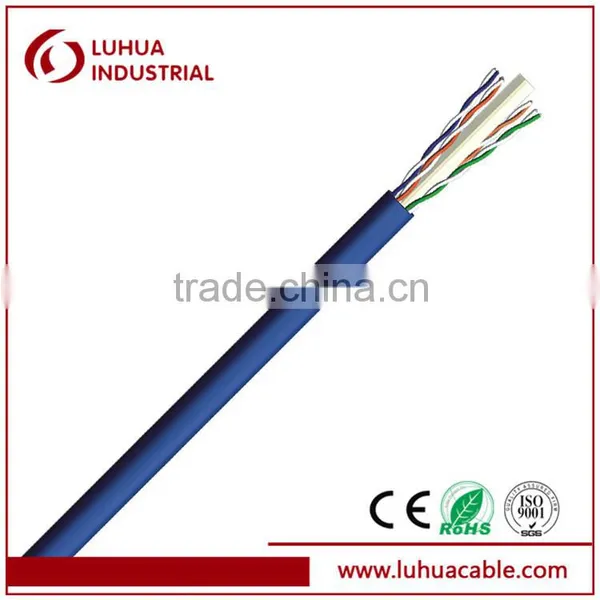

Networking cable UTP CAT6 Cable
Rated temperature: 60℃,75℃,90℃
Reference Standard:UL444,TIA/EIA-568B
Bare copper conductor
RoHS complied PVC,PE or LSZH Jacket
Complies to TIA/EIA-568B&ISO/IEC11801
Cable construction
Item No. | LH701 | LH602 | LH603 | LH604 | LH605 |
Application | Indoor | Outdoor | Outdoor | Outdoor | Outdoor |
Conductor Dia | 0.565mm | 0.57mm | 0.575mm | 0.575mm | 0.585mm |
Core Dia | 1.04mm | 1.04mm | 1.04mm | 1.04mm | 1.04mm |
No.of Pairs | 4 | 4 | 4 | 4 | 4 |
Nom.OD(mm) | 6.3mm | 6.3mm | 7.4mm | 6.3mm | 6.5mm |
Jacket | PVC | PVC | PVC+PE | LSZH | PE |
Remark |
| Jelly filled | Water block Tape |
| 1.3mm steel messenger |
Electrical Characteristics
Frequency(MHz) | 1 | 4 | 8 | 10 | 16 | 25 | 31.25 | 62.5 | 100 | 155 | 200 | 300 | 350 | 450 | 500 | 550 |
Impedance(Ω) | 100±15 | 100±18 | 100±22 | |||||||||||||
RL(dB) | 20 | 23 | 25 | 25 | 25 | 24 | 24 | 22 | 21 | 21 | 21 | 17 | 16 | 16 | 15 | 15 |
Attenuation(dB/100m) | 1.9 | 3.7 | 5.3 | 5.9 | 7.5 | 9.5 | 10.6 | 15.4 | 19.8 | 25.1 | 29.0 | 36.4 | 39.8 | 46.3 | 48.9 | 51.8 |
NEXT(dB/100m) | 74.3 | 65.3 | 60.3 | 59.3 | 56.3 | 53.4 | 51.9 | 47.4 | 44.3 | 41.5 | 39.8 | 37.2 | 36.2 | 34.5 | 33.8 | 33.2 |
ELFEXT(dB/100m) | 67.8 | 55.8 | 49.7 | 47.8 | 43.7 | 39.8 | 37.9 | 31.9 | 27.8 | 23.9 | 21.8 | 18.2 | 16.9 | 14.7 | 13.8 | 12.9 |
PS NEXT(dB/100m) | 72.3 | 63.3 | 58.8 | 57.3 | 54.3 | 51.4 | 49.9 | 45.4 | 42.3 | 39.5 | 37.8 | 35.2 | 34.2 | 32.5 | 31.8 | 31.2 |
PSELFEXT(dB/100m) | 64.8 | 57.7 | 46.7 | 44.8 | 40.7 | 36.8 | 34.9 | 28.8 | 24.8 | 20.9 | 18.7 | 15.2 | 13.9 | 11.7 | 10.8 | 9.9 |
Propagation Speed(m/s) | 0.65c |
|
|
| ||||||||||||
1, PC with Switch, Hub, ADSL, Router, Wall Socket, Network Module Plate,etc. |
| 2, ADSL, Modem with Hub or Router,etc. |
| 3, This cable connects 2 XBOX consoles for multi player gaming |
| 1, Our promise, LIFETIME WARRANTY |
2, As long as quality problem, we will deal with it asap and repair or replace or retrun funds |
