Rated temperature: 60℃,75℃,90℃
Reference Standard:UL444,TIA/EIA-568B
Bare copper conductor
RoHS complied PVC,PE or LSZH Jacket
Complies to TIA/EIA-568B&ISO/IEC11801

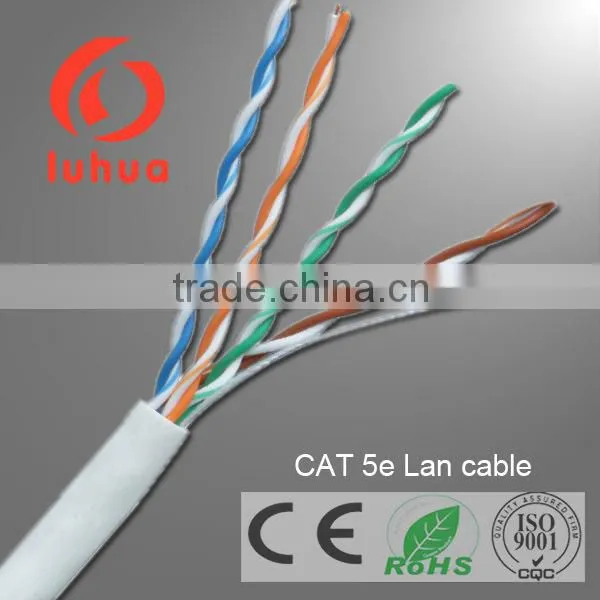

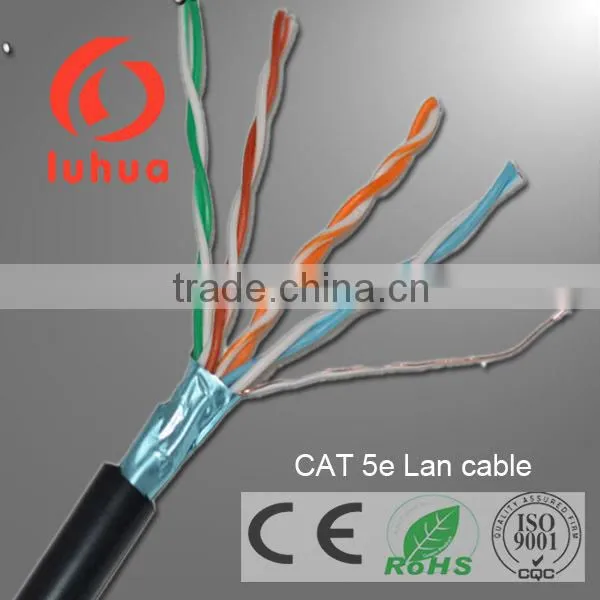

Cable construction
Item No. |
LH501 |
LH502 |
LH503 |
LH504 |
LH505 |
Application |
Indoor |
Indoor |
Outdoor |
Outdoor |
Outdoor |
Conductor Dia |
0.50mm |
0.51mm |
0.51mm |
0.51mm |
0.51mm |
Core Dia |
0.91mm |
0.91mm |
0.91mm |
0.91mm |
0.91mm |
No.of Pairs |
4 |
4 |
4 |
4 |
4 |
Nom.OD(mm) |
5.1mm |
5.1mm |
5.1mm |
5.1mm |
5.1mm |
Jacket |
PVC |
PVC |
PE |
PVC+PE |
LSZH |
Remark |
|
|
Jelly filled |
Water block Tape |
|
Electrical Characteristics
Frequency(MHz) |
1 |
4 |
8 |
10 |
16 |
25 |
31.25 |
62.5 |
100 |
155 |
200 |
310 |
350 |
|||
Impedance(Ω) |
100±15 |
100±18 |
100±22 |
|||||||||||||
RL(dB) |
20 |
23 |
|
25 |
25 |
25 |
24 |
22 |
20 |
19 |
19 |
18 |
17 |
|||
Attenuation(dB/100m) |
2.0 |
4.1 |
|
5.8 |
6.5 |
8.2 |
10.4 |
17.0 |
22 |
28.1 |
28.1 |
41.8 |
44.9 |
|||
NEXT(dB/100m) |
65.3 |
56.3 |
|
51.8 |
50.3 |
47.3 |
44.3 |
38.4 |
35.3 |
33.0 |
33.0 |
28.0 |
27.0 |
|||
ELFEXT(dB/100m) |
63.8 |
51.7 |
|
45.7 |
43.8 |
39.7 |
35.8 |
27.8 |
23.8 |
20.0 |
20.0 |
14.0 |
13.0 |
|||
PS NEXT(dB/100m) |
62.3 |
53.3 |
|
48.8 |
47.3 |
44.2 |
41.3 |
35.4 |
32.3 |
29.0 |
29.0 |
25.0 |
24.0 |
|||
PSELFEXT(dB/100m) |
60.8 |
48.7 |
|
42.7 |
40.8 |
36.7 |
32.8 |
24.8 |
20.8 |
17.0 |
17.0 |
11.0 |
10.0 |
|||

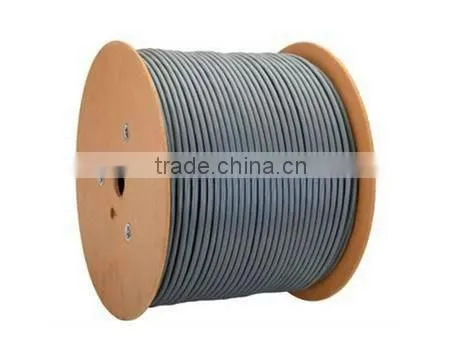

1) Packing Lengths: 305m

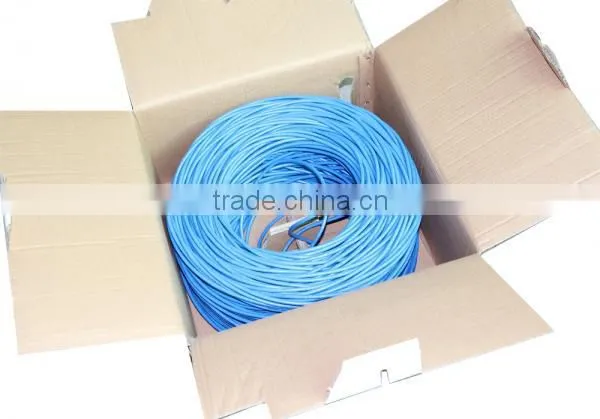

2) Inner packing: 305m/Easy pull-out box
3) Outer packing: 2 boxes in 1 master carton box
4) Other packing available according to client's request.

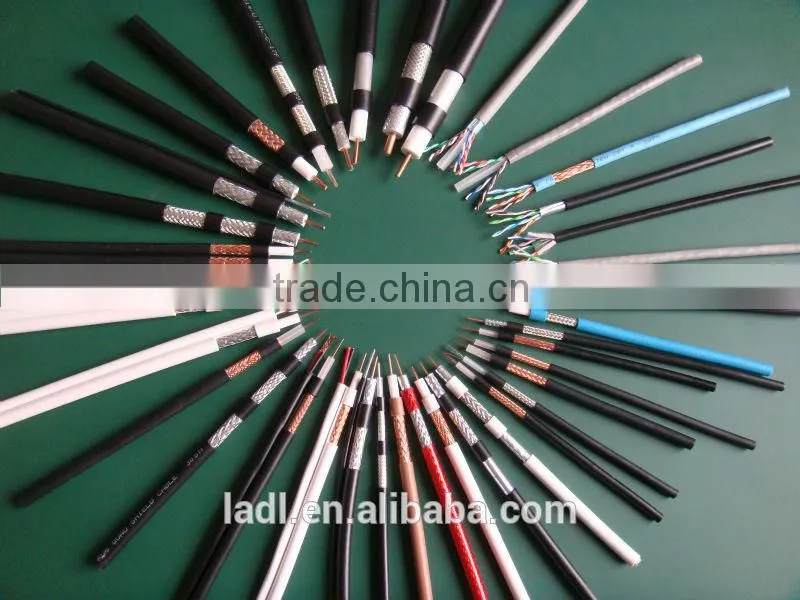

COXIAL CABLE:
75 OHM: RG6 RG59 RG11 QR540
50 OHM: LMER200,300,400,600
RG58 RG8 RG213, 214, 223
SERIES OF D-FB
COMPOSE CABLE, such as RG59+power cable, RG6+power cable,etc
LAN CABLE:UTP/FTP/SFTP CAT5E, CAT6
TELEPHONE CABLE
