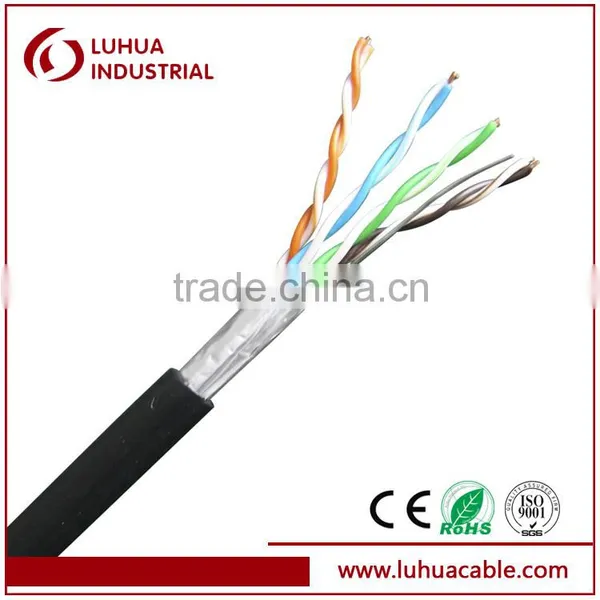

Help CenterFluke Test Passing FTP CAT5e LAN Cable 100 OHM
Related Products
-
Fluke Test Passing SFTP CAT7A LAN Cable 100 OHMUS$ 0.08 - 0.24MOQ: 50000 Meters -
EU Standard UTP CAT5e Cable With 23AWG ConductorUS$ 20 - 42MOQ: 100 Boxes
-
CMR Rated SFTP CAT5e Lan Cable Passed Fluke Test Permanent Link 90 MtrsUS$ 31 - 60MOQ: 100 Pieces
-
CMR Rated Networking Cable UTP CAT5e Lan Cable for USA MarketUS$ 21 - 50MOQ: 100 Pieces
-
SFTP CAT6 LAN Cable 4 Pairs Network CableUS$ 0.05 - 0.3MOQ: 50000 Meters
FTP CAT5e
Application
Ethernet
100 Base-T,ATM
Product Description
Rated temperature: 60℃,75℃,90℃
Reference Standard:UL444,TIA/EIA-568B
Bare copper conductor
RoHS complied PVC,PE or LSZH Jacket
Complies to TIA/EIA-568B&ISO/IEC11801
Cable construction
Item No. | LH601 | LH602 | LH603 | LH604 | LH605 |
Application | Indoor | Outdoor | Outdoor | Outdoor | Outdoor |
Conductor Dia | 0.515mm | 0.515mm | 0.515mm | 0.515mm | 0.515mm |
Core Dia | 0.93mm | 0.93mm | 0.93mm | 0.93mm | 0.93mm |
No.of Pairs | 4 | 4 | 4 | 4 | 4 |
Nom.OD(mm) | 6.3mm | 6.3mm | 7.0mm | 6.3mm | 6.3mm |
Shielding | Al foil | ||||
Jacket | PVC | PE | PVC+PE | LSZH | PE |
Remark |
| Jelly filled | Water block Tape |
| 1.3mm steel messenger |
Electrical Characteristics
Frequency(MHz) | 1 | 4 | 8 | 10 | 16 | 25 | 31.25 | 62.5 | 100 | 155 | 200 | 310 | 350 |
Impedance(Ω) | 100±15 | 100±18 | 100±22 | ||||||||||
RL(dB) | 20 | 23 | 25 | 25 | 25 | 24 | 24 | 22 | 20 | 19 | 19 | 18 | 17 |
Attenuation(dB/100m) | 2.0 | 4.1 | 5.8 | 6.5 | 8.2 | 10.4 | 11.6 | 17.0 | 22 | 28.1 | 28.1 | 41.8 | 44.9 |
NEXT(dB/100m) | 65.3 | 56.3 | 51.8 | 50.3 | 47.3 | 44.3 | 42.9 | 38.4 | 35.3 | 33.0 | 33.0 | 28.0 | 27.0 |
ELFEXT(dB/100m) | 63.8 | 51.7 | 45.7 | 43.8 | 39.7 | 35.8 | 33.9 | 27.8 | 23.8 | 20.0 | 20.0 | 14.0 | 13.0 |
PS NEXT(dB/100m) | 62.3 | 53.3 | 48.8 | 47.3 | 44.2 | 41.3 | 39.9 | 35.4 | 32.3 | 29.0 | 29.0 | 25.0 | 24.0 |
PSELFEXT(dB/100m) | 60.8 | 48.7 | 42.7 | 40.8 | 36.7 | 32.8 | 30.9 | 24.8 | 20.8 | 17.0 | 17.0 | 11.0 | 10.0 |
Propagation Speed(m/s) | 0.65c | ||||||||||||
Hangzhou LinAn LuHua Industrial Co.,Ltd is situated in Linglong Industrial Zone, Lin'an, Zhejiang
province , China.
Strength
Our company is a capable enterprise with more than15 years experiences both in the production
and the management system, We have the most advanced testing equipment, and got some
authority certificate of this field,such as the ISO-9001, CE, ROSHS, all of these contribute
to insure that we can provide the products with high quality.
Our cable products including:
Fiber optical cable (indoor fiber cable for FTTH Cable&outdoor fiber cable for GY series)
Coaxial cable (RG series,JIS series,D-FB series RF Cables)
Lan cable (UTP/FTP/SFTP CAT5e/CAT6/CAT6A,etc)
