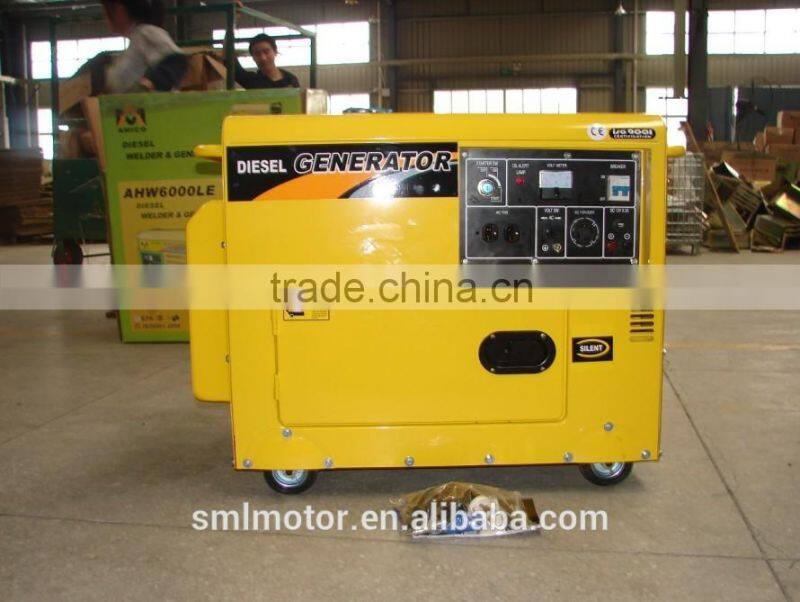

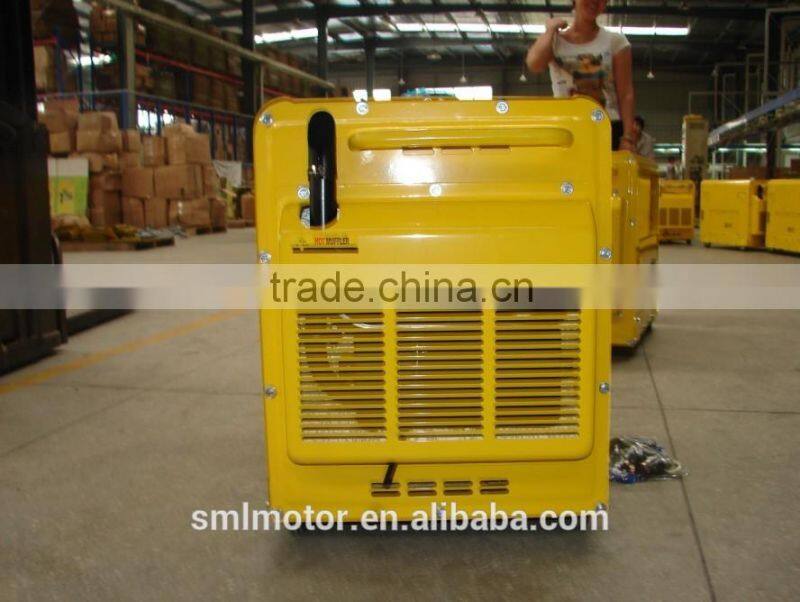

China Small Genset Honda Kohler Filman 3KVA-15KVA Cheapest Price Portable Silent Diesel Generator
- any seaport in China or abroad
- T/T L/C D/P D/A Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | diesel generator | |
| Model Number | GF3-6KVA | Output Type | AC Three Phase | |
| Speed | 3000r/m or 3600r/m | Frequency | 50hz /60hz | |
| Rated Power | 6KVA | Rated Voltage | 230/400V | |
| Rated Current | 9A |
Product Description
China Small Genset Honda Kohler Filman 3KVA-15KVA cheapest price portable silent diesel generator
China Manufacturer Diesel Generating Sets 2.5KVA-2000KVA
Auxiliary Generator Factory, Electric Power Silent Generator
6.5KVA / 5KW Air cooled Open And Silent Diesel Generator with Trailer Features:
1. Generator power by 4-stroke air-cooled direct injection diesel engine F186E
2. Rated output at 5.0kW, Max. Output at 6kW.
3. Large fuel tank ensures hours of continuous running.
4. Brushless alternator for easy maintenance.
5. 12-volt DC output as standard configuration for battery charging and low voltage appliance.
6. Standard configuration of voltmeter enables convenient use.
7. Hydrautic-Mafnetic Circuit Breakers for overload protection and convenience
8. Sound-absorbing panels keep lower noise generator.
9. Wheels and handle for easy move diesel generator.
10. Full frame protection which looks more luxurious for easy
11. digital meter,digital controller , ATS (automatic transfer switch) for diesel generator
12. Low fuel comsuption diesel generator
13. Diesel Generator suitable for 50Hz and 60Hz
AC Single Phase or Three Phase AC Voltage 220380V Silent Diesel Generator Specification:
Open or Silent Type Air-cooled Diesel Generator Sets ,VOLT meter,digital controller and ats , standby power 2kva 3kva 5kva 6kva 7kva 8kva 10kva 12kva silent diesel generator | ||||||
| Model | GF3-3 | GF3-5KW | GF3-6KW | |||
| Rated frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated voltage(v) | 110,120,220,230,240,220/110,240/120 | |||||
| rated output power(kw) | 2.8 | 3.3 | 4.2 | 5 | 5 | 5.5 |
| Max output power(kw) | 3 | 3.6 | 5 | 5.5 | 5.5 | 6 |
| Dc output | 12V-8.3A | |||||
| Power factor cos1 | 1 | |||||
| Phase number | Single-phase | |||||
| Fuel tank capacity (l) | 16 | |||||
| Continuour running time (hr)(at rated power) | 12.5 | 11.5 | 8.5 | 7.5 | 8.5 | 7.5 |
| Noise level{db(A)/7m}(zero load-full load) | 70-74 | |||||
| Overall dimension{mm}(LXWXH) | 825*520*740 | 910*520*740 | 935*520*715 | |||
| Packing dimension {mm}(lXWXH) | 855*550*780 | 950*550*780 | 960*550*770 | |||
| Net weight kg | 132 | 156 | 171 | |||
| Gross weight kg | 150 | 170 | 185 | |||
| starter system | electric starter | |||||
| Engine model | 178FGE | 186FGE | 186FAGE | |||
| Engine type | Single cylinder,4-stroke,air-cooled,vertical,diesel engine | |||||
| Bore*stroke(mm) | 78*62 | 86*70 | 86*72 | |||
| Displancement (cc) | 296 | 406 | 418 | |||
| Rated rotation speed (rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |

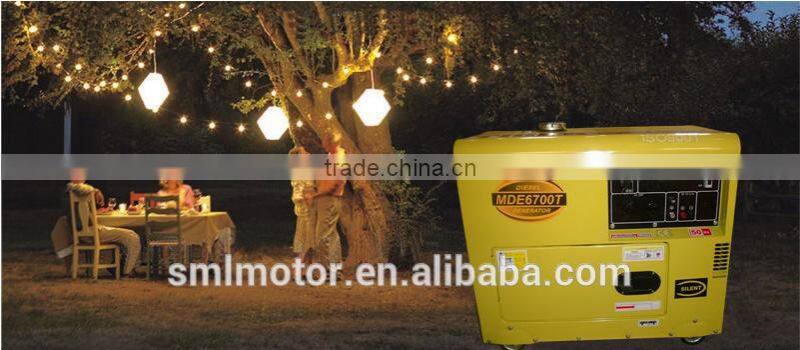

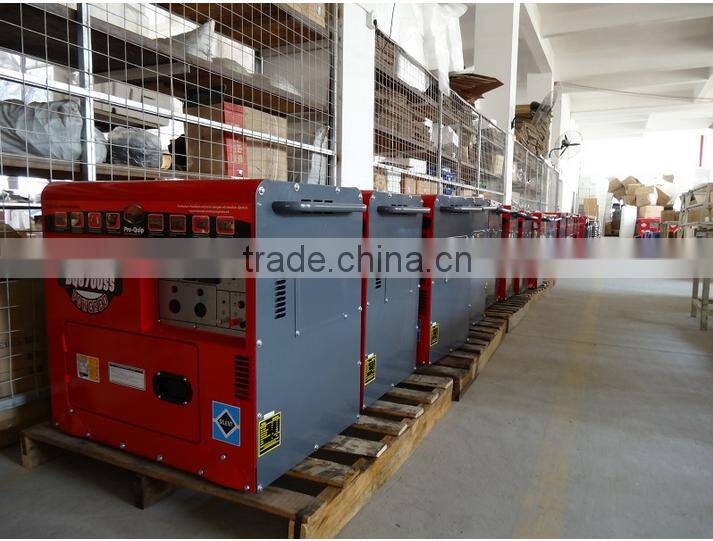

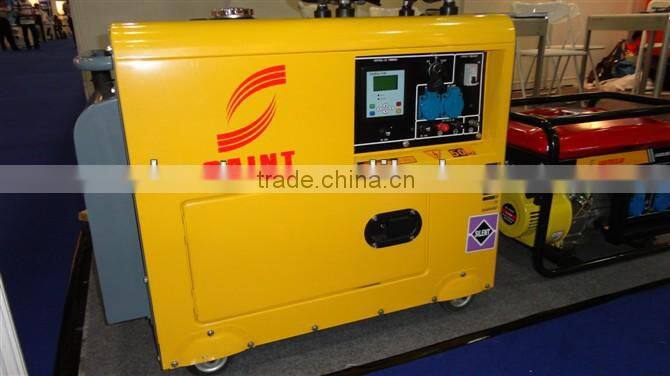

Silent Diesel Generator ( air cooled diesel engine + brushless alternator with / without AVR ) With ATS and Digital controller

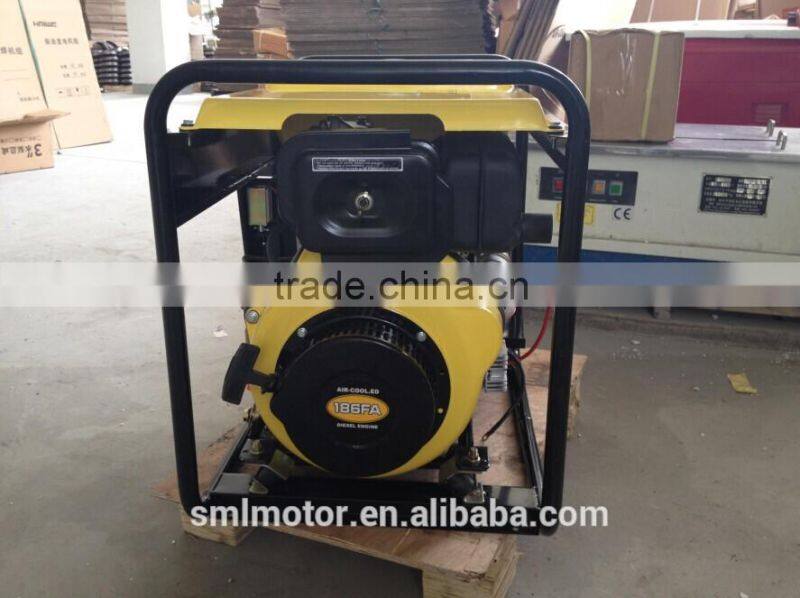

Small Open or Silent Diesel Generator Package
Diesel Generator Certificate:SONCAP,CE,COI,SGS,BV,EPA

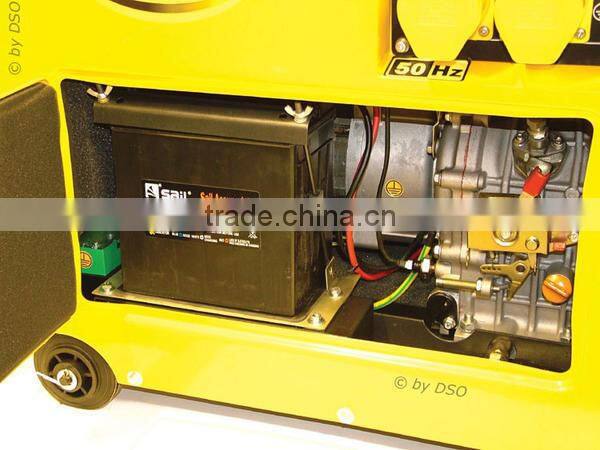

Diesel Generator Characteristics:
1. Powered by air-cooled 4-stroke diesel engine.
2. 12-volt DC auxiliary charging (car/boat battery).
3. Injection nozzle with electric control clique.
4. Low oil alert system shuts down the engine automatically.
5. Wheels for easy move.
6. Key operated ignition switch for the standard electric starter.
7. Standard equip with 24Ah dry battery
8. Hydraulic-Magnetic circuit breaker.
Diesel Generator,Gasoline Pump,Water Pump,Protable Genset,Moving Trailer generators,Generator Set ,Petrol Generator,AC Generator,ST STC Series
Silent Diesel Generator Accessories and open type diesel generator
1) Standard accessories:Standard 40 radiator mounted on skid,Common stell frame ,Circuit breaker ,damper ,exhaust silencer ,flexible pipe,battery and connecting wires ,standard tools kit ,operation manual and document
2) Optional accessories:Engine coolant and oil heater ,alternator space heater ,cooling for heat exchanger ,communication interface ,battery charger by main supply ,daily fuel tank ,ATS and paralleling system ,soundproof canopy and moving trailer .
Silent Diesel Generator Accessories and Producting Lines
diesel generator pre-sales service:
•We value every inquiry sent to us, ensure quick competitive offer within 12 hours.
•We cooperate with customer to design and develop the new products. with all necessary document.
•We are a sales team, with all technical support from engineer team.
diesel generator After sales service:
•We respect your feed back after receive the goods.
•We provide 12-24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We lodge your complain within 48hours.
