Diesel Generator Controller
Sample Order On Line : Please Click
DESCRIPTION

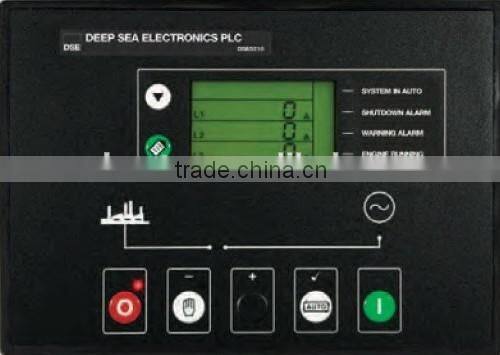

The DSE7220 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs. The DSE7220 will also monitor the mains (utility) supply.
FEATURE
- 4-Line back- lit LCD text display
- Five key menu navigation
- Front panel editing with PIN protection
- LED and LCD alarm indication
- Customisable status screens
- Power save mode
- 7 configurable inputs
- 8 configurable outputs
- Configurable timers and alarms
- 3 configurable maintenance alarms
- Multiple date and time scheduler
- Configurable event log (100)
- Control logic facilities
- Easy access diagnostic page
- CAN and Magnetic Pick-up/Alt. sensing
- Fuel usage monitor and low fuel alarms
- Charge alternator failure alarm
- Manual speed control (on compatible CAN engines)
- Manual fuel pump control
- Engine exerciser
- “Protections disabled” feature
- KW Overload protection
- Power monitoring (kW h, kV Ar, kV A h, kV Ar h)
- Load switching (load shedding and dummy load outputs)
- Automatic load transfer
- USB connectivity
- Backed-up real-time clock
- Fully configurable via DSE Configuration Suite PC software
- Configurable display languages
-
Remote SCADA monitoring via DSE Configuration Suite PC software
DSE5220 is an automatic mains failure control module designed to provide advanced
load share functionality for diesel and gas generating sets that include nonelectronic/
electronic engines. The module also provides excellent engine monitoring and protection
features. The module monitors the mains (utility) supply and upon detection of a loss in
power automatically starts the generating set.
Besides, we provide many other models of generator controllers
Module Type |
Models: |
|||
Deep Sea Generator Set Controller (LCD) |
DSE5110 |
DSE5120 |
DSE5220 |
|
Deep Sea Generator Set Controller (LED) |
DSE703 |
DSE704 |
||
|
Generator Set Controller (Key-Start) |
DSE702 |
BC168 |
DSE501K |
BC520A(DSE520K) |
Engine Control Module |
BC3000 |
|||
ATS Controller |
DSE705 |
|||
DSE5110 Auto Start Control Module
The DSE5110 is an Automatic Start ControlModule designed to automatically start and stop diesel
and gas generating sets that include non electronic engines. The module also provides excellent engine monitoring and protection features.
The module has the ability to monitor under speed, over speed, charge failure, emergency stop, low oil pressure, high engine temperature, fail to start, fail to stop and loss of the speed sensing signal. The module displays fault conditions on the LCD display and via the LED indicators on the front.
Main features
KEY FEATURES
• Automatic start
• Automatic load transfer
• Configurable inputs
• Configurable outputs
• Configurable alarms & timers
• Digital inputs
• Analogue inputs
• Back-lit character LCD display
• Engine protection
• Front panel mounting
• Icon based fault diagnostics
• PC configurable
• Front panel programming
• Remote monitoring
• LCD alarm indication
• LED alarm indication
KEY BENEFITS
• In-built engine diagnostics removes the requirement for service equipment
• License free PC software
• Modules help to improve the life cycle of engine starter motors
• On-site module configuration
• User-friendly set-up and button layout
Specification
DC SUPPLY
8V to 35V continuous
CRANKING DROPOUTS
Able to survive 0V for 50mS, providing the supply was at least 10V before dropout and supply
recovers to 5V
We also provide many other models of controllers as following:
DSE702; DSE704; DSE705
DSE5110; DSE5120; DSE5220
DSE501K; DSE520; BC168
