6 kw - 10 kw Lpg Genset Manufacturer

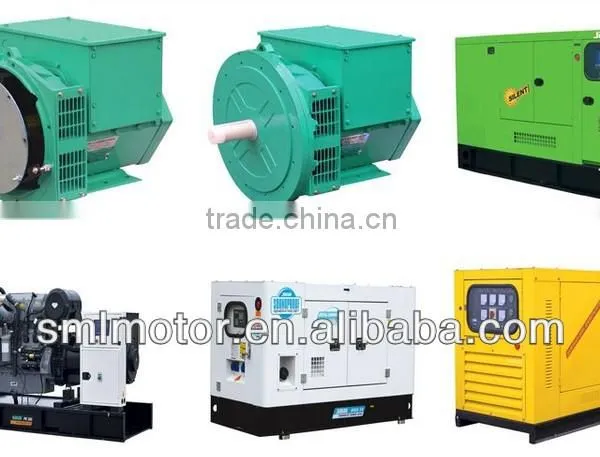

6 kw - 10 kw Lpg Genset Manufacturer thumbnail-1
6 kw - 10 kw Lpg Genset Manufacturer photo-1
US$ 1,999 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Deutz, Isuzu, Deutz
Model Number:
SMD, SMY
Contact Supplier Request Quote Chat Now
Fujian Saint Meilan Motor Wiring Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Sea Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Deutz, Isuzu, Deutz
Model Number SMD, SMY
Output Type AC Three Phase
Speed 1500RPM/1800RPM
Frequency 50/60HZ
Rated Power 20kva--1000kva
Rated Voltage 110V/240V, 220V/380V, 230V/400V, 240V/415V
Rated Current 25-2000A

Specifications

1.Digital
2.warranty
3.CE,ISO,SONCAP
4.Easy operating

Doosan Electric Power kw Generator Genset and chargers Manufacturer

6 kw - 10 kw lpg genset Manufacturer

UK Engine Type

GENSET

POWER(KVA/KW)

ENGINE MODEL

SIZEL×W×H

WEIGHTKg

SML007S

9/7

403D-11

1330×560×1270

403

SML010S

13/10

403D-15

1330×560×1270

400

SML016S

20/16

404D-22

1330×556×1270

460

SML024S

30/24

1103A-33G

1780×720×1370

800

SML036S

45/36

1103A-TG1

2150×750×1370

947

SML048S

60/48

1103A-TG2

2150×750×1370

965

SML052S

65/52

1104A-44TG1

2500×740×1550

1100

SML072S

90/72

1104C-44TG3

2500×740×1550

1180

SML080S

100/80

1104C-44TAG2

2500×740×1550

1260

SML108S

135/108

1106C-E66TAG2

2500×900×1460

1410

SML120S

150/120

1106C-E66TAG3

2500×900×1460

1415

SML140S

175/140

1106C-E66TAG4

2700×1010×1720

2020

SML182S

228/182

1306C-E87TAG4

2700×1010×1720

2080

SML200S

250/200

1306C-E87TAG6

2700×1010×1720

2140

SML240S

300/240

2306C-E14TAG1

3500×1150×2070

3244

SML280S

350/280

2306C-E14TAG2

3500×1150×2070

3310

SML320S

400/320

2306C-E14TAG3

3500×1150×2070

3310

SML364S

455/364

2506C-E15TAG1

4000×1126×2200

3800

SML400S

500/400

2506C-E15TAG2

4000×1128×2197

3946

SML440S

550/440

2806A-E18TAG1

3877×1150×2200

3950

SML500S

625/500

2806A-E18TAG2

3900×1470×2198

4707

SML580S

725/580

4006-23TAG2A

4296×1915×2287

6060

 Engine Made in UK

6 kw - 10 kw lpg genset Manufacturer

6 kw - 10 kw lpg genset Manufacturer

  6 kw - 10 kw lpg genset Manufacturer





Generator set

Genset Model

SML220

Rating Power (KW/KVA)

200/250

Standby Power(KW/KVA)

220/275

rating Ammeter(A)

360



Diesel Engine

Engine Model

P126TI

Prime Power(KW)

241

Standby Power(KW)

272

Bore X Stroke (mm)

123X155

number of Cylinder & Configuration

6 in line

Displacement(l)

11.1

Compression Ratio

17:1

Aspiration Type

Turbocharged & After-cooled

Max. intake depression(mmH2O)

220

Combustion air Volume(m³/min)

16.4

Max. Exhaust back Pressure(mmH2O)

600

Exhaust Gas Flow(m³/min)

42.9

Max. Exhaust Gas Temperature(°C)

480

Cooling Type

Water cooled with Radiator

Fan cooling air flow(m³/min)

295

Engine Coolant capacity(l)

19

Max. temperature of coolant(°C)

100

Max. permissible oil temp.(°C)

120

Total oil capacity(l)

23

Rating Fuel Consumption(l/h)

53

Governing Type

Electrics Governor



Alternator

Rating Voltage(V)

400/230

Alternator Model

MP-200-4

Rating Capacity(KW/KVA)

200/250

Eff.%

92.1%

Power Factor

0.8 lagged

Exciting type

Brushless self-exciter, AVR

Voltage regulation

±1%

No. of  Phase

3 phase 4 wire

Enclosure Class

IP21

Class of Insulation

H

Control Panel

Control Module

GCS6410 AMF Module

Battery

Rating Capacity(AH)

2X150AH 12V

Dimension

Generator set dimension(LXWXH)

(mm)

2850×1050×1470

Weight

Weight (kg)

2200


   Silent Type with Four Wheels

 Voltage as your requirement 220V-440V

 Diesel generator from 3kw to 1200kw

 6 kw - 10 kw lpg genset Manufacturer

6 kw - 10 kw lpg genset Manufacturer

6 kw - 10 kw lpg genset ManufacturerVery Quiet Low Noise
