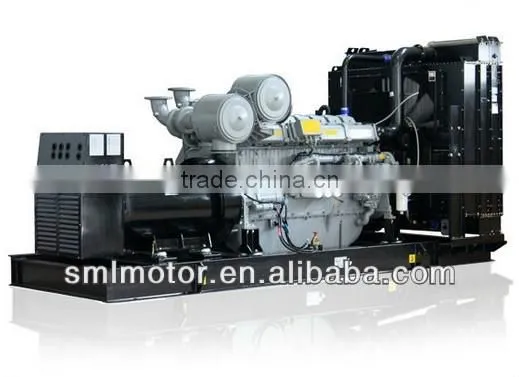

Diesel Hfo Genset Deutz 150kva Manufacturer

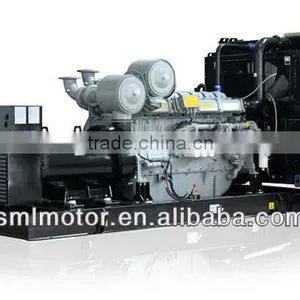

Diesel Hfo Genset Deutz 150kva Manufacturer thumbnail-1
Diesel Hfo Genset Deutz 150kva Manufacturer photo-1
US$ 1,999.01 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Deutz, Isuzu, Deutz
Model Number:
SMD, SMY
Contact Supplier Request Quote Chat Now
Fujian Saint Meilan Motor Wiring Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Sea Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Deutz, Isuzu, Deutz
Model Number SMD, SMY
Output Type AC Three Phase
Speed 1500RPM/1800RPM
Frequency 50/60HZ
Rated Power 20kva--1000kva
Rated Voltage 110V/240V, 220V/380V, 230V/400V, 240V/415V
Rated Current 25-2000A

Specifications

1.Digital
2.warranty
3.CE,ISO,SONCAP
4.Easy operating

Doosan Electric Power kw Generator Genset and chargers Manufacturer

diesel Hfo genset deutz 150kva Manufacturer

UK Engine Type

GENSET

POWER(KVA/KW)

ENGINE MODEL

SIZEL×W×H

WEIGHTKg

SML007S

9/7

403D-11

1330×560×1270

403

SML010S

13/10

403D-15

1330×560×1270

400

SML016S

20/16

404D-22

1330×556×1270

460

SML024S

30/24

1103A-33G

1780×720×1370

800

SML036S

45/36

1103A-TG1

2150×750×1370

947

SML048S

60/48

1103A-TG2

2150×750×1370

965

SML052S

65/52

1104A-44TG1

2500×740×1550

1100

SML072S

90/72

1104C-44TG3

2500×740×1550

1180

SML080S

100/80

1104C-44TAG2

2500×740×1550

1260

SML108S

135/108

1106C-E66TAG2

2500×900×1460

1410

SML120S

150/120

1106C-E66TAG3

2500×900×1460

1415

SML140S

175/140

1106C-E66TAG4

2700×1010×1720

2020

SML182S

228/182

1306C-E87TAG4

2700×1010×1720

2080

SML200S

250/200

1306C-E87TAG6

2700×1010×1720

2140

SML240S

300/240

2306C-E14TAG1

3500×1150×2070

3244

SML280S

350/280

2306C-E14TAG2

3500×1150×2070

3310

SML320S

400/320

2306C-E14TAG3

3500×1150×2070

3310

SML364S

455/364

2506C-E15TAG1

4000×1126×2200

3800

SML400S

500/400

2506C-E15TAG2

4000×1128×2197

3946

SML440S

550/440

2806A-E18TAG1

3877×1150×2200

3950

SML500S

625/500

2806A-E18TAG2

3900×1470×2198

4707

SML580S

725/580

4006-23TAG2A

4296×1915×2287

6060

 Engine Made in UK

diesel Hfo genset deutz 150kva Manufacturer

diesel Hfo genset deutz 150kva Manufacturer

  diesel Hfo genset deutz 150kva Manufacturer





Generator set

Genset Model

SML220

Rating Power (KW/KVA)

200/250

Standby Power(KW/KVA)

220/275

rating Ammeter(A)

360



Diesel Engine

Engine Model

P126TI

Prime Power(KW)

241

Standby Power(KW)

272

Bore X Stroke (mm)

123X155

number of Cylinder & Configuration

6 in line

Displacement(l)

11.1

Compression Ratio

17:1

Aspiration Type

Turbocharged & After-cooled

Max. intake depression(mmH2O)

220

Combustion air Volume(m³/min)

16.4

Max. Exhaust back Pressure(mmH2O)

600

Exhaust Gas Flow(m³/min)

42.9

Max. Exhaust Gas Temperature(°C)

480

Cooling Type

Water cooled with Radiator

Fan cooling air flow(m³/min)

295

Engine Coolant capacity(l)

19

Max. temperature of coolant(°C)

100

Max. permissible oil temp.(°C)

120

Total oil capacity(l)

23

Rating Fuel Consumption(l/h)

53

Governing Type

Electrics Governor



Alternator

Rating Voltage(V)

400/230

Alternator Model

MP-200-4

Rating Capacity(KW/KVA)

200/250

Eff.%

92.1%

Power Factor

0.8 lagged

Exciting type

Brushless self-exciter, AVR

Voltage regulation

±1%

No. of  Phase

3 phase 4 wire

Enclosure Class

IP21

Class of Insulation

H

Control Panel

Control Module

GCS6410 AMF Module

Battery

Rating Capacity(AH)

2X150AH 12V

Dimension

Generator set dimension(LXWXH)

(mm)

2850×1050×1470

Weight

Weight (kg)

2200


   Silent Type with Four Wheels

 Voltage as your requirement 220V-440V

 Diesel generator from 3kw to 1200kw

 diesel Hfo genset deutz 150kva Manufacturer

diesel Hfo genset deutz 150kva Manufacturer

diesel Hfo genset deutz 150kva ManufacturerVery Quiet Low Noise
