8x8 DC5V 64 pcs Individually addressable RGB led matrix

8*8 DC5V 64 pcs Individually addressable RGB led matrix

Features and specifications:

• Individually addressable RGB LEDs (8*8 LEDs)
• 24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel
• Additional color-independent brightness control (5-bit PWM); 32 brightness steps per pixel
• SPI control interface
• 5 V operating voltage
• Each LED Matrix draws approximately 8A at full brightness

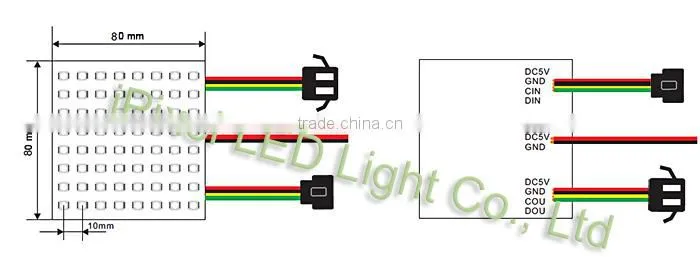

• 80 mm width (8 LEDs) or 80 mm width (8LEDs) Pitch : P10
• Flexible,bendable IP20 rating
• Black strip color
• Power/data connectors on both strip ends for easy chaining

There's a new square design LED matrix in iPixel LED!

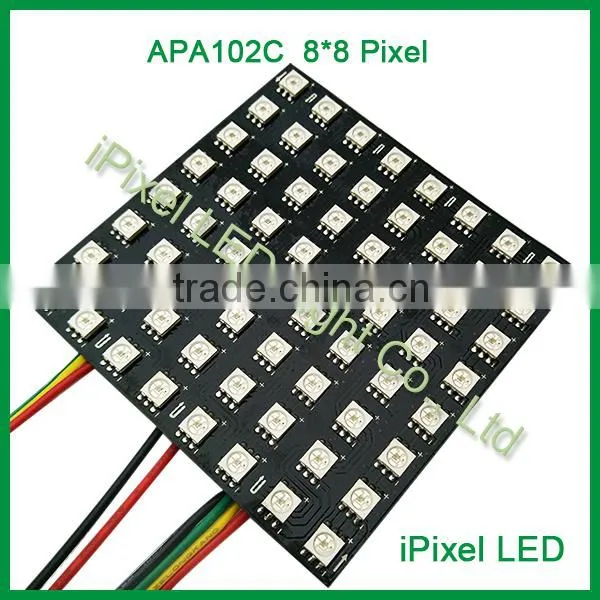

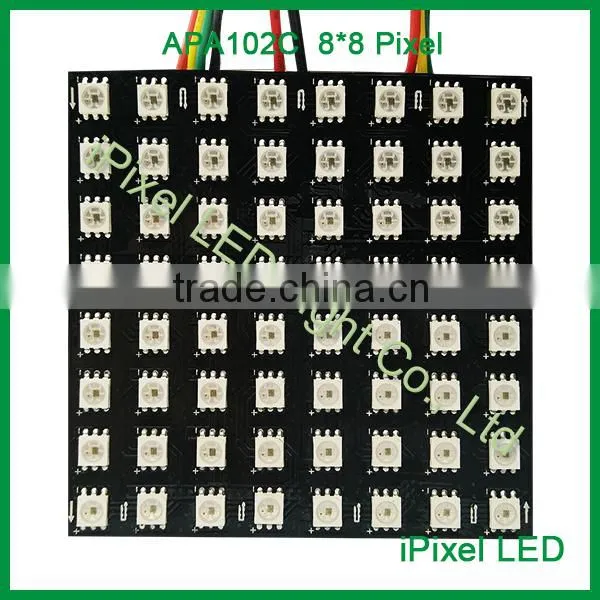

8*8 Pixel APA102C LEDs
use a 2-wire SPI,it can push data much faster than with the WS2812B 800 KHz protocol and there's

no specific timing required. it's also have much higher PWM refresh rates.

This SMD 5050 LEDs is GRB color sequence ,not RGB sequence !!!
with an embedded microcontroller inside the LED. You can set the color/brightness of each LED to

24-bit color (8 bits each red green and blue). Each LED acts like a shift register, reading incoming

color data on the input pins, and then shifting the previous color data out on the output pin. By sending

a long string of data, you can control an unlimited LEDs

These LEDs have 2 wires (input and output) for clock and one data pin.
Because the clock and data is seperated, you can use any microcontroller or microprocessor, including

Arduino, Raspberry Pi, BeagleBone, Propeller to control it
PWM rate. You only have to set the 24-bit color data for each pixel LED once, and then the LED+built-in

-chip will handle the PWMing of the red, green and blue.
On our WS2812B Matrix, this PWM rate happens 400 Hz, which works well but is noticably at lower brightnesses

and if the strip is moving in any way.
have a 20 KHz PWM rate, even if you set any color or animation, there is no pixelation

The Matrix is made of flexible PCB material,Non-waterproof ,for indoor use only, 1 Ounce copper PCB and

black color you can also connect each matrix to together to make them as large as a P10 LED screen, make

sure gave them enough Power , each matrix 64 pcs LEDs request about 2A.
These matrix comes in 1pcs per bag, on the back side, soldered a pair of 4-pin JST SM connector, it's makes

easy to link to next matrix
