Banding Strip 5050 Rgb Led Strip Waterproof Strip Ip65 Led Light

Banding Strip 5050 Rgb Led Strip Waterproof Strip Ip65 Led Light thumbnail-1
Banding Strip 5050 Rgb Led Strip Waterproof Strip Ip65 Led Light thumbnail-2
Banding Strip 5050 Rgb Led Strip Waterproof Strip Ip65 Led Light thumbnail-3
Banding Strip 5050 Rgb Led Strip Waterproof Strip Ip65 Led Light thumbnail-4
Banding Strip 5050 Rgb Led Strip Waterproof Strip Ip65 Led Light thumbnail-5
Banding Strip 5050 Rgb Led Strip Waterproof Strip Ip65 Led Light photo-1
Banding Strip 5050 Rgb Led Strip Waterproof Strip Ip65 Led Light photo-2
Banding Strip 5050 Rgb Led Strip Waterproof Strip Ip65 Led Light photo-3
Banding Strip 5050 Rgb Led Strip Waterproof Strip Ip65 Led Light photo-4
Banding Strip 5050 Rgb Led Strip Waterproof Strip Ip65 Led Light photo-5
US$ 3.2 - 4.5 MOQ: 1 Roll
Key Specifications
Get Latest Price
LED Light Source:
Epistar Smd5050
Type:
Flex LED Strips
Input Voltage(V):
DC12V/24V
Contact Supplier Request Quote Chat Now
Shenzhen IPixel LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar Smd5050
Type Flex LED Strips
Input Voltage(V) DC12V/24V
Lamp Power 14.4W/M
Lamp Luminous Flux(lm) R:500; G:1400; B: 400
Color Temperature(CCT) RGB
Working Temperature(℃) -30, 60
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CE
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name iPixel LED
Model Number S605050RGB

banding strip 5050 rgb led strip waterproof strip ip65 led light

Product Description

1. This flexible LED strip soldered 60 pcs SMD 5050 LED lamp

2. Flexible PCB: White, PCB Width 10mm.Cutable each set of LED: 3 LED or 6 LED

3. Waterproof version, Silicon Tube coating: W14* H4 mm
4. Both 12V / 24V available,constant voltage operation
5. Voltage drop from start to end of 5 M ± 2V.
6. Each end soldered a 2 Pin bare wire 20AWG at 15cm length
7. Standard size 5M in a reel, customizable of length

Product Name

SMD5050 RGB flexible led strip

Model Number

S605050RGB

LED Chip

5050 R, G, B

LED Qty

60LEDs/m

PCB Color

White PCB

PCB Width

10mm

Voltage

DC12V,DC24V

Watts

14.4W/M

IP Rate

IP20, IP65(Silicon-tube waterproof)

Cutted

12V, 3LEDs/group; 24V, 6LEDs/group

Standard Reel Length

5meter/roll, also can be customized

Operating Temperature

-30 ~ +60 °C

Storage Temperature

-40 ~ +80 °C

Beam Angle

140
Detailed Images

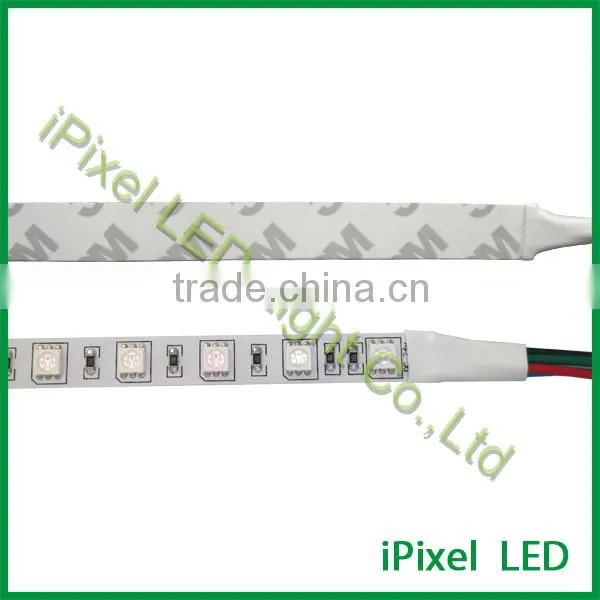

 IP20 5050 RGB led strip

banding strip 5050 rgb led strip waterproof strip ip65 led light

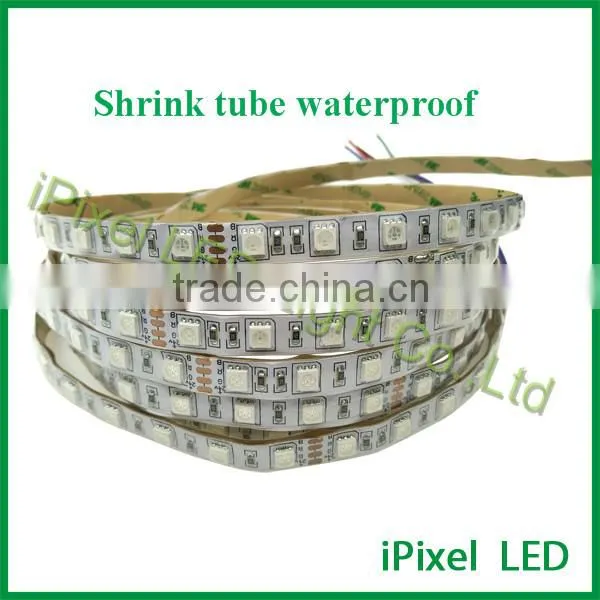

IP65 5050 RGB led strip

banding strip 5050 rgb led strip waterproof strip ip65 led lightbanding strip 5050 rgb led strip waterproof strip ip65 led light

banding strip 5050 rgb led strip waterproof strip ip65 led light



Related Products

5050 RGBW led strip 4 in one chip

banding strip 5050 rgb led strip waterproof strip ip65 led light



RGB/RGBW rf led controller

banding strip 5050 rgb led strip waterproof strip ip65 led light



Meanwell 350W 24V led power supply

banding strip 5050 rgb led strip waterproof strip ip65 led light



Connection Map

SPI signal: LED Strip+LED power supply +LED controller

DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...

(offline / PC online)

LED power suppply: Meanwell power supply, T- series, A- series power supply...

(waterproof / non-waterproof)
