Ws2812b Flex Rgb Led Active Band Strip With 60 Leds/m

Ws2812b Flex Rgb Led Active Band Strip With 60 Leds/m thumbnail-1
Ws2812b Flex Rgb Led Active Band Strip With 60 Leds/m photo-1
US$ 7.2 - 9.5 MOQ: 1 Roll
Key Specifications
Get Latest Price
LED Light Source:
Epistar 5050
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Contact Supplier Request Quote Chat Now
Shenzhen IPixel LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar 5050
Type Flex LED Strips
Input Voltage(V) DC5V
Lamp Power 14.4W/M
Lamp Luminous Flux(lm) 18lm
Color Temperature(CCT) full color
Working Temperature(℃) -10, 40
Working Lifetime(Hour) 50000
Lamp Body Material PVC
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name iPixel LED
Model Number S602812B, S602812B

ws2812 b flex rgb led active band strip with 60 leds/m

About Products

1- Addressable full color led strips(ws2812b) ——WS2811 IC built-in 5050 RGB LED chip.

2- Individually control —— 1IC & ILED chip.

3- Standard Reel Lengt: 5meter/roll, also can be customized.

4- Cutted: 1 integrated RGB LEDs per segment, can be cutted per 1LED.

5- Sticky: with 3M adhesive on back side for sticky.

          screw+silicon clip, or 3M adhesive back side.

6- Type: waterproof--white pcb ;  non-waterproof--white pcb;

             waterproof--black pcb ;   non-waterproof--black pcb

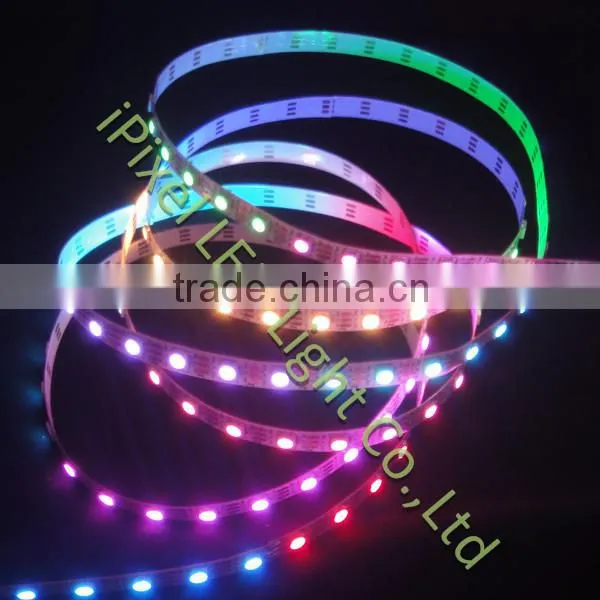

Detail Pictures

WS2812B 60leds/m addressable led strip  — — White PCB, non-waterproof IP20

ws2812b flex rgb led active band strip with 60 leds/m



WS2812B 60leds/m addressable led strip  — — White PCB, full silicon waterproof IP65

ws2812b flex rgb led active band strip with 60 leds/m

WS2812B 60leds/m addressable led strip  — — Black PCB, full silicon waterproof IP65

ws2812b flex rgb led active band strip with 60 leds/mws2812b flex rgb led active band strip with 60 leds/m



Showing picture:

ws2812b flex rgb led active band strip with 60 leds/mws2812b flex rgb led active band strip with 60 leds/m





Specification
Product Name 60pcs WS2812B led strip
Model Number S602812b
Size(mm) 5000*10mm
Led Qty 60leds per meter
Voltage(V) DC5V
Power 14.4W/M
IC Chip  WS2811 IC built in 5050 RGB LED
IP Rate IP20 ,IP65 (Full silicon waterproof)
PCB Color White, Black
PCB Width 10mm
LED Singal SPI
View Angle 140°
Connector 3PIN JST female and male connectors
Warranty 2 years



Comparation:ws2812b 30leds/m,60eds/m,144leds/m



Model Number S302812B S602812B S1442812B
IC WS2812B WS2812B WS2812B
PCB Width 10mm 10mm 12mm
PCB Color white,black white,black white,black
Voltage DC5V DC5V DC5V
Wattage 7.2W/M 14.4W/M 34.56W/M
IP Rate IP20,IP65 IP20,IP65 IP20,IP65
Standard Length 5 meters/roll 5 meters/roll 1 meter/roll



Outline Dimension

 ws2812b flex rgb led active band strip with 60 leds/m

Application

- The excellent light and user-friendly designs make LED strip perfect for numerous applications, i.e cove

  lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path

  and contour marking; etc.

- They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,

   various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.

- Amusement rgb pixel led point light lunapark ferry fairground ride
