Home > Products > Aluminum Window Making Machine > Aluminum Double Head Cutting Saw Machine For Sale
Aluminum Double Head Cutting Saw Machine For Sale
- 80 Set / Sets per Month
- Qingdao
- T/T Credit Card
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Stainless Steel Double Kitchen Sink Middle Weld Seam Rolling Machine
- Stainless steel handmade sink hydraulic power of light direct press
- Stainless steel handmade sink R corner press machine Electrical box R corner press machine
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
Product Details
Place of Origin: | Shandong, China | Brand Name: | SOLTERRA | Model Number: | LJZ2-500x4200 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High Efficiency Aluminum Double Head Cutting Saw LJZ2-500x4200
This Machine is popular for cutting aluminum window profile
Product Details:
Features:
1. Used for cutting aluminum for doors and windows, curtain wall etc
2. The feeding system adopts the imported linear guide pair, with high accuracy and stability
3. Right head feeding adopts high helical pitch ball screw-lead motion, with high accurate driving, locating and smooth working
4. Two saw heads are adjustable and cut the profiles in 45°, 90° freely
5. Imported carbide saw blade features accurate processing and high endurance
6. Imported linear guiding pair ensures steady processing accuracy
7. Saw blade rotates smoothly due to high accuracy main spindle
8. Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder
9. Auto-opening shield makes the operation more safety
10. Middle auto-induction profile supporter and following profile supporter made the loading and clamping convenient
Main Specification and Technical Parameter
Power supply | 380V 50Hz |
Saw motor power | 2*2.2KW |
Rotary speed | 2800r/min |
Air pressure | 0.5MPa-0.8MPa |
Air consumption | 60L/min |
Cutting length | max 4200mm min 375mm |
Cutting width | max 135mm |
Cutting height | 90° :max 300mm 45°: max200mm |
Cutting angle | 90° 45° 67.5°(optional) |
Cutting speed | stepless speed regulation 0-3m/min |
Blade specification | Φ500*4.4*Φ30,Z=120 |
Repeat locating length | ≤0.2mm |
Cutting profile surface plane | ≤0.10mm |
Cutting angle tolerance | ±5' |
Cutting profile surface roughness | Ra12.5μm |
Overall dimension | 5500*1750*1950mm |
Weight | About 1850 kg |

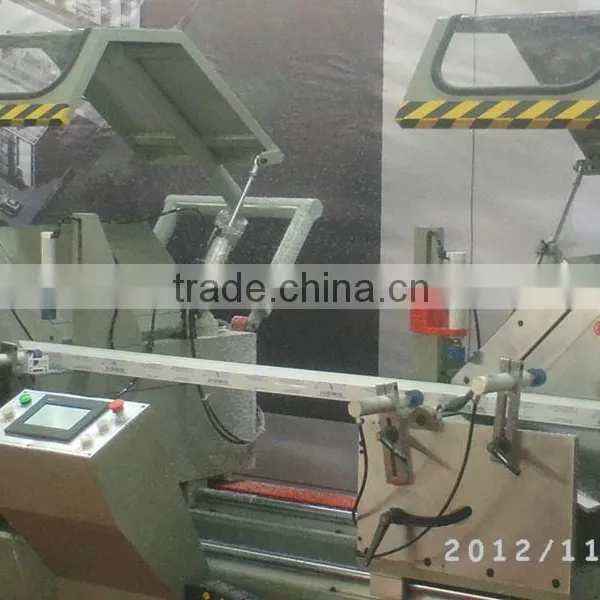

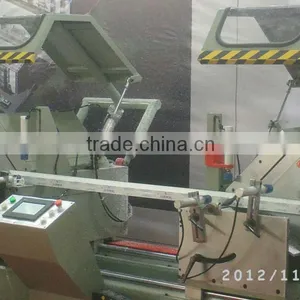

Machine Images
Auminum window processing equipments
We will use high standard export wooden case for the long-term shipping, also customers' specific requirement can be available.
Liaoyuan Machine established in the 1990s. Liaoyuan Machine is located in Jinan city of China, originally started to make pvc/aluminum window & door machine from 1991 year. We are the only one chinese company who enjoy the capacity from spare parts casting, machine design, technology innovation and machine assembling, which are totally achieved at your factory.
In more than 20 years of development, Liaoyuan Machine has energetically explored the resource development space to realize rapid development. Nowadays, Liaoyuan Machine has been developed into a large machine tool production enterprise with a land area of four hectares, a workshop area of 15,000 square meters, more than 350 employees, more than 100 sets of professional production equipment and annual designing and production ability of more than 700 sets of machine tools. In 1998, Liaoyuan Machine was granted the authorized import & export license by the Commission of Foreign Trade and Economic Cooperation of China
Jinan Liaoyuan Machine Co.,Ltd Attend Annual Exhibition
With Fully ISO9001 Approved, For more information about the certificate,please
feel free to contact me!!
Contact Information:
Question 1. Are you a Manufacturer or a trading company?
Answer 1. We are not a trading company,We are the top Machine Manufacturer,Which involves Raw materail casting,Machine body processing,Machine assembling,Painting,Machine quality Inspecting and etc.
Q 2. What is the minimum quantity for order ?
A2: Normaly One Set. and We will give some discounts if you can buy one complete set of Machine.
Q3. Do you have stock product ready to deliver?
A 3. We have many machines in stock, So We can guarantee the fast delivery time and make sure you can check the machine on LIVE-DEMONSTRATION at any time.
Q4. How do you deliver the finished products?
A 4, For FCL, We delivered by Sea
For LCL, We delivered by Sea and by Plane for only urgent requirement
For Spare Parts,We delivered by Courier,TNT, FEDEX,DHL,UPS,EMS, and Etc.
Q5,How can you guarantee the after-sales service?
A 5, We have a first-class engineers for the machine installation, tranining, and after-sales, we also have branch office in ovesea to keep the good after-sales service,They have a professional work team with exquisite experience.
Q6, What's delivery time for the machines.
A 6, We will arrange the shipment within 16 days after receiving the payment.
Q7, Do you inspect the finished products?
A7, Yes, Each step of production products will be camed out inspection by QC department before shipping.
Q8, Which Model is suitable for my requirement?
A8,Please share with us the Max Cutting length of profile, and then We will recommedn suitable model for you
Contact Us
- Jinan Liaoyuan Machine Co., Ltd.
- Contact nameTom Ma
- Phone0086-531-55562077
- AddressNo. 1996, Huanggang Road, Tianqiao Dist.
