Aluminum Alloy Doors and Windows V Notching Cutting Saw Machine For Sale
This Machine is popular for processing aluminum window and curtain walls
1.Automatic V notching saw for aluminum windows
2.V Notching Machine for Aluminum curtain walls
3.High quality, Fair Price, Fast Delivery.
4.OEM Service, Trail Order
5.The Color, The logo, The package according to your request,
6.We are the Manufacturer,We have many engineers for the solutions for the new market to keep the trend of the world.
| Name | Aluminum Alloy Doors and Windows V Notching Cutting Saw Machine |
| Model | LJK-500 |
| Brand | SOLTERRA |
| Certificates | ISO9001,SGS |
| Warranty | The Warranty time is one year, Engineers available to the service |
| Delivery time | Within 20 working days after receiving the advanced payment |
| Package | High Quality Standard Wooden case |
| Payment terms | T/T,L/C,Western Union |
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company for Aluminum win-doors and curtain wall.
Product Details:
Super quality! Lowest price!! Best service!!!
As a Manufaturer, We are looking forward to finding the agents of our products all over the world!!
Equipment Features:
1. This is the new machine designed for the aluminum curtain-wall and lighting skylight processing with the special angle at the profile end surface
2. Equipped with magnetic ruler control system, realized cutting angle and worktable height digital display
3. Convenient worktable and locating device adjustment, can achieve special end surface angle processing
4. The blade saw can swing between -45°--+45°
Technical parameter:
Power supply |
380V/50Hz |
Cutting motor power |
2×2.2KW |
Motor rotary speed |
2800r/min |
Air pressure |
0.5-0.8Mpa |
Air consumption |
60L/min |
Saw blade swing range |
-45º-- +45º |
Cutting depth |
150mm |
Cutting feeding speed stepless speed regulation |
0-3m/min |
Overall dimension |
3140mm×1380mm×1800mm |
Saw blade specification |
Φ500mm×4.4mm×Φ30mm Z=120 |
Weight |
1500kg |

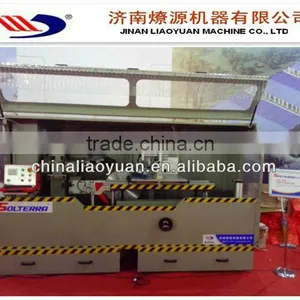

Machine Images
