Aluminum Windows Corner Key Crimping Machine
- 50 Set / Sets per Month
- Qingdao port
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | SOLTERRA | Model Number: | LZJ-120 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. Aluminum Windows Corner Key Crimping Machine2.Single head or CNC four head crimping
3.Oversea service office
4.ISO SGS

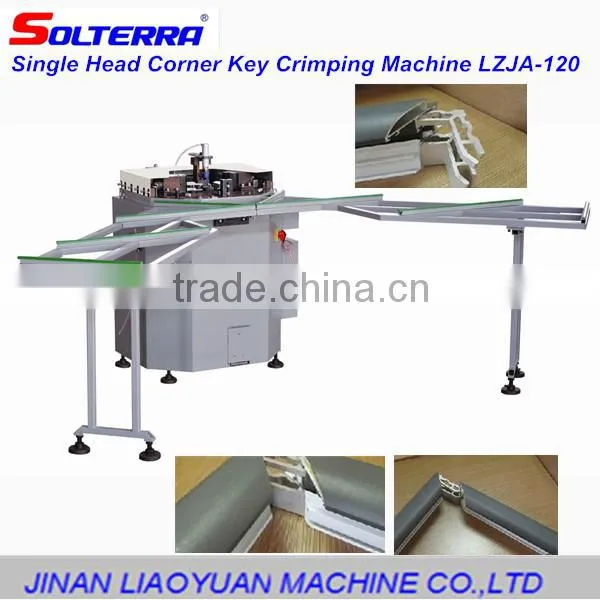

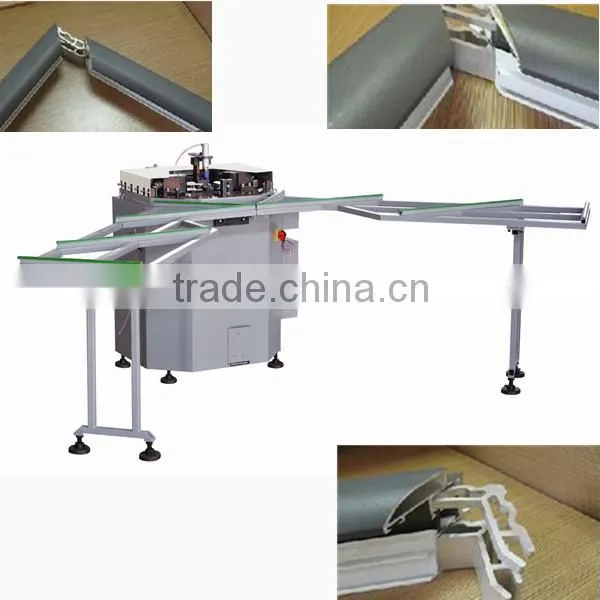

Aluminum Windows Corner Key Crimping Machine LZJA-120
Function:
Designed for 90 degrees corner joining of aluminum profiles with hydraulic system, pneumatic clamping system with a maximum pressing force of 48KN.
Equipment Features:
→ Designed for 90 degrees corner joining of aluminum profiles with hydraulic system, pneumatic clamping system with a maximum pressing force of 48KN.
→ Clamping is pneumatic, crimping tool movement is hyraulic.
→ Operated by foot pedal for pneumatic clamps and profile pressing
→ Easy machine adjustment due to the synchronous feeding device
→ Automatic centering of profile is achieved with pneumatically operated profile centering set square and eccentric leaner.
Main Technical Parameter:
Power supply | 380V 50Hz |
Main input power | 1.1KW |
Rated oil pump pressure | 16MPa |
Motor rotation speed | 1400r/min |
Profile processing height | Max.120mm |
Profile processing width | 90mm |
Total air pressure | 0.5~0.8Mpa |
Air consumption | 2L/min |
Total crimping pressure | 48KN |
Adjustable range of positioning | 70mm |
Overall dimension | 1000x1200x1200mm |
Weight | 350KG |

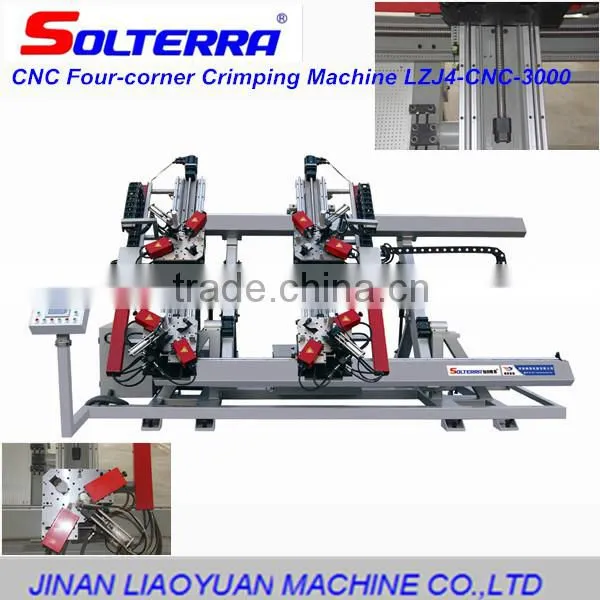

Aluminum Windows CNC Four Corner Key Crimping Machine LZJ4-CNC-3000
Equipment Features:
1. Used for corner punching combination of aluminum windows and doors, four corners combination at one time
2. Clamping device can auto move forward / backward, make the operation be more convenient
3. The frame is specially jointed by steel with high quality and special processed
4. Imported CNC system, features high quality, high speed and accuracy.
5. The movement control function of the servo system can auto-press the four corners, ensuring the processing effect.
6. The corner-crimping blade can be adjusted according to the requirement of different profiles
7. One time corner crimping can control seam and plane, makes the quality foresight
8. The seamless connection of control system and servo system, greatly improved the accuracy
Main specification and Technical Parameter:
Voltage | 380V/220V |
Rating power | 7.5kW |
Rating oil pressure | 15MPa |
Air consumption pressure | 0.5-0.8MPa |
Air consumption | 0.45Lonce |
Capability of oil box | 60L |
Corner crimping casting movement distance | 0-50mm |
Max frame dimension | 1800mm×3000mm |
Min frame dimension | 480mm×480mm |
Profile width | 93mm |
Tolerance of diagonal | ≤1mm |
Tolerance of connection seam | ≤0.15mm |
Overall dimension | 4700×2200×2500mm |
Weight | 2500kg |
