Multi Heads Copy Router for Aluminum Windows/ Curtain Wall
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Solterra
Model Number:
LXFF2-1900*125
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Windows Corner Key Crimping MachineUS$ 2,500 - 30,000MOQ: 1 Set -
Aluminum CNC Four Head Corner Crimping MachineNegotiableMOQ: 1 Set
-
Aluminium Window Profile Double Head Cutting Saw MachineUS$ 4,200 - 9,500MOQ: 1 Set
-
Aluminum Windows Machinery V Notching Cutting Saw MachineNegotiableMOQ: 1 Set
-
Aluminum Curtain Walls Multi Head Drilling Machine for SaleUS$ 1 - 13,500MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Solterra
Model Number
LXFF2-1900*125
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Aluminum windows copy router machine2.efficiency and convenient operation.
3.ISO and CE certificate
4.One year warranty
Aluminum Windows Machine --LXFF2-1900x 125 Multi Spindle Copy Routers
1. Features:
It is used for processing all kinds of holes, grooves and water-slots on aluminum and PVC profiles. It has the features of compact structure, nice design and the air pressure drives large horizontal shift range, the clamping of the profile. The easy copy-routing plate replacement, large useful scope, high efficiency and convenient operation achieve the continuous processing and safe operation. The horizontal and vertical milling heads can finish
the milling in two directions at one time.
2. Main Specification and Technical Parameter
| Air pressure | 0.5--0.8Mpa |
| Air consumption | 20L/min |
| Input power | 2.2kw |
| Voltage | 380v/220v 50hz |
| Spindle rational speed | 0-12000r/min |
| Copy-routing range | 1900*125mm |
| Processing roughness | Ral12.5um |
| Profile section |
UP230*150-210
|
| Overall dimension | 3300*1400*1700mm |
| Weight | 400kg |

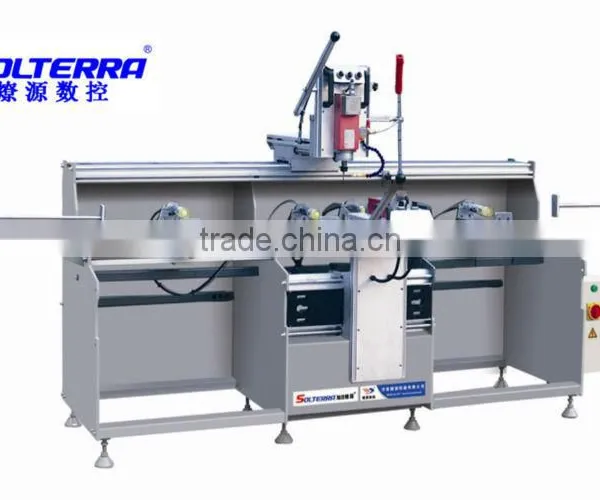

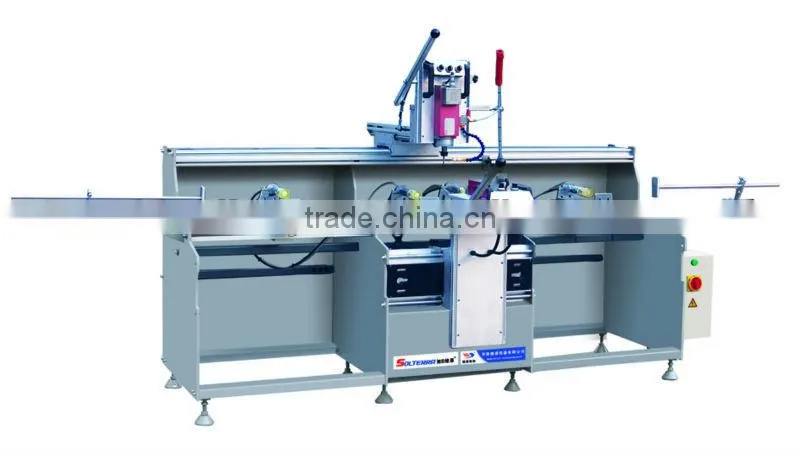

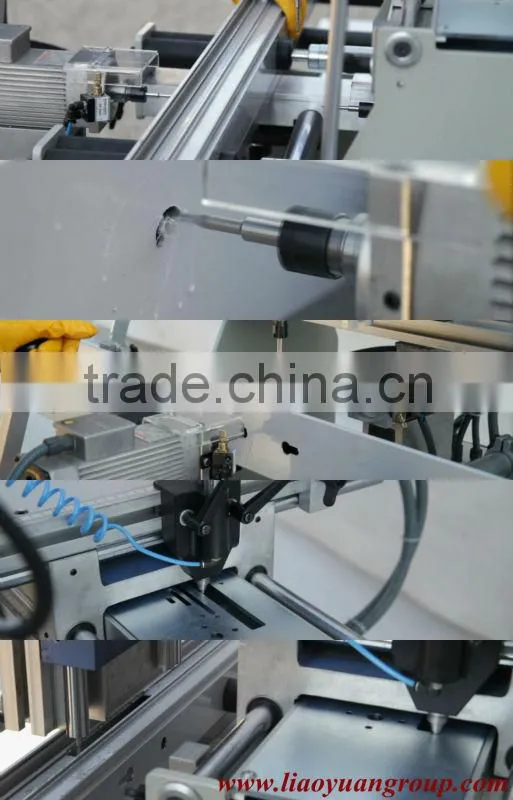

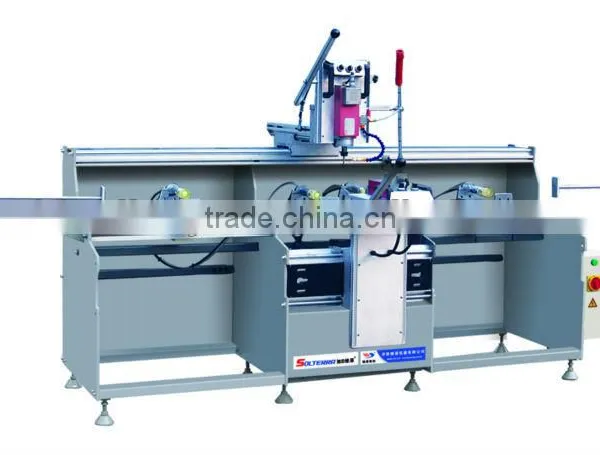

3. The picture of the machine
4. Company profile:
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2001
Factory Size
10,000-30,000 square meters
Total Employees
101 - 200 People
