Aluminum Window and Door Making Machine-CNC Double Head Precision Cutting Saw

Aluminum Window and Door Making Machine-CNC Double Head Precision Cutting Saw thumbnail-1
Aluminum Window and Door Making Machine-CNC Double Head Precision Cutting Saw thumbnail-2
Aluminum Window and Door Making Machine-CNC Double Head Precision Cutting Saw thumbnail-3
Aluminum Window and Door Making Machine-CNC Double Head Precision Cutting Saw thumbnail-4
Aluminum Window and Door Making Machine-CNC Double Head Precision Cutting Saw thumbnail-5
Aluminum Window and Door Making Machine-CNC Double Head Precision Cutting Saw photo-1
Aluminum Window and Door Making Machine-CNC Double Head Precision Cutting Saw photo-2

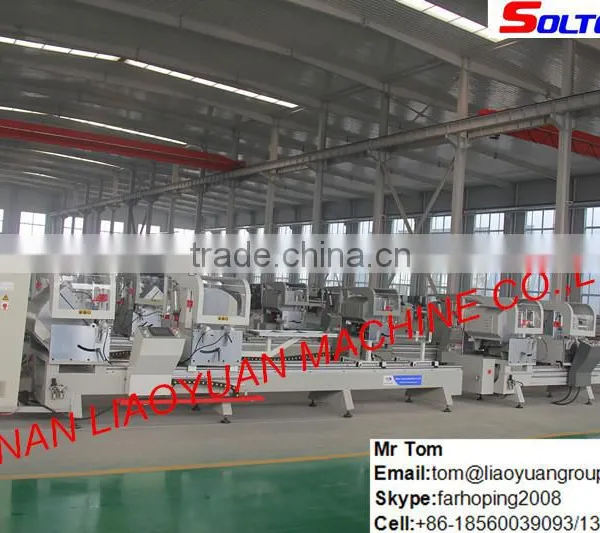

Aluminum Window and Door Making Machine-CNC Double Head Precision Cutting Saw photo-3
Aluminum Window and Door Making Machine-CNC Double Head Precision Cutting Saw photo-4
Aluminum Window and Door Making Machine-CNC Double Head Precision Cutting Saw photo-5
US$ 6,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, electric motor saw
Application:
aluminum profile
Contact Supplier Request Quote Chat Now
Jinan Liaoyuan Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, electric motor saw
Application aluminum profile
Place of Origin Shandong, China
Brand Name Solterra
Model Number LJZ2A-500x6000
No-Load Rotational Speed 2800r/mim
Saw Blade Diameter 500mm
Max. Cutting Depth 230mm
Dimensions 6800*1500*2040
Voltage 380v
Power(W) 4400
Certification SGS ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Aluminum window and door making machine
2.CNC double head cutthing saw
3) Since 1991
4)SGS,ISO
5)12 month warranty

 Aluminum Wndow and Door Making Machine-CNC Double head Precision Cutting Saw





Aluminum window and door making machine-CNC Double head Precision Cutting Saw



Features and Functions:
1.. The machine is the most advanced double-head cutting saw
2. The machine adopts Europe model with neat appearance and good style
3. The control system adopts the new closed-loop system
4. The directly connection blades adopt lever-swing cutting type
5. The feeding of the blade is driven by hydraulic damping cylinder, with smooth cutting
6. The imported high precision blade makes the cutting surface more smooth
7. The cutting angle is auto adjustable through the imported servo motor between 45°-157.5
8. Several profile processing dimensions can be input in one time and make continuous cutting
9. The processing dimension can be directly input, the cutting length can be changed without returning the reference point
10. The right cutting head is driven by the imported servo motor, features high speed and precision
11. The airproof device under the worktable has wonderful crumbs-cleaning effect
12. The following saw cover keeps it working in the clean environment
13. The stuff following-up supporter can reduce the machine space
14. The profile was clamped by two cylinder in every head, and kept the cutting security.

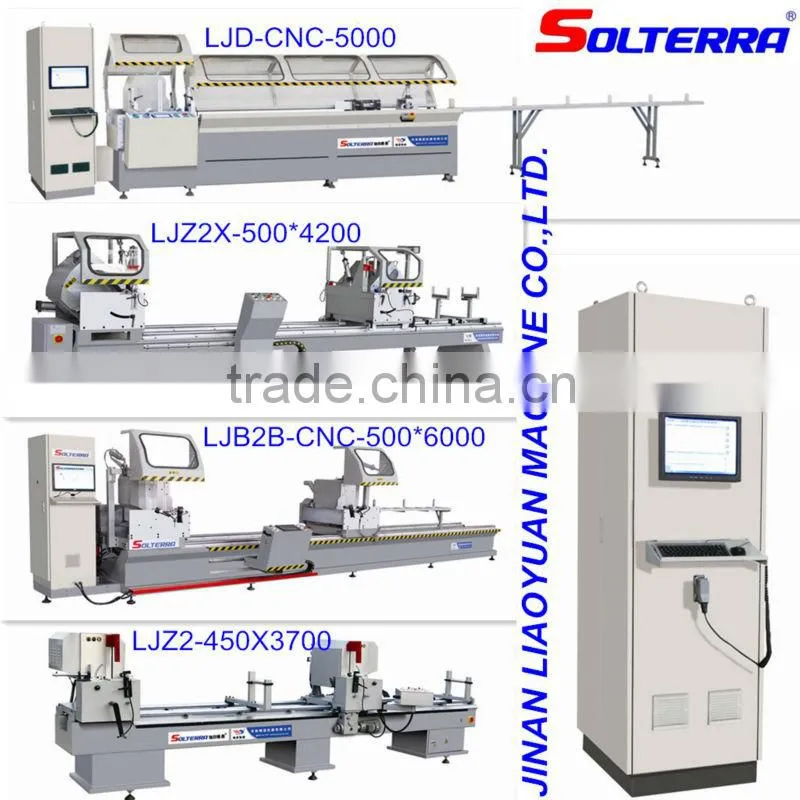

Model and Specifications:

MODEL

LJB2B-CNC-500*6000

LJD-CNC-5000

 LJZ2X-500*4200

LJZ2-450X3700

Power supply

380V 50Hz

380V 50Hz

380V 50Hz

380V 50Hz

Cutting motor power

2x2.2Kw Rotary Speed 2800r/min

2.2 Kw 2800r/min

 2x2.2Kw 2800r/min

2x1.5Kw

Servo motor power

3x0.75Kw Rotary Speed 4050r/min







Air pressure

0.5-0.8Mpa

0.5-0.8Mpa

0.5-0.8Mpa

0.5-0.8Mpa

Air consumption

60L/min

40L/min

60L/m

60L/m

Blade specification

Φ500XΦ30X4.4 Z=120

Φ500 X 4.2 XΦ30mm Z=120

Φ500XΦ30X4.4 Z=120

Φ450XΦ30X4.4 Z=120

Cutter feeding speed

stepless  0-3m/min

stepless  0-3m/min

Stepless  0-3m/min



Cutter moving speed

0-20m/min

0-20m/min





Cutting length

max 4500mm min 360mm at 90°

max 4200mm min 760mm at 45°

 Max 6000mm min 500mm

max 4200mm  min 400mm

Max 3700mm min 580mm (45°)

Max 3700mm min 400mm(90°,135°)

Cutting width

135mm

120mm

max 135mm

Max 120mm

Cutting height

230mm

230mm

Max 300mm 90°,max 200mm 45°

Max 200mm

Cutting angle

45°-90°-67.5°any angle in the range

45°~135°( 45°~0°~+45°)

90°, 45°,67.5°

90°, 45°,135

Repeat locating length tolerance

±0.2mm

±0.2mm



±5′

Cutting profile surface plane

<=0.10mm

<=0.10mm



0-0.3m/min

Cutting angle tolerance

±0.5′

±0.5′



<=0.1mm

Cutting profile surface roughness

Ra12.5μm

Ra12.5μm

Ra12.5μm

Ra 12.5μm

Overall dimension

6800X1500X2040mm

3850x1700x1800mm

5500*1750*1950mm

4500X1170X1400mm

Weight

About 2500kg

About 2000kg

About 1850kg

1500kg

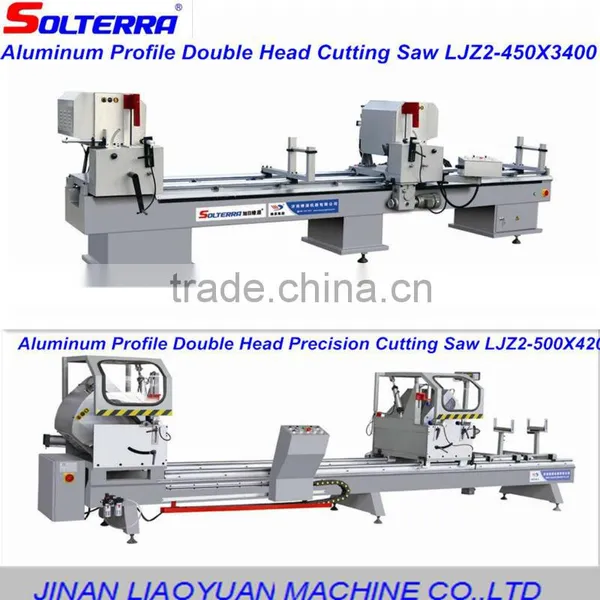

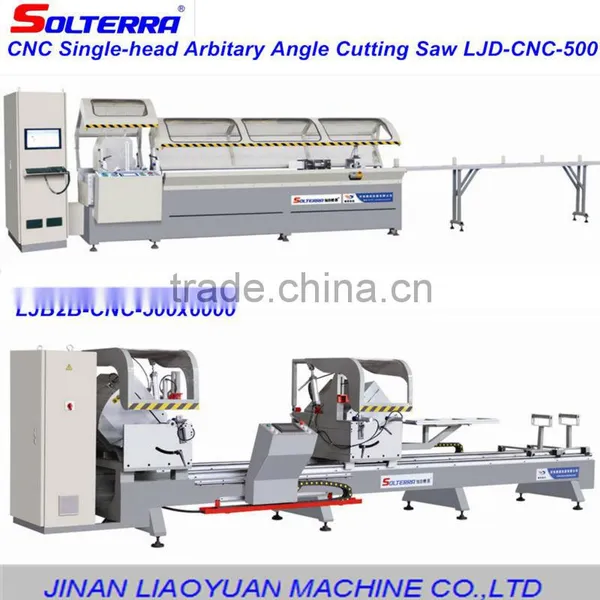

The related machine for aluminum window and door making

Aluminum window and door making machine-CNC Double head Precision Cutting Saw



Customers Visit Aluminum window and door making machine-CNC Double head Precision Cutting Saw

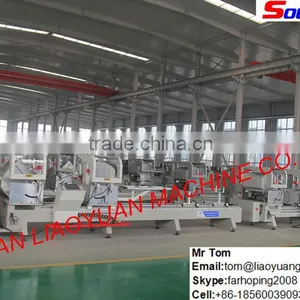

Machines Present at Exhibition

Aluminum window and door making machine-CNC Double head Precision Cutting Saw



Loading and Delivery

Aluminum window and door making machine-CNC Double head Precision Cutting Saw
