Aluminium Windows Corner Combining Machine for Sale
Brief Product Information
Corner crimping machine
ISO9001:2008
Factory built in 1991
| Name | Aluminium Windows Corner Combining Machine for Sale |
| Model | LZJ-120 |
| Brand | SOLTERRA |
| Certifcates | ISO9001,SGS |
| Warranty | The Warranty time is one year, Engineers available to the service |
| Delivery time | Within 20 working days after receiving the advanced payment |
| Package | High Quality Standard Wooden case |
| Payment terms | T/T,L/C,Western Union |
Aluminum Corner crimping machine detailed informaton are as followed:
Super quality! Lowest price!! Best Service!!!
As a factory, We are looking forward to finding the agents of our products all over the world!!
Equipment Features:
1.The frame is specially jointed by steel with high quality and durable .
2.Adopt new mechanical linkage device,realized complete synchronous corner combining.
3.Synchro feeding structure make the adjustment very easy
4.Screw thread regulates the distance tertween up and down crimping blade ensures regulated blades easily.
5.It is collocate single cutter of many points crimping cutter ensure reliably crimping for aoll kinds of profiles.
Main specification and technical parameter:
| Power supply | 380V 50Hz |
| Main Motor mput power | 1.1KW |
| Rated oil pump pressure | 16Mpa |
| Motor rotational speed | 1400r/min |
| Profile processing height | Max 120mm |
| Profile processing width | 90mm |
| Total combining pressure | 0.3~0.8Mpa |
| Air consumption | 2L/min |
| General pressure of corner combining | 48KN |
| The adjustable range of the main location block | 70mm |
| Overall dimension | 1000*1200*1200mm |
| weight | 350kg |

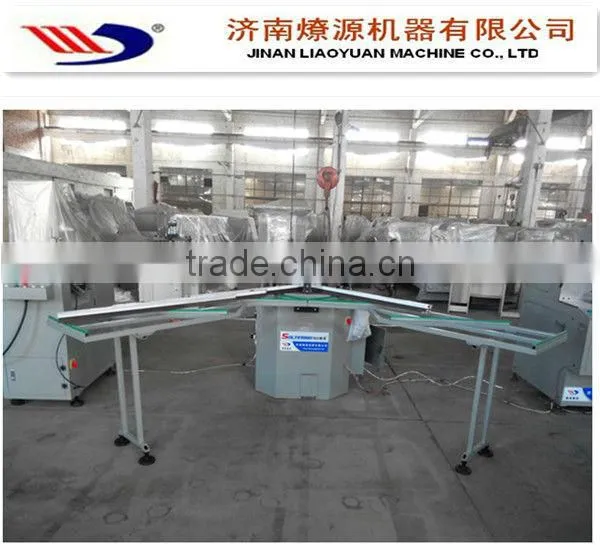

Machine Images
Aluminum Windows Fabricating Process
With Fully ISO9001 Approved, For more information about the certificate,please
feel free to contact me!!
After-sale service
Contact Information:
