General Description

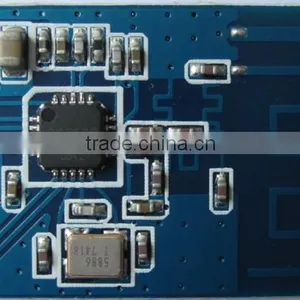

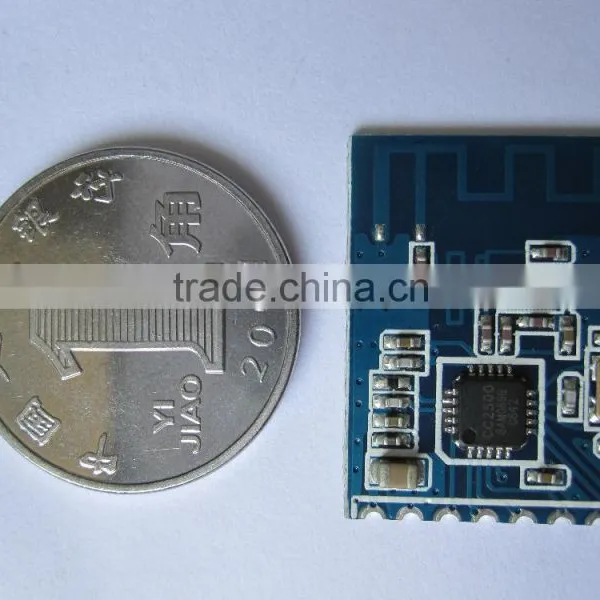

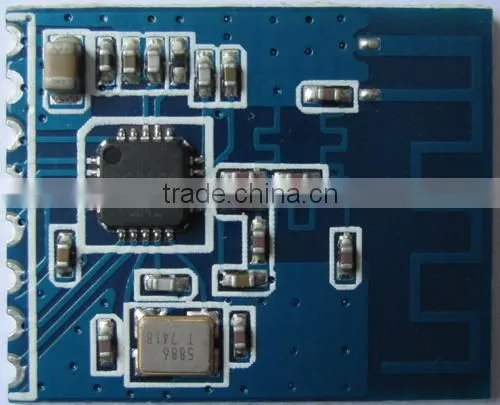

VT-CC2500-M1 is based on RF transceiver CC2500 of TI Chipcon,it’s a small size and low power consumption module. CC2500 is a low-cost 2.4 GHz transceiver designed for designed for very low power wireless applications. The circuit is intended for the 2400-2483.5 MHz ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency band. The MAX RF output power can be set as high as +1dBm, with data rate as high as 500Kbps. The module integrated many RF functions thus you can use it conveniently and reducing your development time.
Features
l Central frequency is 2433MHz, Frequency bands: 2400~2483.5MHz
l Programmable output power up to +1dBm for all supported frequencies,the communication distance is above 80m in sight .
l High receiver sensitivity down to -105dBm(at 2.4Kbps data rate)
l Programmable baseband modulator with GFSK/2-FSK/ASK/OOK/MSK
l Programmable data rate 1.2~500Kbps
l Separate 64-byte RX and TX data FIFOs.
l Built-in CRC check ensure data transmission reliably.
l Support carrier sense indicator and digital RSSI output.
l Low current consumption with receive mode <15mA, transmit mode at +1dBm output power <25mA
l Low current consumption at power down state <2uA
l Wake-on-radio functionality for automatic low-power RX polling
l Integrated analog temperature sensor
l Efficient SPI interface, all registers can be programmed with one “burst” transfer
l Small dimension: 20.8mm×17.0mm×2.4 mm
l Operating supply voltage:1.8~3.6V DC
Applications
l Logistics Tracking System, Warehouse patrol, Electronic label.
l Replace RS232 and RS485 in data transmission
l Industrial monitoring and control in data acquisition
l AMR – Automatic Meter Reading
l Home and building automation
l Consumer Electronics products of wireless control
l Wireless alarm and security systems
l Wireless sensor networks
General Characteristics
Test operating conditions:Ta=25°C,VCC=3.3V if nothing else stated.
Parameter |
Type |
Condition/Note |
|||||||||||||||||||||||||||||||||||||||||||||||||||
Operating supply voltage |
DC 1.8~3.6V |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
Central frequency |
2433MHz |
Can be programmable to other frequency in bands 2400~2483.5MHz |
|||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency accuracy |
±30KHz |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
Modulation format |
GFSK/2-FSK/ASK/OOK/MSK |
Programmable |
|||||||||||||||||||||||||||||||||||||||||||||||||||
Transmit power |
-30~+1dBm |
Programmable |
|||||||||||||||||||||||||||||||||||||||||||||||||||
TX current consumption |
<25mA |
Po=+1dBm |
|||||||||||||||||||||||||||||||||||||||||||||||||||
Receiver sensitivity |
-105dBm |
2.4Kbps |
|||||||||||||||||||||||||||||||||||||||||||||||||||
RX current consumption |
<15mA |
2.4Kbps |
|||||||||||||||||||||||||||||||||||||||||||||||||||
Sleep State current consumption |
<2uA |
Refer to IC operation states |
|||||||||||||||||||||||||||||||||||||||||||||||||||
Data rate |
1.2~500Kbps |
Programmable |
|||||||||||||||||||||||||||||||||||||||||||||||||||
Spurious emissions and harmonics |
< -30dBm |
TX power +10dBm. |
|||||||||||||||||||||||||||||||||||||||||||||||||||
Communication distance |
>80m |
2-FSK modulation, 2.4kbps data rata, +1dBm output power. |
|||||||||||||||||||||||||||||||||||||||||||||||||||
Antenna impedance |
50ohm |
PCB General Description VT-CC2500-M1 is based on RF transceiver CC2500 of TI Chipcon,it’s a small size and low power consumption module. CC2500 is a low-cost 2.4 GHz transceiver designed for designed for very low power wireless applications. The circuit is intended for the 2400-2483.5 MHz ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency band. The MAX RF output power can be set as high as +1dBm, with data rate as high as 500Kbps. The module integrated many RF functions thus you can use it conveniently and reducing your development time. Features l Central frequency is 2433MHz, Frequency bands: 2400~2483.5MHz l Programmable output power up to +1dBm for all supported frequencies,the communication distance is above 80m in sight . l High receiver sensitivity down to -105dBm(at 2.4Kbps data rate) l Programmable baseband modulator with GFSK/2-FSK/ASK/OOK/MSK l Programmable data rate 1.2~500Kbps l Separate 64-byte RX and TX data FIFOs. l Built-in CRC check ensure data transmission reliably. l Support carrier sense indicator and digital RSSI output. l Low current consumption with receive mode <15mA, transmit mode at +1dBm output power <25mA l Low current consumption at power down state <2uA l Wake-on-radio functionality for automatic low-power RX polling l Integrated analog temperature sensor l Efficient SPI interface, all registers can be programmed with one “burst” transfer l Small dimension: 20.8mm×17.0mm×2.4 mm l Operating supply voltage:1.8~3.6V DC
Applications l Logistics Tracking System, Warehouse patrol, Electronic label. l Replace RS232 and RS485 in data transmission l Industrial monitoring and control in data acquisition l AMR – Automatic Meter Reading l Home and building automation l Consumer Electronics products of wireless control l Wireless alarm and security systems l Wireless sensor networks
General Characteristics Test operating conditions:Ta=25°C,VCC=3.3V if nothing else stated.
Note: 1. The module transmission data rate will affect transmission distance ,the higher the data rate , the closer the distance, and the lower the receiving sensitivity. 2. The supply voltage to the module will affect TX power, in the operating supply voltage range, the lower the voltage, the lower the TX power. 3. The module central frequency will change as the operating temperature change, use it under suggest temperature, the module can work well. 4. The antenna will strongly affect the communication distance, please select matched antenna and connect it correctly. 5. The module mount will affect the communication distance.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
Operating temperature |
-20~+75 °C |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
Storage temperature range |
-50~+125°C |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension |
20.8 mm×17.0 mm×2.4mm |
See more in PCB description |
Note:
1. The module transmission data rate will affect transmission distance ,the higher the data rate , the closer the distance, and the lower the receiving sensitivity.
2. The supply voltage to the module will affect TX power, in the operating supply voltage range, the lower the voltage, the lower the TX power.
3. The module central frequency will change as the operating temperature change, use it under suggest temperature, the module can work well.
4. The antenna will strongly affect the communication distance, please select matched antenna and connect it correctly.
5. The module mount will affect the communication distance.
Remark: Please contact with seller to get detail datasheet.
