Help CenterLow Cost RF Module CC2500 PA 2.4G Power Amplifier Wireless Module by TI's Chip
Related Products
-
CC2530 Zigbee Module CC2530 2.4G Wireless Module Wireless Communication Module 200 MetersUS$ 5.5 - 6.2MOQ: 10 Pieces -
CC2530 Zigbee Module RF4CE Application by TI's ChipUS$ 5.5 - 6.2MOQ: 10 Pieces
-
CC2540 Bluetooth RF Moudle BLE Module Low-Power 8051 Microcontroller CoreUS$ 2 - 6MOQ: 10 Pieces
-
Transperent Transmit 232 Port RF Module for POS Systems, Data CollectorsUS$ 8 - 10MOQ: 10 Pieces
-
CC2530 Zigbee Module Wireless Smart HomeNegotiableMOQ: 1
General Description

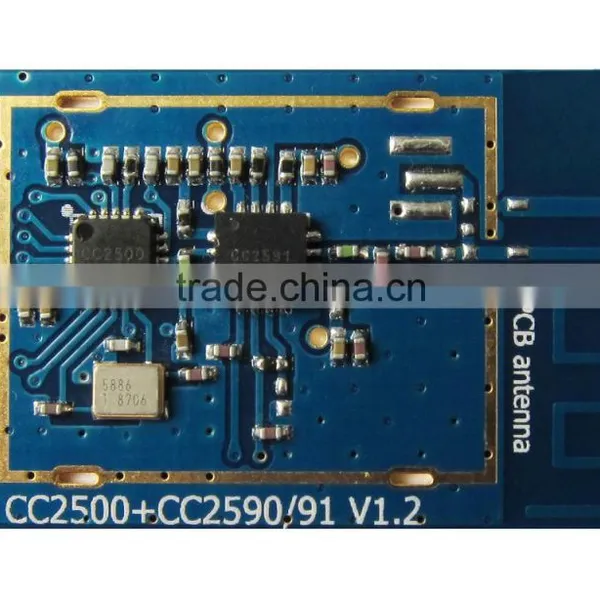

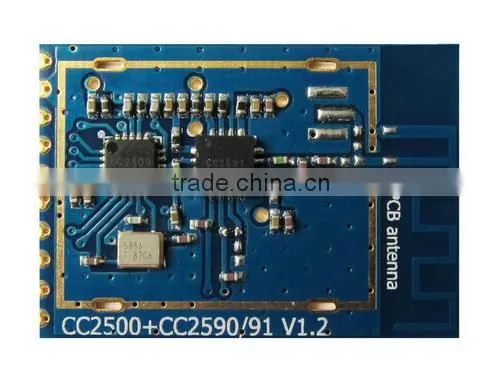

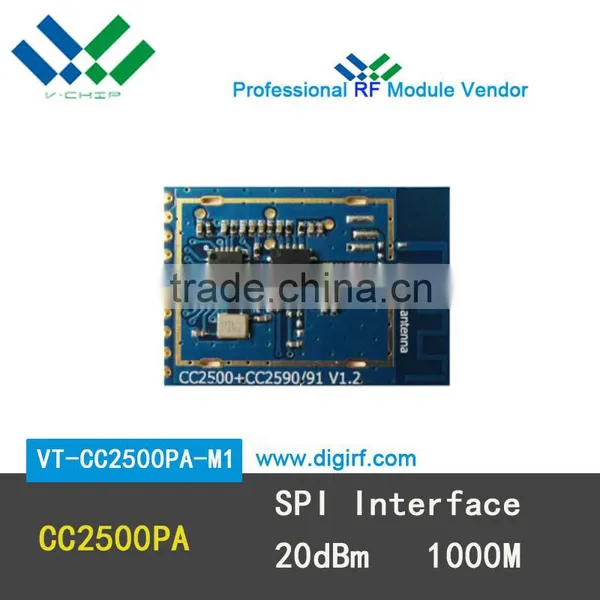

VT-CC2500PA-M1 is based on RF transceiver CC2500 of TI Chipcon. CC2500 is a low-cost 2.4 GHz transceiver designed for very low power wireless applications. The circuit is intended for the 2400-2483.5 MHz ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency band. The max RF output power can be set as high as +1dBm, with data rate as high as 500Kbps. The module integrated PA CC2591 to make the max RF output power up to +20dBm. There is an inverted F antenna on the module. So you can use the module conveniently and reducing your development time.
Features
l Central frequency is 2433MHz, Frequency bands: 2400~2483.5MHz
l Programmable output power up to +20dBm, the transmission distance is above 1000m in sight .
l High receiver sensitivity down to -109dBm(2.4Kbps)
l Programmable baseband modulator with GFSK/2-FSK/ASK/OOK/MSK
l Programmable data rate 1.2~500Kbps
l Separate 64-byte transmit/receive FIFOs.
l Built-in CRC check ensure data transmission reliably.
l Support carrier sense indicator and digital RSSI output.
l Low current consumption with receive mode <30mA, transmit mode at +20dBm output power <160mA
l Low current consumption at power down state <2uA
l Wake-on-radio functionality for automatic low-power RX polling
l Integrated analog temperature sensor
l Efficient SPI interface, all registers can be programmed with one “burst” transfer
l Small dimension: 30.0mm×21.0mm×2.4 mm
l Operating supply voltage: 2.4~3.6V DC
Applications
l Logistics Tracking System, Warehouse patrol, Electronic label.
l Replace RS232 and RS485 in data transmission
l Industrial monitoring and control in data acquisition
l AMR – Automatic Meter Reading
l Home and building automation
l Consumer Electronics products of wireless control
l Wireless alarm and security systems
l Wireless sensor networks
General Characteristics
Test operating conditions:Ta=25°C,VCC=3.3V if nothing else stated.
Parameter |
Type |
Condition/Note |
Operating supply voltage |
DC 2.4~3.6V |
|
Central frequency |
2433MHz |
Can be programmable to other frequency in bands 2400~2483.5MHz |
Frequency accuracy |
±30KHz |
|
Modulation format |
GFSK/2-FSK/ASK/OOK/MSK |
Programmable |
Transmit power |
-30~+20dBm |
Programmable |
TX current consumption |
<160mA |
Po=+20dBm |
Receiver sensitivity |
-109dBm |
2.4Kbps |
RX current consumption |
<30mA |
2.4Kbps |
Sleep State current consumption |
<2uA |
Refer to IC operation states |
Data rate |
1.2~500Kbps |
Programmable |
Spurious emissions and harmonics |
< -30dBm |
TX power +10dBm. |
Communication distance |
>1000m |
2-FSK modulation, 2.4kbps data rata, +20dBm output power. |
Antenna impedance |
50ohm |
Multilayer Chip Antenna |
Operating temperature |
-20~+75 °C |
|
Storage temperature range |
-50~+125°C |
|
Dimension |
30.0mm×21.0mm×2.4mm |
See more in PCB description |
