General Description

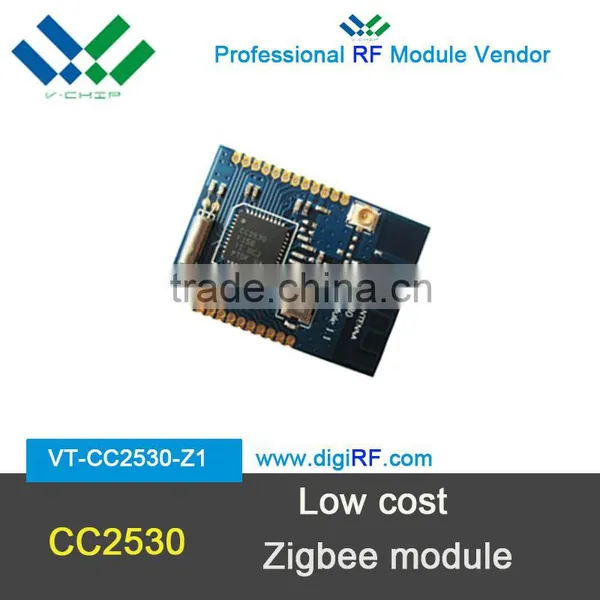

VT-CC2530-Z1 is based on RF Transceiver CC2530 of TI Chipcon, it’s a small size and ultra low power UHF wireless module. CC2530 is a true system-on-chip (SoC) solution for IEEE 802.15.4, Zigbee and RF4CE applications. It combines RF transceiver with an industry-standard enhanced 8051 MCU , in-system programmable flash memory, 8-KB RAM and many other powerful features. Customer can use it conveniently and reducing your development time.
Features
Radio and Power
l 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver
l Excellent receiver sensitivity and robustness to
l Interference, receiver sensitivity reach to -97dBm
l Programmable output power up to 4.5dBm
l Suitable for systems targeting compliance with worldwide radio-frequency : ETSI EN 300 328 and EN 300 440 Class 2 (Europe), FCC CFR47 Part 15 (US), and ARIB STD-T66 (Japan)
l Accurate digital RSSI/LQI support
l Data rate: 250kBaud
l Modulation: O-QPSK
l Integrated PCB antenna, other antenna are optional with an IPX connector
l Active-Mode RX (CPU Idle): 24 mA
l Active Mode TX at 1 dBm (CPU Idle): 29 mA
l Power Mode 1 (4 uS Wake-Up): 0.2 mA
l Power Mode 2 (Sleep Timer Running): 1 uA
l Power Mode 3 (External Interrupts): 0.4 uA
l Wide Supply-Voltage Range (2 V–3.6 V)
8051 MCU and Peripherals
l Powerful five-channel DMA
l 128KB in-system programmable flash, customization 32-,64-,256-KB
l 8KB RAM with retention in all power modes
l CSMA/CA hardware support
l AES security coprocessor
l Battery monitor and temperature sensor
l 12-Bit ADC with eight channels and configurable resolution
l Two powerful USARTs with support for several serial protocols
l IEEE 802.15.4 MAC timer, general-purpose timers (One 16-Bit, Two 8-Bit)
l 32-kHz sleep timer with capture
l Watchdog timer
l 21 general-purpose I/O pins (19× 4 mA, 2×20 mA)
l Hardware debug support
Applications
l 2.4-GHz IEEE 802.15.4 Systems
l RF4CE Remote Control Systems (64-KB Flash and Higher)
l ZigBee Systems (256-KB Flash)
l Home/Building Automation
l Lighting Systems
l Industrial Control and Monitoring
l Low-Power Wireless Sensor Networks
l Consumer Electronics
l Health Care
General Characteristics
Test operating conditions:Ta=25°C,VCC=3.3V if nothing else stated.
Parameter |
Type |
Condition/Note |
Operating supply voltage |
DC 2.4~3.6V |
|
Central frequency |
2394-2507MHz |
Programmable |
Frequency accuracy |
±30KHz |
|
Modulation format |
O-QPSK |
|
Transmit power |
≤20dBm |
Programmable |
TX current consumption |
<160mA |
Po=20dBm |
Receiver sensitivity |
-108dBm |
|
RX current consumption |
<24mA |
|
Sleep State current consumption |
<0.4uA |
Power Mode3 |
Data rate |
250kBaud |
Programmable |
Communication distance |
1000m |
At open area |
Antenna impedance |
50ohm |
|
Operating temperature |
-20~+75 °C |
|
Storage temperature range |
-40~+125°C |
|
Dimension |
20 mm×33mm×2.4mm |
See more in PCB description |
