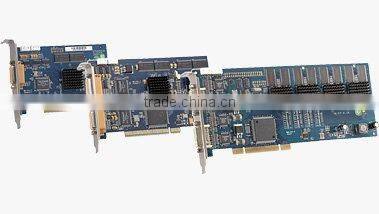

dvr video card with s/w and SDK VEC0404FB

Model

VEC1604FB

VEC0804FB

VEC0404FB

General

Encoding Chip

TMS320DM645

PCI Standard

PCI 2.2

Video

Input

16 channel, BNC(1.0Vp-p, 75?)

8 channel, BNC(1.0Vp-p, 75?)

4 channel, BNC(1.0Vp-p, 75?)

Standard

NTSC(525Line, 60f/s), PAL(625Line, 50f/s)

Preview Resolution

4CIF(D1)/CIF/QCIF, Realtime

Compression

H.264

Encoding Resolution

NTSC: 704×480(4CIF/D1), 704×240(2CIF), 352×480(HD1), 352×240(CIF), 176×120(QCIF)

PAL: 704×576(4CIF/D1), 704×288(2CIF),352×576(HD1), 352×288(CIF), 176×144(QCIF)

Encoding Speed

Main Stream:

Full-channels 2CIF/HD1/CIF/QCIF or Half-channels 4CIF(D1) with 25/30fps;

Full-channels 4CIF(D1) with 12/15fps

Extra Stream: CIF/QCIF with 25/30 fps

Bit Rate

32Kbps~4Mbps

RAW Stream

Full-channels 4CIF(D1)/CIF/QCIF

Audio

Input

16 channel, BNC(200-2800mV, 30KΩ)

8 channel, BNC(200-2800mV, 30KΩ)

4 channel, BNC(200-2800mV, 30KΩ)

Compression

PCM/ADPCM

Sampling Rate

8bit/8KHz, 16bit/8KHz

Bit Rate

32Kbps

System Requirement

Operating System

Windows 2000/XP/2003/Vista/7, Linux

CPU

Intel or AMD

Motherboard

Based on Intel or AMD chipset, PCI 2.2 slot

Memory

256MB or above

Graphics

NVIDIA, AMD-ATI, Intel graphics cards, memory 64MB or above

Environmental

Working Environment

-10~+55C / 10~90%RH / 86~106kpa

Power Requirement

5V±10%, 3.3V±10%

Power Consumption

11W

7W

3W

Dimension

257mm×106.6mm

182.5mm×106.6mm

152.5mm×93.2mm
