4Cam H.264 CCTV DVR Kit With 15inch LCD Display

4Cam H.264 CCTV DVR Kit With 15inch LCD Display thumbnail-1
4Cam H.264 CCTV DVR Kit With 15inch LCD Display photo-1
US$ 1 - 2,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hyking
Model Number:
HK-S1504M-kit
Contact Supplier Request Quote Chat Now
Shenzhen KingCCTV Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hyking
Model Number HK-S1504M-kit

Specifications

1 piece of DVR: HK-S1504M
2 pieces of day night IR cameras: HK-F312
2 pieces of IR cameras: HK-S312

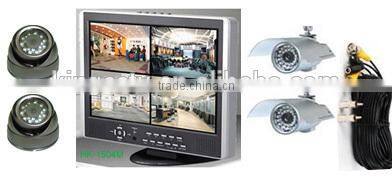

4Cam H.264 CCTV DVR kit with 15inch LCD display

Model #: HK-S1504M-kit

4Cam H.264 CCTV DVR kit with 15inch LCD display







 DVR SPECIFICATIONS

Model # HK-S1504M  × 1 piece
Compression Format H.264
Operation System Embedded real-time operating system (RTOS)
Video Input NTSC / PAL /SECAM: BNC 4CH In / 1CH Out
Audio Input In: RCA 1CH Out: RCA 1CH
LCD Display 15" color LCD, 4:3, CCFL
Display Resolution NTSC : 720 x 480; PAL: 720 x 576
Recording Resolution & Frame Rate NTSC: 120fps@CIF, PAL: 100fps@CIF
Playback Resolution & Frame Rate NTSC: 120fps/4CH(CIF), PAL: 100fps/4CH(CIF)
Compression Format Video: H.264 Baseline Profile, Audio: ADPCM
Hard Disk Capacity Up to 1TB, SATA interface HDD x 1
Recording Mode Manual/ schedule/sensor activated/motion detection
Sensors, Alarm 4 Input, 1 Output
USB USB2.0
Network Interface 1 RJ45 10/100Mbps Ethernet Connector
Media Backup 1 USB 2.0 port for USB flash disk, HD
PTZ Control RS-485
IR Remote Control Unit YES
USB Mouse YES
Backup USB2.0 / Remote Backup
Operation Temperature& Humidity -0 ~ 40 °C; / 10-90% RH (No Condenser)
Power Adapter DC 12V5A
Dimension 359.4 * 312 * 52mm
Weight Gross weight, 7.05kg; Net weight, 4kg
Box size 50 * 42.5 * 22cm / 54 * 52 * 39.5cm (2pcs, 15kg)



 CAMERA(HK-F312) SPECIFICATIONS

Model # HK-F312  × 2pcs
Image Sensor 1/3" Sony Super CCD
Total Pixels NTSC: 510(H)x 492(V), PAL: 500(H)x 582(V)
Scanning System NTSC: 525 lines, 60 fields/sec, PAL: 625 lines, 50 fields/sec
IR Led 850nm*30PCS LEDs
IR Visible Distance  20M  (Lens 8mm)
Sync System Internal
Minimum illumination 0.5 Lux F1.2
Resolution 420 TVLs
White Balance ATW / AWC switchable
Gain Control AGC ON / OFF switchable
S/N Ratio 48dB (AGC OFF)
Electronic Shutter NTSC: 1/60~1/120,000 sec; PAL: 1/50~1/120,000 sec
Auto Iris VIDEO/DC
Lens Mount C/CS
B.L.C. Function ON/OFF switchable
Video Output Composite 1.0V p-p at 75Ω
Gamma Correction 0.45
Operation Temperature -10 ~ 50 °C
Operational Humidity within 85%RH
Power Supply DC12V/180mA
Dimension 112 * 64 * 55mm
Net weight 480g



 CAMERA(HK-S312) SPECIFICATIONS

Model # HK-S312  × 2pcs
Image Sensor 1/3" Sony Super CCD
Total Pixels NTSC: 510(H)x 492(V), PAL: 500(H)x 582(V)
Scanning System NTSC: 525 lines, 60 fields/sec, PAL: 625 lines, 50 fields/sec
IR Led 850nm*24PCS LEDs
IR Visible Distance  20M  (Lens 8mm)
Sync System Internal
Minimum illumination 0.5 Lux F1.2
Resolution 420 TVLs
White Balance ATW / AWC switchable
Gain Control AGC ON / OFF switchable
S/N Ratio 48dB (AGC OFF)
Electronic Shutter NTSC: 1/60~1/120,000 sec; PAL: 1/50~1/120,000 sec
Auto Iris VIDEO/DC
Lens Mount C/CS
B.L.C. Function ON/OFF switchable
Video Output Composite 1.0V p-p at 75Ω
Gamma Correction 0.45
Operation Temperature -10 ~ 50 °C
Operational Humidity within 85%RH
Power Supply DC12V/180mA
Net weight 385g



 MAIN FUNCTIONS

  • Ideal for business, office & home.
  • Do-it-Yourself protection, safety&security Kit.
  • Motion detection feature only records when there is movement.
  • USB connection for backup feature to record PC used files.
  • State of the art DVR with complete functionality.
  • 4 IR Cameras give complete coverage for monitor.

     MAIN FEATURES

  • 4CH 15" LCD H.264 triplex real time Economical DVR
  • H.264 compression.
  • Graphical interface, easy to use.
  • Support USB mouse.
  • Support 3G mobile phone surveillance and E-mail function.
  • Backup file supports windows media player.
  • Support network file share function.
  • Motion Detection with area setting.
  • Support 4CH simultaneous playback
  • Support dual coding stream.
  • PC playback & backup via built-in USB 2.0 port.
  • Time Schedule Record /Motion triggered record.
  • IR remote control included.
  • Password protection.

     KITS CAUTIONS

  • When install Hard Disk, make sure the HDD is set to MASTER.
  • Do not pull out HDD when DVR is running.
  • To reduce the risk of electrical shock, do not open covers, no users serviceable pars inside. Refer servicing to qualified service personnel.
  • To prevent fire or shock hazard, do not expose units not specifically designed for outdoor use to rain or moisture.

     PACKING DETAILS

  • 1 x 4CH H.264 Standalone DVR With 15" LCD Monitor
  • 4 x 1/3" inch Sony Chip, 420TVL, Security CCTV CCD IR Color Camera
  • 2 x Special Camera Bracket
  • 1 x 12V5A Special Camera Power
  • 1 x 5CH Power Distribution Wire
  • 1 x Power Adapter 12V5A for LCD DVR
  • 1 x Software CD
  • 1 x User's Manual and warranty card
  • 1 x USB mouse
  • 1 x IR Controller
  • 1 x USB Cable
  • 4 x 18m BNC Wire
  • package: 53 * 46 * 30cm, 12.1Kg
