Trade Assurance Econimic 4CH 1080P Cheap Innovative PoE NVR System Kit
- Shenzhen China
- Credit Card PayPal
You May Like
-
Most Popular Dahua 4ch NVR4104 With PoE and IP Camera HDBW1000E Economic NVR System Kit
-
Dvr Kits 15" LCD DVR
-
CCTV System; Cctv Kit; Cameras Systems 4ch Cameras System LCD DVR
-
CCTV System; Cctv Security System; Cameras Systems 4ch Cameras System LCD DVR
-
LCD DVR Surveillance Cctv Cameras System in Uae: HK-S1504M+IR Camera*4
-
Cctv Dvr System: HK-S1504M+IR Camera*4 LCD DVR
Product Details
| Place of Origin | Guangdong, China | Brand Name | KingCCTV | |
| Model Number | NVR5204F-P & HK-HT-G220-P & HK-HT-SW220-P |
Product Description
Trade Assurance Econimic 4CH 1080P Cheap Innovative PoE NVR System Kit
PoE NVR System Kit
Specification-- PoE NVR System Kit
KingCCTV IP camera:
| Model # | HK-HT-G220(-P) |
| System | Embedded RTOS design, dual core DSP(Hi3516C), pure hardware compression, watchdog |
| Pixel | 2.0 Mega Pixel |
| Image Sensor | 1/2.8" SONY IMX122 low-illumination CMOS |
| Min. Illumination | IR ON 0Lux |
| Lens | HD 12mm, 4/6/8/12/16mm (optional) |
| Lens interface | CS |
| Day&Night | IR-cut |
| Compression | |
| Video Compression | H.264 High Profile, JPEG Screen shot |
| Main/Extra Stream | 1080P(1920*1080)/D1(704*576) |
| Video output bit rate | 32Kbps~16Mbps |
| Audio Compression | G.711a |
| Image | |
| Max. Resolution | 1920*1080 |
| Frame Rate | 25fps(1920*1080) |
| Image Setting | Saturation, Brightness, Contrast adjustable through Client software or web server |
| Network features | |
| Storage | Network storage, TF card storage(optional) |
| Intelligent Alarm | Motion detect, Video loss, Network disconnection, IP address conflict, Storage full, Storage error |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP ,RTSP |
| Basic | Reset button, Anti-flicker, Dual stream, Heartbeat, Password protection |
| NVR/HVR | YES |
| Mobile Monitor | Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android) |
| ONVIF | 2.2 |
| Multiple Browsers | FireFox, Chrome, Internet Exploerer |
| Interface | |
| Communication Interface | 1pc RJ45 10M/100M self-adaptive Ethernet interface |
| Video Output | 1Vp-p Composite Output(75Ω/BNC) |
| General parameters | |
| Operating Condition | -10~60 °C, Humidity 90% or less(non-condensing) |
| Power Supply | DC12V±10% |
| Power Consumption | 6W MAX |
| Protection Range | IP66 |
| LED | 42pcs φ5 IR LEDs, IR distance 15M |

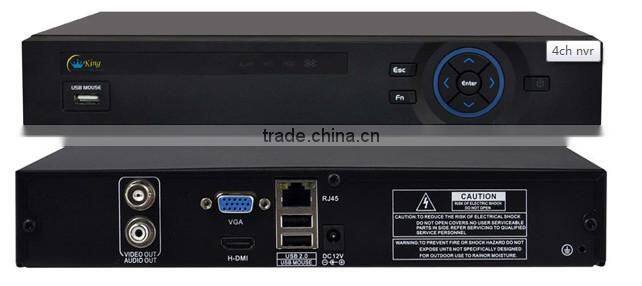

KingCCTV NVR:
| Model No. | HK-NVR5204F | HK-NVR5208F | HK-NVR5216D |
| Main Processor | Hi3520D | ||
| Operating System | Embedded Linux | ||
| System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. | ||
| Operation interface | 16 bit real color GUI interface support mouse operation | ||
| Display screen | 1/4 | 1/4/8/9 | 1/4/8/9/16 |
| Video standard | PAL(625 lines, 50fps); NTSC(525lines, 60fps) | ||
| Image encode | H.264(High Profile) | ||
| Monitor quality | Monitor: D1; VGA: High Definition; HDMI: High definition | ||
| Playback quality | 1080P/D1 | ||
| Encode capability | 1ch 1080P Realtime | ||
| Motion detection | Each channel can set 192(16*12) detection area | ||
| Audio compression | G711A | ||
| Bidirectional talk | support | ||
| Record mode | manual>alarm>motion detection>timing | ||
| Local playback | support 1ch/4ch playback | ||
| Video search | Time, date, event, channel search | ||
| Space occupation | Video: CIF 4~5G/day*chs, D1 16~20G/day*chs, 960H 12G~20G/day*chs; 720P 20~30G/day*chs; 1080P ~40G/day*chs audio: 691.2M/day*channel | ||
| Video storage | Local HDD, Network | ||
| Back up mode | Network backup, USB portable HDD, USB DVD/RW, SATA DVD/RW | ||
| Video input | 4chs 1080P,4chs D1 for Storage | 8chs 1080P, 8chs 720P, 16chs D1 for Storage | 16chs 960H for Storage |
| Video output | 1ch BNC, 1ch VGA, 1ch HDMI | ||
| Video Loop out | N/A | ||
| Audio input | N/A | ||
| Audio output | 1ch RCA(200-3000mV, 5KΩ) | ||
| Alarm input | N/A | ||
| Alarm output | N/A | ||
| Network interface | RJ45 10M/100M self-adaptive Ethernet port | ||
| PTZ control | 1 RS485; support multi kinds of PTZ protocol | ||
| USB port | 2 * USB2.0 | ||
| HDD port | 2 SATA port(2*4T) | ||
| Power | 12V/2A | ||
| Consumption | less than 5W(not include H.D.D.) | ||
| Working Temperature | 0℃ ~ +55℃ | ||
| Working Humidity | 10%~90% | ||
| Dimension | L233*W300*H45 | ||
| Weight | 1.46KG | ||
Features-- PoE NVR System Kit
(1)HK-HT-G220-P
·POE is optional
·Mobile Phone Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android)
·Support Multiple Browsers such as FireFox, Chrome, Internet Exploerer
·Built-in Web server enables the use of a standard Web browser for viewing and management
·Support dynamic IP address, LAN, Internet (ADSL and Cable Modem)
·Support protocols: RTSP/ FTP/ PPPOE/ DHCP/ DDNS/ NTP/ UPnPONVIF Ver. 2.2 conformance
·Support whole TCP/IP protocol
·Support CVBS video output and overlying DDNS, user name, password and other info
·Up to 10 viewers can directly access the camera simultaneously
(2)NVR5204F-P
·4chs/8chs/16chs IP camera inputs
·1ch audio in & 1ch audio out
·Max 480fps@1080p recording
·ONVIF Version 2.0 conformance
·HDMI / VGA simultaneous video output
·Support 2 SATA HDDs up to 8TB, 2 USB2.0, 1RJ45(1000M)
·Multi-language Support(English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc)
·Support Onvif
·Support KingCCTV cloud(),no need to do router mapping, just 1 step go to internet with KingCCTV cloud technology
·Support multi-browser(IE, Chrome, Firefox, Safari)
·support 3G & WIFI extension
·support P2P, cloud service

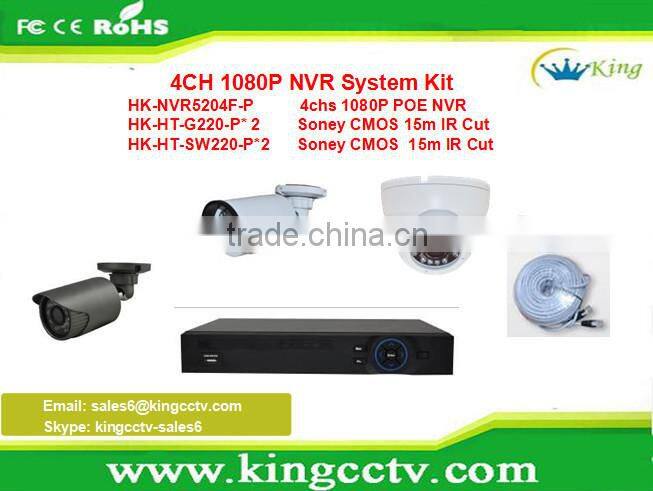

Real shot of PoE NVR System Kit
Considerate Service-- PoE NVR System Kit
OEM and ODM are both acceptable
Sample order is acceptable
Payment terms: Paypal, T/T, Western Union
Warranty: 2 YEARS
Certification: CE, FCC, RoHS
Lead time: 3-25 business days since purchasing date
Adantage-- PoE NVR System Kit
1.Our product line includes CCTV Camera, IP Camera, PTZ Camera, Network Camera, AHD Camera, NVR, DVR and all kinds of accessories.
2. We have accomplished the following big projects:
- CCTV Surveillance for Greece National Park
- CCTV Surveillance for Jewish Historical Museum Amsterdam
- CCTV Surveillance for Barranquilla Harbour in Colombia
- CCTV Surveillance for Shell in Japan
PoE NVR System Kit
Shenzhen KingCCTV Technology Co., Ltd. is a high technology enterprise, engaged in software & hardware development, manufacturing and sales for security & safe products.
Our factory is in Yindafeng Industry Park of Longgang District of Shenzhen. As our business extended, in order to provide more products and better service, we established a Greece Branch on January of 2008, and established a USA Branch in Senoia GA on October of 2012. We mainly sell, develop and manufacture DVR, HDVR, NVR, CCTV Camera, IP Camera, PTZ camera, etc.
Due to the hard work of all staffs in KingCCTV, and the continuous supports from our extensive customers, we have already achieved outstanding accomplishments in the past years. Here we deeply appreciate that it's only the customer's success which makes KingCCTV successful. So we would like to cooperate with you in the long run and create a brilliant future for all of us.
Welcome to vist our factory anytime you like
Best supplier of PoE NVR System Kit
Shenzhen KingCCTV Technology Co.,Ltd
Overseas Marketing Sales
Edison Tang
Skype: kingcctv-sales6
Email: sales6(at)
Whatsapp:18320821085
WeChat:281481464
Welcome to inquiry!
PoE NVR System Kit
(1)What is your MOQ?
Edison: Dear, for sample order, there is no MOQ. From second order, at least 50 pcs per order.
(2)How about delivery time?
Edison: We always make the shipment by DHL,UPS,Fedex. About 3-25 business days after confirming your payment.
(3)Payment terms?
Edison: We accept T/T, Paypal, Western Union payment.
(4)Can I be your exclusive representative?
Edison: Sure, dear. You are welcome to be our agents in your market. We have official contract to sign. Till now, we have sold our products to more than 40 countries.
(5)How about warranty?
Edison: All of our products are of 2 YEAR warranty.
(6)Can you do OEM/ODM?
Edison: Yes, both OEM and ODM services are acceptable and we can also print your logo and make your own packaging according to your requriements.
