Specifications

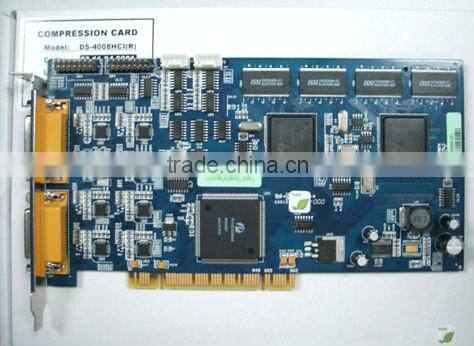

hikvision pc dvr card HK-DS4008HCI1).H.264, 8chs, Hardware Compression
2).200fps(P)/240fps(N),4CIF:704*576(PAL),704*480
hikvision pc dvr card HK-DS4008HCI
Available Models:
Cards are stackable to obtain 64 channels maximum
DS4008HCI
8 channels video and audio CIF(real time)
or 4 channels video and audio 4CIF (real time)
or 3 channel 4CIF and 2 channel CIF (real time)
or 2 channel 4CIF and 4 channel CIF (real time)
or 1 channel 4CIF and 7 channel CIF (real time)
or 8 channel DCIF (real time)
or 8 channel 4CIF(not real time)
Features & Functions :
Real-time video and audio compression, no frame lost
4CIF preview resolution
Comply with PCI 2.2 standard , a PC can support up to 64 channels
Support WINDOWS 2000/XP operating system
Setable video quality and bitrate
Setable brightness , contrast , saturation and hue of video signal
Support motion detection
Support OSD , LOGO and MASK overlay
Support watermark technology
Support double encoding Specifications:
Specifications:
Item |
Specifications |
||||
Video Format |
PAL and NTSC |
||||
Video Input |
8 Ch BNC (1.0Vp-p, 75ohm) |
||||
Audio Input |
8 Ch BNC (2.0Vp-p, 1Kohm) |
||||
Preview Resolution |
Resolution: 704*576(PAL),704*480(NTSC) |
||||
Video Compression |
H.264, Support CBR, VBR; Frame: 25F/s(PAL)30F/s(NTSC) Output32kbps-1000kbps(CIF) or 70kbps-4000kbps(4CIF) |
||||
Compression Resolution |
4CIF704*576(PAL)704*480(NTSC) DCIF528*384(PAL)528*320(NTSC) 2CIF704*288(PAL)704*240(NTSC) CIF352*288(PAL)352*240(NTSC) QCIF176*144(PAL)176*120(NTSC) |
||||
Audio Compression |
OggVorbis, Sample ratio is 16KHz, Output ratio is 16kbps |
||||
Power Consumption |
Less than 7W |
||||
Working Temperature |
-10--50 |
||||
Working Humidity |
10--90 |
||||
Dimension |
185mm*107mm |
||||
Computer Configuration (Recommend) |
Mainboard: Intel 945 or 965 Chipset Memory: 512MB Display Adapter: Geforce Mx400/420/440 series or ATI Radeon 7000/7200/7500/8500/9000 X550series |
||||
