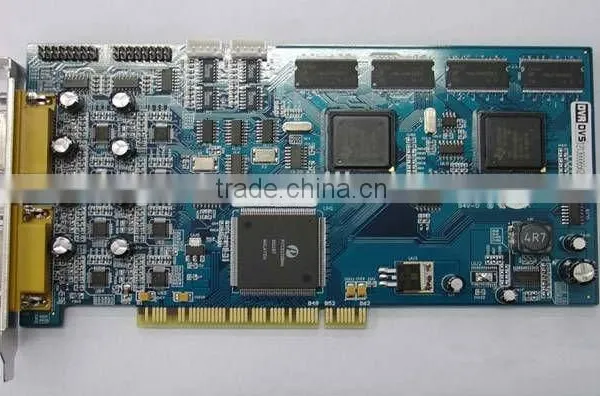

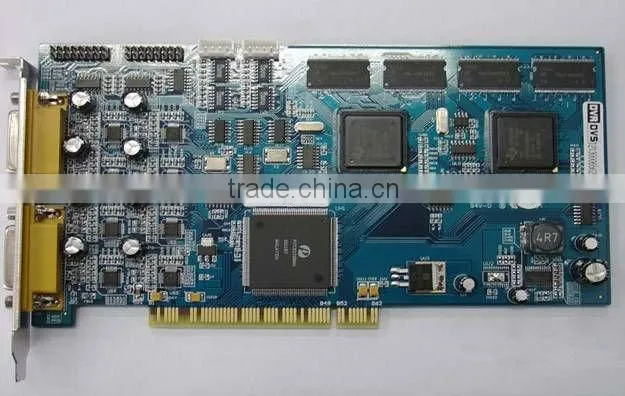

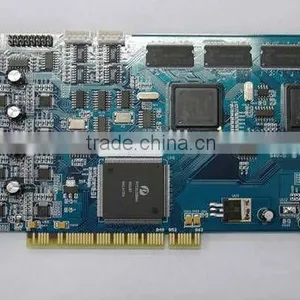

8 Channel Hikvision Board hd Dvr Card Hardware Dvr Board HK-DS4008HCI
Negotiable
/ Piece
1 Piece(Min. Order)
- shenzhen
- Credit Card PayPal
You May Like
-
16 Channel Hikvision Board Dvr Capture Card HK-DS4016HCI
-
4ch Cctv System Camera Kit Ahd Cctv Recording 1080P Cctv Camera System Home Security
-
2016 Newest 7inch LCD H.264 Network AHD/NVR/DVR
-
NEW 8 Ahd Camera 7inch LCD Screen HD AHD DVR Home Security Ahd Kit
-
NEW 7inch LCD Screen HD AHD DVR Home Security 8 Channel Cctv Camera System
-
NEW 7inch LCD Screen HD DVR h 264 Network Home Security 8 Channel CCTV Camera System
Product Details
| Place of Origin | Guangdong, China | Brand Name | Hyking | |
| Model Number | DS4008HCI |
Product Description
Specifications
hikvision hd dvr card hardware dvr board HK-DS4008HCI-H.264,8chs,
-200fps(P)/240fps(N)
-4CIF:704*576(PAL),704*480(NTSC)
8 channel hikvision hd dvr card hardware dvr board HK-DS4008HCI
Available Models:
Cards are stackable to obtain 64 channels maximum
DS4008HCI
8 channels video and audio CIF (real time)
or 8 channels video and audio 4CIF (real time)
or 8 channel DCIF (real time)
or 8 channel 4CIF(not real time)
Features & Functions :
Real-time video and audio compression, no frame lost
4CIF preview resolution
Comply with PCI 2.2 standard , a PC can support up to 64 channels
Support WINDOWS 2000/XP operating system
Setable video quality and bitrate
Setable brightness , contrast , saturation and hue of video signal
Support motion detection
Support OSD , LOGO and MASK overlay
Support watermark technology
Support double encoding Specifications:
Specifications:
Item | Specifications | ||||
Video Format | PAL and NTSC | ||||
Video Input | 8 Ch BNC (1.0Vp-p, 75ohm) | ||||
Audio Input | 8 Ch BNC (2.0Vp-p, 1Kohm) | ||||
Preview Resolution | Resolution: 704*576(PAL),704*480(NTSC) | ||||
Video Compression | H.264, Support CBR, VBR; Frame: 25F/s(PAL)30F/s(NTSC) Output32kbps-1000kbps(CIF) or 70kbps-4000kbps(4CIF) | ||||
Compression Resolution | 4CIF704*576(PAL)704*480(NTSC) DCIF528*384(PAL)528*320(NTSC) 2CIF704*288(PAL)704*240(NTSC) CIF352*288(PAL)352*240(NTSC) QCIF176*144(PAL)176*120(NTSC) | ||||
Audio Compression | OggVorbis, Sample ratio is 16KHz, Output ratio is 16kbps | ||||
Power Consumption | Less than 7W | ||||
Working Temperature | -10--50 | ||||
Working Humidity | 10--90 | ||||
Dimension | 185mm*107mm | ||||
Computer Configuration (Recommend) | Mainboard: Intel 945 or 965 Chipset Memory: 512MB Display Adapter: Geforce Mx400/420/440 series or ATI Radeon 7000/7200/7500/8500/9000 X550series | ||||
