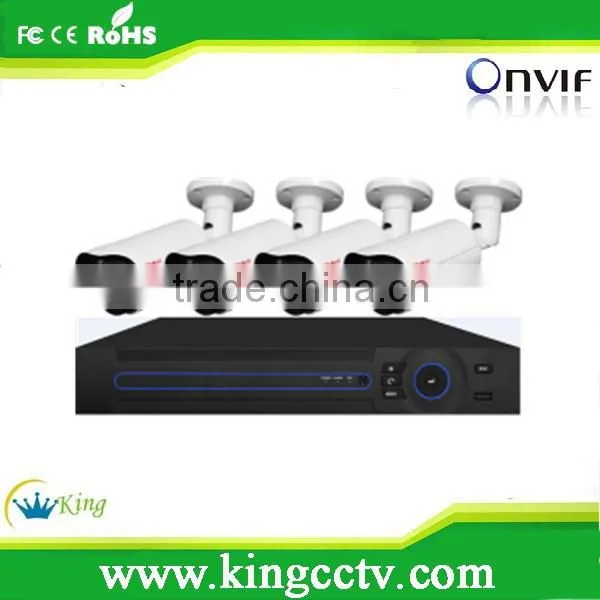

4ch Cctv System Camera Kit Ahd Cctv Recording 1080P Cctv Camera System Home Security
US$ 132 - 145
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hyking
Model Number:
AHD3404PD-KIT01
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 Newest 7inch LCD H.264 Network AHD/NVR/DVRUS$ 60 - 69MOQ: 1 Piece -
NEW 8 Ahd Camera 7inch LCD Screen HD AHD DVR Home Security Ahd KitUS$ 170 - 250MOQ: 1 Set
-
NEW 7inch LCD Screen HD AHD DVR Home Security 8 Channel Cctv Camera SystemUS$ 170 - 250MOQ: 1 Set
-
NEW 7inch LCD Screen HD DVR h 264 Network Home Security 8 Channel CCTV Camera SystemUS$ 170 - 290MOQ: 1 Set
-
Economical and Cheap Ipc Surveillance System4 Cameras 1080P NVR System KitsUS$ 200 - 300MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Hyking
Model Number
AHD3404PD-KIT01
4ch cctv system camera kit ahd cctv recording 1080P cctv camera system home security
W What is the Feature of our Products?
• H.264 Video compression
• AHD/NVR/DVR Three-in-one
• Support multi-mode switch
• AHD: 4CH*720P
• AHD+Analog: 2CH*720P
• IPC: 4CH*720P
• Playback resolution: 1CH AHD 720P@25fps
4ch D1@100/120fps
4ch 720P IPC@100/120fps
W What is the Specifications of our products?
| AHD3404LE | |
| Video/Audio input | |
| Video compression | H.264 |
| Analog video input | 4PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
| Audio compression | ADPCM |
| Audio input | 4PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
| Two-way audio input | 1PCS RCA Port( line level , impedance : 1kΩ) |
| Video/Audio output | |
| Multi-mode switch | AHD: 4CH*720P AHD+Analog: 2CH*720P+2CH Analog: 4CH*960H IPC: 4CH*720P |
| HDMI/VGA output | 1024x768,1280*720,1280x1024 |
| CVBS output | 1PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
| Encoding resolution | D1/CIF/720P/960P |
| Frame rate | NTSC:1~30FPS/S;PAL:1~25FPS/S |
| Video bit rate | 256KB/384KB/512KB/640KB/768KB/1MB/1.5MB/2MB/2.5MB/3MB/4MB/5MB/6MB/8MB |
| Audio output | 1PCS RCA Port( line level , impedance : 1kΩ) |
| Audio bit rate | 16kpbs |
| Dual-stream | YES |
| Stream type | combine streams/ video stream |
| Playback resolution | 1CH AHD 720P@25fps 4ch D1@100/120fps 4ch 720P IPC@100/120fps |
| Synchronous playback | D1/CIF/720P/960P |
| Hard disk | |
| SATA | 1*SATA |
| eSATA | No |
| Capacity | each port support max 4TB HDD |
| External interface | |
| Network interface | 1PCS RJ45 10M / 100M adaptive Ethernet port |
| Serial interface | 1PCS RS485 |
| USB interface | 2*USB2.0 |
| Alarm in/out | NO |
| General | |
| Power supply | DC12V |
| Comsumption | ≤12W |
| Working temperature | -10℃--+55℃ |
| Working humidity | 10%--90% |
| Chassis | 0.8U |
| Dmensions(W×D×H) | 255*215*45mm |
| Weight | 0.86kg |
