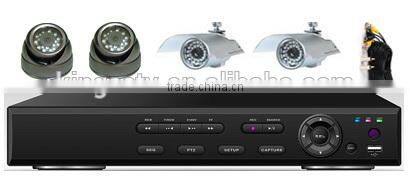

4Cam H.264 CCTV DVR System Kit

4Cam H.264 CCTV DVR System Kit thumbnail-1
4Cam H.264 CCTV DVR System Kit photo-1
US$ 1 - 2,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hyking
Model Number:
HK-S2204F-kit
Contact Supplier Request Quote Chat Now
Shenzhen KingCCTV Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hyking
Model Number HK-S2204F-kit

Specifications

1 piece of DVR: HK-S2204F
2 pieces of day night IR cameras: HK-F312
2 pieces of IR cameras: HK-S312

H.264 16 Cameras DVR Surveillance System Kits:
HK-S8016F+BG312*8+S312*4+H312*3+GV8272*1 ($1759.00 Only)



4Cam H.264 CCTV DVR System Kit

DVR Specifications:

Model/Item
HK-S8016F
Compression Format
H. 264, supports VBR as well as CBR
Operating system
Embedded real-time operating system (RTOS)
Video Input
BNC x 16,1.0VP-P,75¦¸
Video Output
A composite video output,A VGA output
Audio Input
-8dB---22k, RCA x 16
Audio Output
-8dB---92dB, RCA x 1
Display Frame Rate
704x576 (PAL), 704x480 (NTSC)
Record Resolution

352*288(PAL)
352*240 (NTSC)
Display Frame Rate
400fps(PAL)
480fps(NTSC)
Recording Frame Rate
400fps(PAL)
480fps(NTSC)
USB
YES
Alarm Input
NO or NC, 9CH
Alarm Output
NO or NC, 4CH
Recording Mode
manual video,timing video,motion detection video and warning video
Network Interface
RJ45 10M/100M(LAN, Internet),Support TCP/IP agreement,PPPOE
PTZ Control
RS485
HDD
Support 8 SATA
Backup
SATA,Network
Storage Temperature& Humidity
-20--65 °C; / 20-95% RH (No Condenser)
Operation Temperature& Humidity
-10--55 °C; / 20-80% RH (No Condenser)
Power Adapter
220/110V, 50/60HZ
Dimension (L x W x H)
440x435x97 mm
Weight
Gross weight:10kg ;
Net weight:8kg





  High Speed Dome Camera Specifications:

4Cam H.264 CCTV DVR System Kit



  • level running: 360° continuous revolve, 180° auto flip.
  • Rotate speed : 0.5°/S-280°/S level shift, 0.5°/S-280°/S upright shift.
  • Presets points quantity: 128pcs program speed and stick time.
  • Cruising Route:8 groups multiple cruise, max to 16 preset points every group.
  • Manual menu: OSD menu
  • Private zone masking: can set by yourself.
  • Proportional zooming: six grade.
  • Auto-reset: can set by yourself.
  • Baud rate: 1200/2400/4800/9600 optional.
  • Control protocol: Multi-Protocols.
  • Power supply: 24VAC 3A .
  • Temperature Operation :-40°-60° .
  • Installation option: Wall mounting bracket, Suspending installation bracket, in- ceiling.

Main Features of Standalone DVR:

(1) The video compression is H. 264, supports VBR as well as CBR
(2) Can set up video picture quality and compression yard
(3) Adopt high performance criterion of embedded real-time multiple operating system (RTOS) and embedded processor
(4) All the codes are embedded in FLASH that the system is steadier and will not be interfered by external factors such as virus etc.
(5) Audio and alarm inputs / outputs
(6) Support PAL/NTSC4. 43/NTSC3. 58 video signals
(7) Recording resolution:352x240 (NTSC),352x288 (PAL)
(8) 6 kinds of record image quality for choosing
(9) Support TCP/IP agreement (support ARP, RARP, IP, TCP, PPPOE, DHCP, etc.)
(10) Support PPPOE, dial automatically again at the same time and support domain name mapping
(11) Support Manual video, timing video, motion detection and warning video
(12) USB Port:USB function for H6008AL and H6016AL
(13)  Client PC can record compressed data stream, support record audio and video signals into the computer directly through Internet
(14) No.16 host computer allocate to 4 IDE channel separately, can drive 8 IDE hard disk at the same time
(15) Port of SATA at a high speed, more convenient to join

Kits Cautions:

1. Check electricity at the place you want to install the DVR unit is stable and meets our electricity requirements. Unstable electricity will cause malfunction of the unit or give critical damage to the unit.
2. Several chips on the main board of the DVR unit and hard disk drive inside the unit generate heat, and it must be properly discharged. Do not put any objects just beside exhaust port on the left side of the unit and do not close up an opening on the right side of the unit.
3. Put the DVR unit at well-ventilated place and do not put heat-generating objects on the unit. When it is installed inside 19 inch mounting rack together with other devices, please check built-in ventlation fan of the rack is properly running.



Item Includes:

1 x 16chs H.264 Digital Video Recorder: DVR HK-S8016F
1 x Manual for S8016F
1 x Speed Instruction Manual for DVR HK-S8016F
1 x CD software for DVR HK-S8016F
1 x Remote Controller
8 x 1/3" inch Sony Chip, 420TVL, Security CCTV Wired CCD Color Dome Camera:HK-BG312
4 x 1/3" inch Sony Chip, 420TVL, Security CCTV Wired CCD Color IR Dome Camera:HK-S312
3 x 1/3" inch Sony Chip, 420TVL, Security CCTV Wired CCD Color 50M IR Camera:HK-H312
1 x 1/4" inch Sony Chip,480TVL,270 zoom function,High Speed Dome Cameras:HK-GV8272.
12 x 12V1A DC Power Supplier
3x 12V1.5A DC Power Supplier
1x 24V2A AC Power Supplier
