LINK-MI LM-WPS41 HDMI/VGA/USB/Composite Video 4 By 1 HD Video Mixer Controller
Model NO.:LM-WPS41
Key word: 4x1 HD Video chatacter superimposer
Introduction
LM-WPS41 4x1 HD Video Scaler Switch is a multi-function video processor. The device 4x1 HD Video Scaler Switch With HDMI VGA CVBS USB supports characters superimposed, multiple signal scaler switching, signal format conversion, image turned 180 degree, image cut, image compression and so on.
This product 4x1 HD Video Scaler Switch supports 1xComposite Video ( CVBS ), 1xVGA, 1xHDMI, 1xUSB signals input, 1xHDMI and 1xStereo Audio signal output. The video resolution supports up to Full HD 1920x1080@60Hz, and all input signals support audio and video synchronous switching.
Main feature
1. HD Scaler Function
LM-WPS41 supports 1xComposite Video, 1xVGA, 1xHDMI and 1xUSB signal input, all input signals are embedded or bound external audio.
1x HDMI and 1x 3.5mm audio output ports, can controlled by Infrared Remote or Control software to select one of 4 different signal input sources and switch to 1 output display, support audio and video synchronous switching.
2. Characters Superimposed Function
Setting the control software to achieve input any Chinese or English Characters superimposed to display unit, and can set freely to achieve the effect of a variety of characters, as below:
Font Color can be chosen: Red, Green, Yellow, Blue, Black and White;
Background Color can be chosen: Red, Green, Yellow, Blue, Black, White and Transparent;
Subtitles Switch: Quickly select subtitle display to be on or off
Text Sizes: Change the size of the characters superimposed, divided into large, medium and small adjustable
Text Position: Divided into up and down, define the characters displayed on the top or bottom of the images
Font Speed: the font moving speeds have stationary, medium and fast three mode optional
3. 180 degree Rotation function
Supports 180 degree mirror image rotation and can be set via infrared remote controller
4. Image Clipping function
Users can clip any part of the input signal and zoom it into the display unit for a Full-screen display according to their requirements
5. Image Compressed function
In some special situation, need to compress the input image to output for a normal use, like LED display whose resolution is irregular usually. When need to display a full-screen computer desktop, it must be compressed the input signal.
6. U-Disk play function
This product supports USB port, users can play videos, images, TXT Document and MP3 inside the U-disk by easily inserting it. Many place do advertising, products exhibitions just only need to play some videos or some images, so that only a U-Disk can be, and not need PC or media player, more simple and convenient.
U-Disk play function as below:
Play videos, images, TXT document and MP3 inside the U-Disk
Videos or Images support to select part or all of the contents to play;
Support round-robin play;
Supports previous, next , pause and play controlled by infrared remote controller;
Supports images variety of play mode, such as fade, blind, etc.
Specification
Product Name |
4x1 HD Video Scaler Switch |
Input Signal | |
VGA Signal |
HD15 pin port, with 1x 3.5mm Stereo audio port. Supports 640*480 /85Hz to 1920*1080 /60Hz |
HDMI Signal |
HDMI 1.4, HDCP 1.3, DVI 1.0, HDMI Embedded audio |
Video Signal |
Automatically identify NTSC, PAL or SECAM TV formats, and with 1x 3.5mm audio port |
USB ( U-Disk ) |
Standard USB 2.0 port, can insert U-Disk, embedded audio, supports Video, image, MP3, TXT document formats |
Output Signal | |
HDMI Output |
1x HDMI output, supports 1920x1080p/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Audio Output |
3.5mm Audio, supports L/R Stereo audio, Video and Audio synchronous switching |
Others | |
Control mode |
Infrared Remote Controller, RS232 |
Power Supply |
DC 12V |
Power Consumption |
≤10 watts |
Chassis Specifications | |
Dimensions( L*W*H) |
238*129*27mm |
Weight |
0.65kg |
Connection and Operation

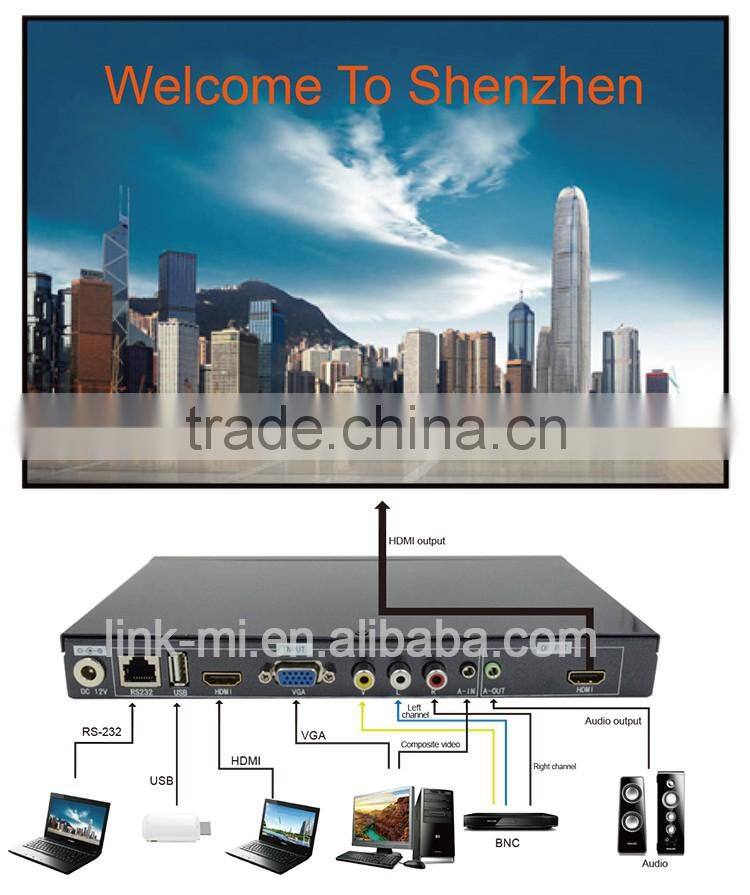

Connection diagram

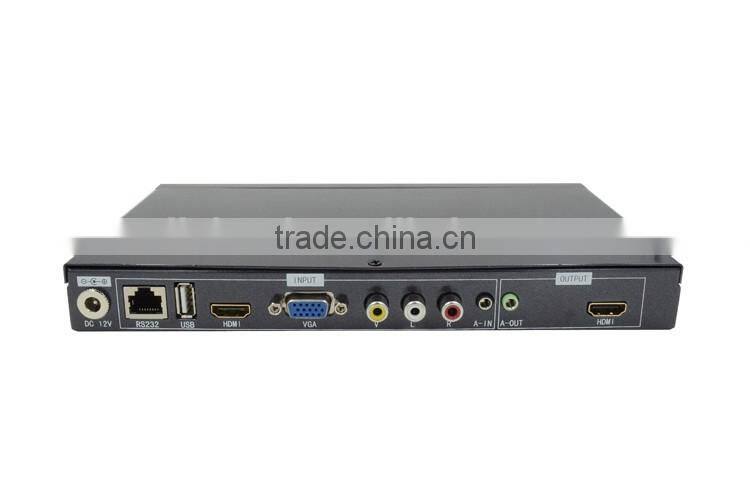

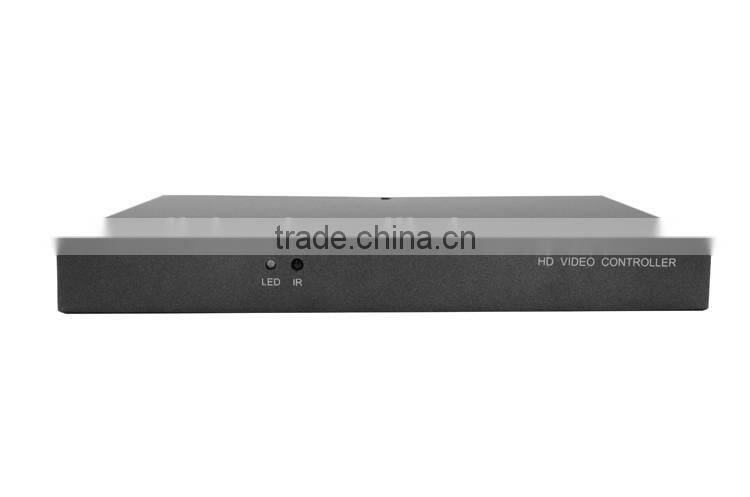

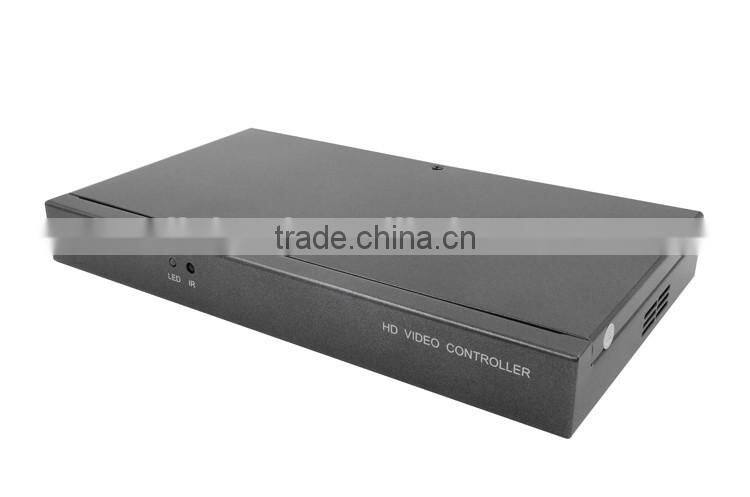

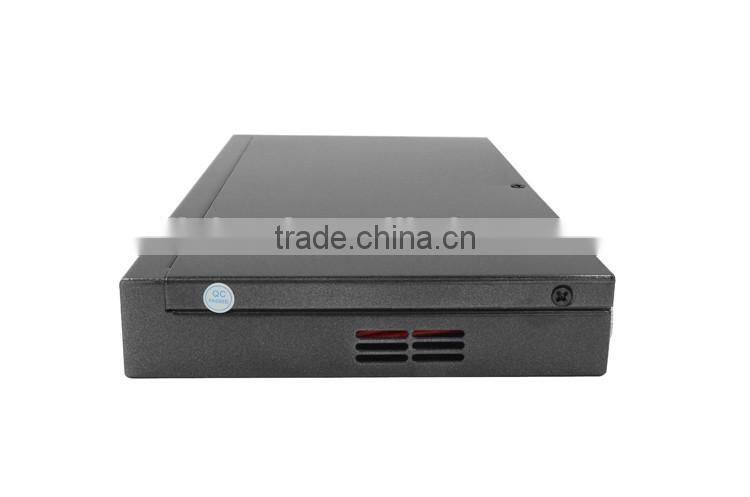

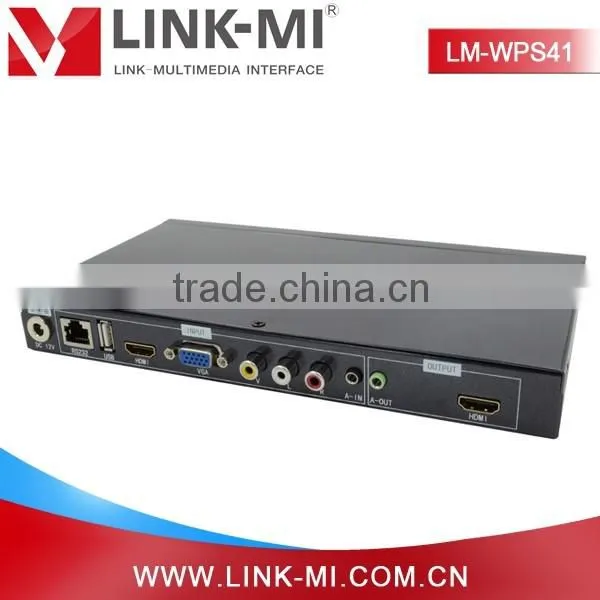

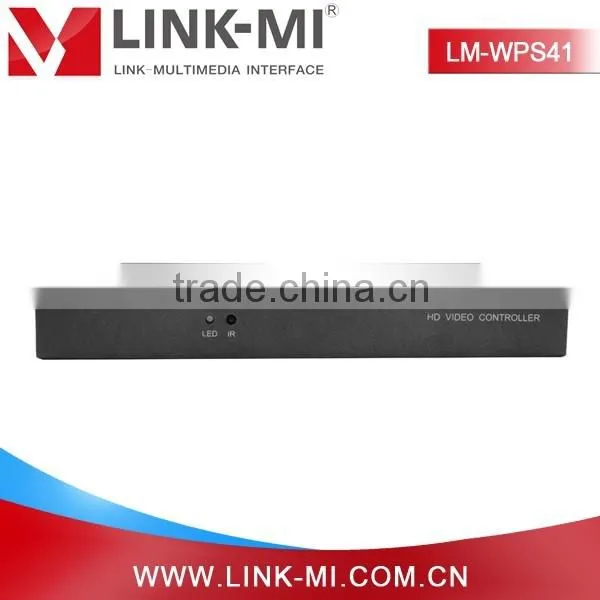

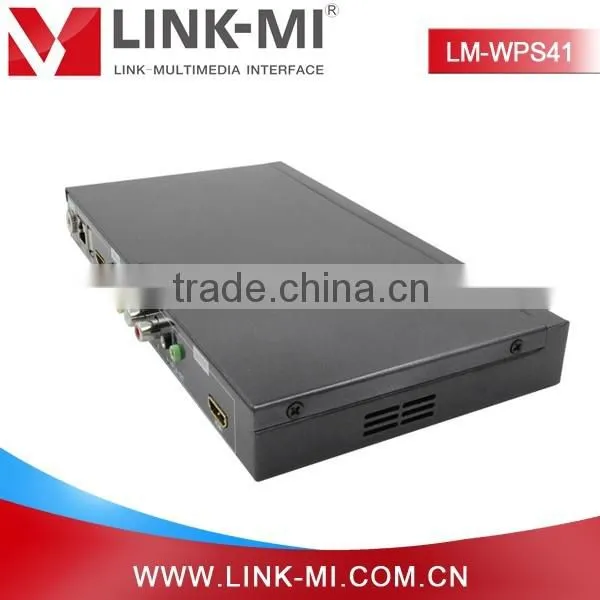

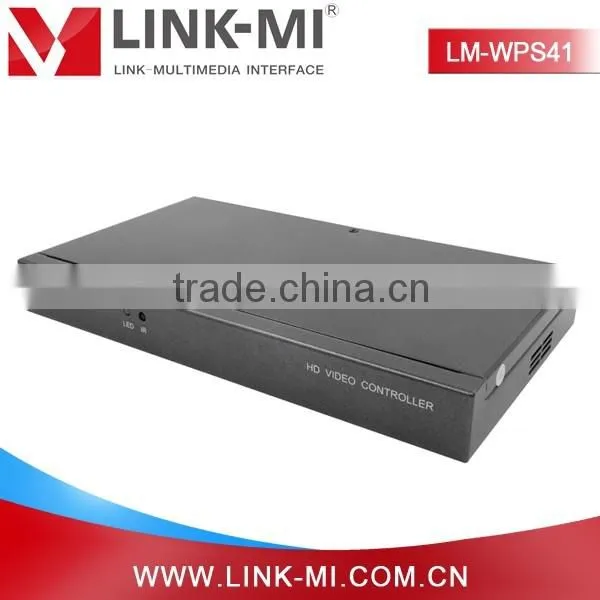

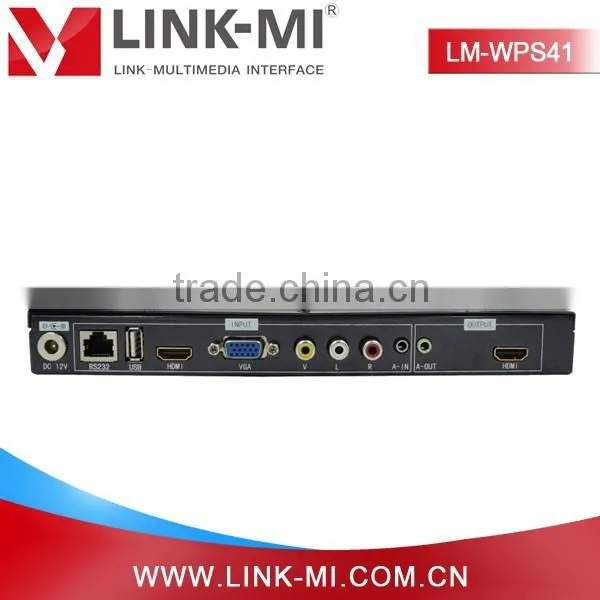

Product Image

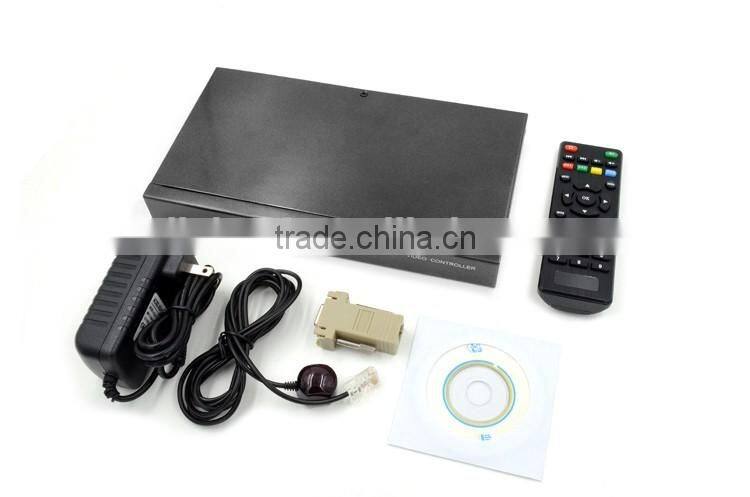

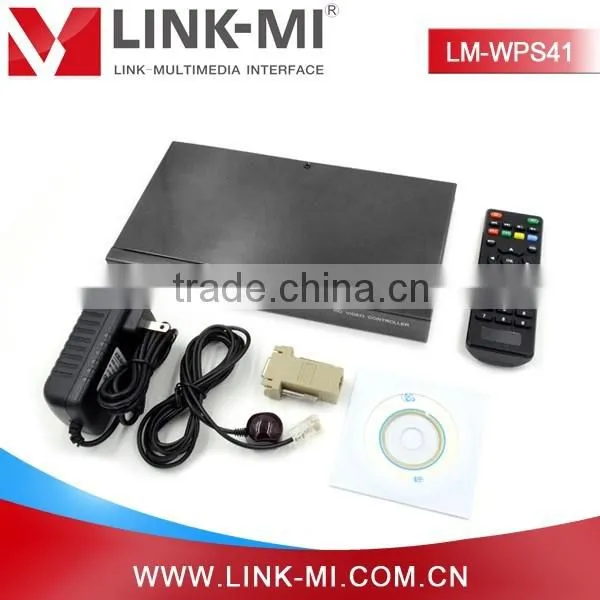

Packing Contents
1. Main Unit. 1pcs 4x1 HD Video Scaler Switch
2. 1pcs Remote Controller
3. 1pcs DC Disk
4. 1pcs Power Adapter
5. 1pcs IR Cable
6. 1pcs VGA Adapter
7. 1pcs User Manual
