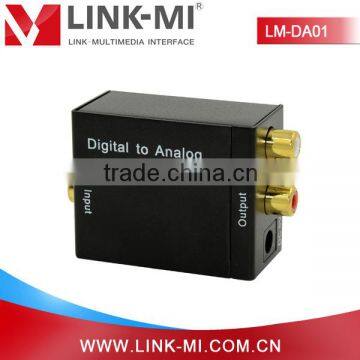

China LM-DA01 SPDIF to RCA L/R Adapter,DAC Digital Audio to 5.1 Converter

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shenzhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	LINK-MI/OEM		Model Number	LM-DA01
Place of Origin	Guangdong, China

Product Description

digital audio to 5.1 converter

LM-DA01 Digital To Analog Audio Converter is a high quality audio converter, designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA-style jacks. This Converter is small in size and quite easy to install.

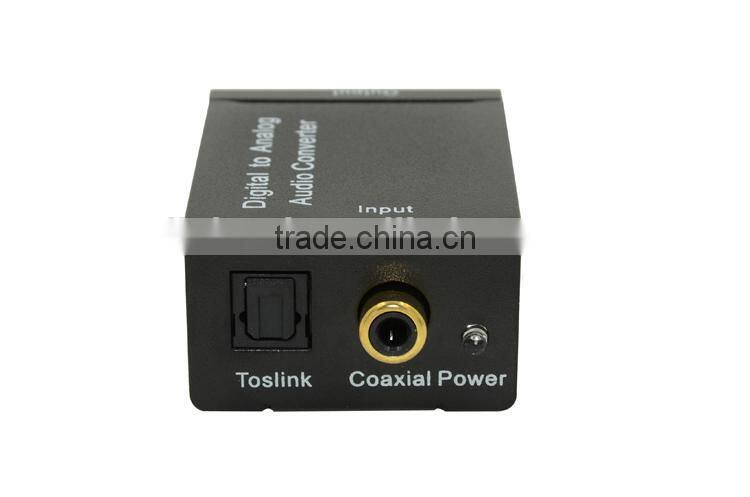

Alibaba China LM-DA01 SPDIF to RCA L/R Adapter,DAC Digital Audio to 5.1 Converter

Model Number: LM-DA01

Keywords: digital audio to 5.1 converter

Product Description

FEATURES

1. Converts Coaxial or Toslink digital audio signals to analog L/R audio

2. Supports sampling rate at 32, 44.1, 48 and 96 KHz.

3. 24-bit S/PDIF incoming bit stream on left and right channels

4. Provides electromagnetic-noise-free transmission.

5. Easy to install and simple to operate.

SPECIFICATIONS

Product Type	Digital To Analog Audio Converter
Model No.	LM-DA01
Input Audio Signal	Coaxial or Toslink digital audio
Output Audio Signal	L/R audio
Input audio connector	Toslink,1XRCA(Coaxial)
Output audio connector	2XRCA(R/L)
Sampling rate	32, 44.1, 48 and 96 KHz
Operating Temperature	0 °C to +70°C
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10°C to +80°C
Storage Humidity	5% to 90 % RH (no condensation)
Size ( LWH )	514126mm
Net Weight	78g
Power Supply	DC 5V 1A
Power Consumption	0.5 watts ( Max. )

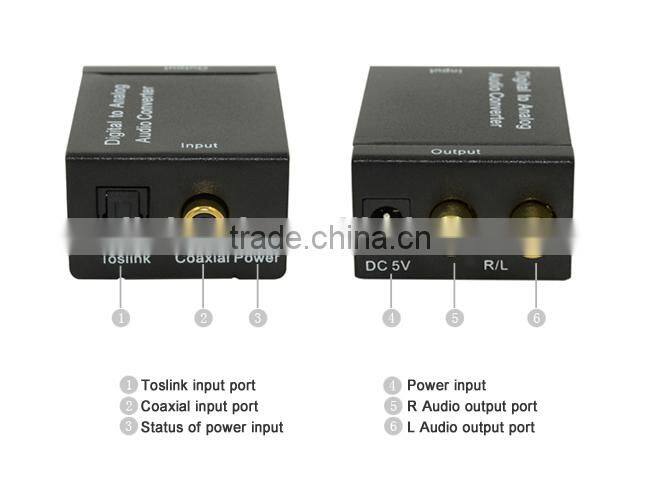

Product Introductions

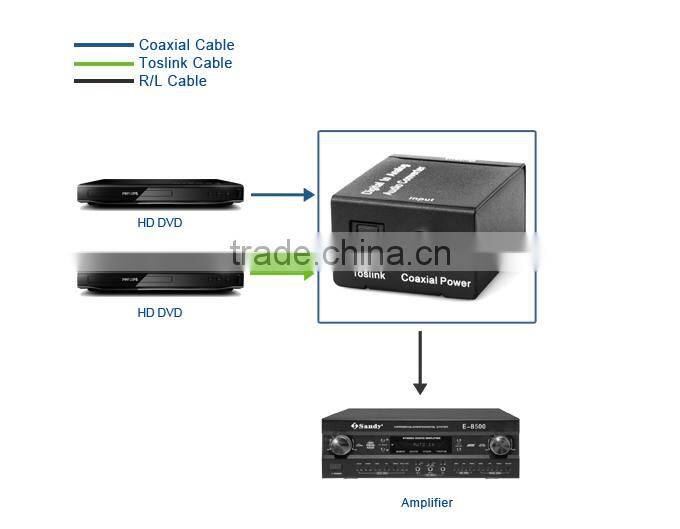

Connection Diagram

Connection and Operation:

1. Connect the audio source device to the converter using appropriate Toslink or Coaxial Cables;

2. Connect the A/V Receivers or Amplifiers to the converter using appropriate R/L Cable;

3. Insert the DC Side of 5V power supply into the converter and then connect the AC side of the power supply into the wal outlet.

Note: When connected to the Toslink and Coaxial cables at the same time, the product will give priority to Toslink input.

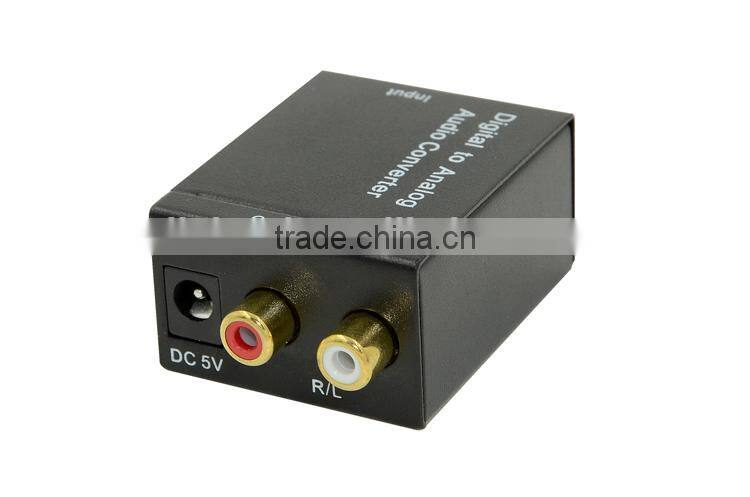

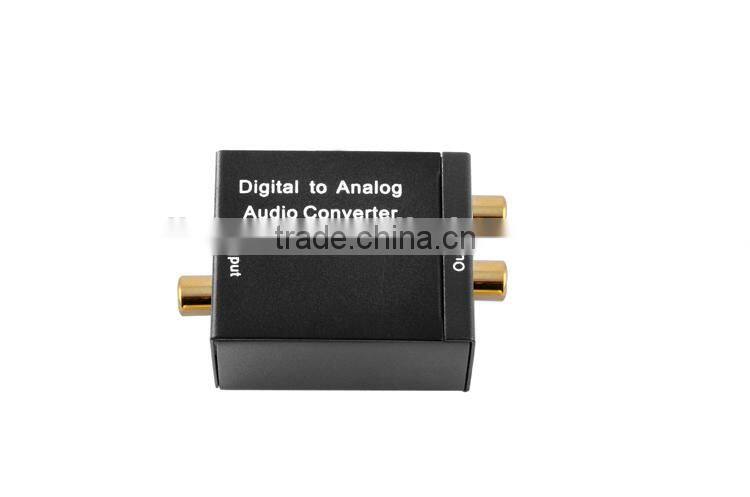

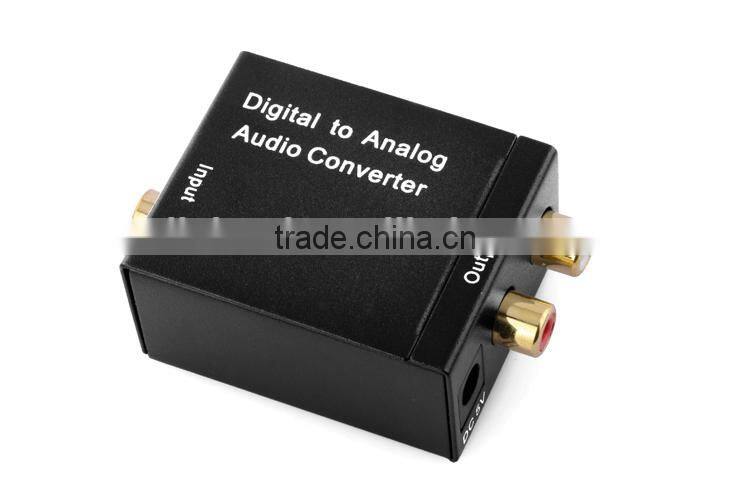

Product Display

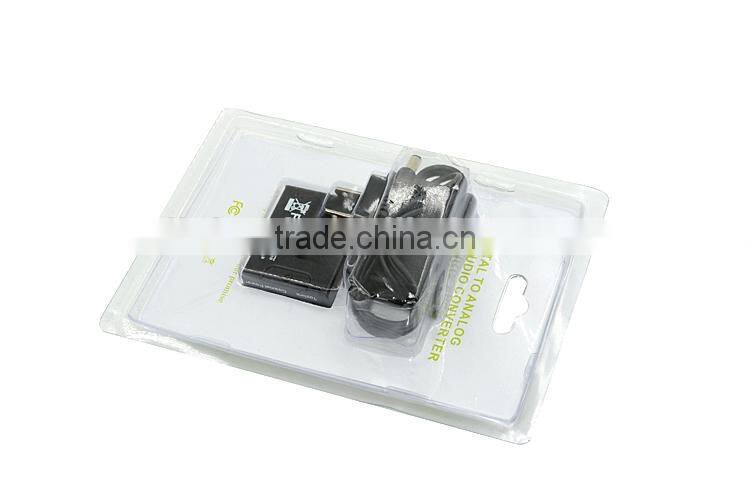

Packaging & Shipping

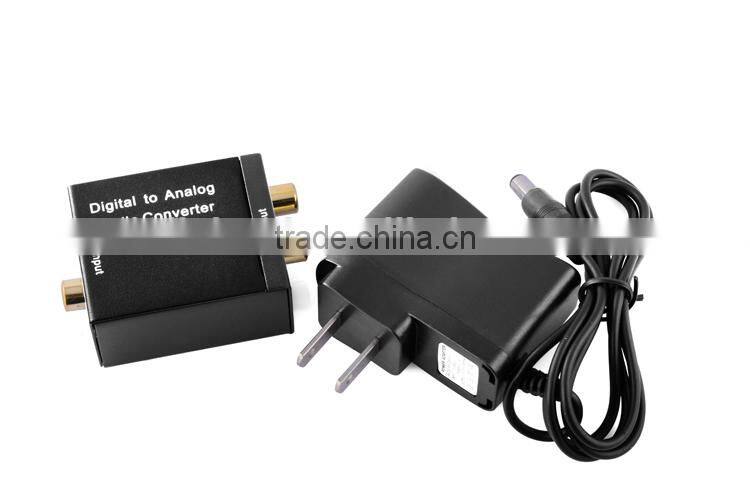

PACKING CONTENTS: Alibaba China LM-DA01 SPDIF to RCA L/R Adapter,DAC Digital Audio to 5.1 Converter

1. Main Unit. Digital To Analog Audio Converter

2. Power Adapter: DC 5V

3. User's manual
