LINK-MI LM-HT201HKM 100m 4K 3D HDBaseT HDMI KVM Extender With USB
Model No.: LM-HT201HKM
Product Type: HDBaseT HDMI KVM Extender
Keyword: HDBaseT HDMI KVM Extender
HDBaseT HDMI KVM Extender With USB
Introduction
The LM-HT201HKM HDBaseT HDMI KVM extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 4K×2K, RS232 and KVM signal transmission function. The HDBaseT HDMI KVM extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
1. Transmits HDMI video signals up to 100m over a single CAT6 cable;
2. Support video resolution up to 1920×1080P@60Hz and 4K×2K;
3. Support HDBaseT technology;
4. Support KVM, keyboard and mouse signal transmission;
5. Support RS232 signal bidirectional transmission, baud rate self-adaptive;
6. Compliance with HDMI 1.4 and HDCP 1.2 standard;
7. High compatibility, can auto-match source and display device;
8. Built-in automatic adjustment system, make the image smooth, clear and stable;
9. Built-in ESD protection system;
10. Simple to install, plug and play
Specification
Parameter |
Description |
|
Video |
Standards |
HDMI 1.4; HDCP 1.2 |
Maximum pixel clock |
165MHz |
|
Maximum data rate |
10.2Gbps |
|
Resolution |
1920×1080P@60Hz,4K×2K |
|
Connector |
HDMI-A |
|
Impedance |
100Ω |
|
RS232 |
Interface |
Industrial terminal |
Signal direction |
Bidirectional |
|
Baud rate |
Self-adaptive, Max:115200bps |
|
Data bits |
8 |
|
KVM |
Interface |
PC: MINI-USB Keyboard and mouse: USB-A |
Ethernet |
Interface |
RJ45 |
Transmission distance |
1080P: CAT6---100m 4K×2K: CAT6---70m |
|
Other |
Power supply |
The power adapter: DC 5V/2A |
Power dissipation |
MAX 6W |
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
Humidity |
Operating: 5% ~ 90% |
|
Dimension |
105×76×27mm |
|

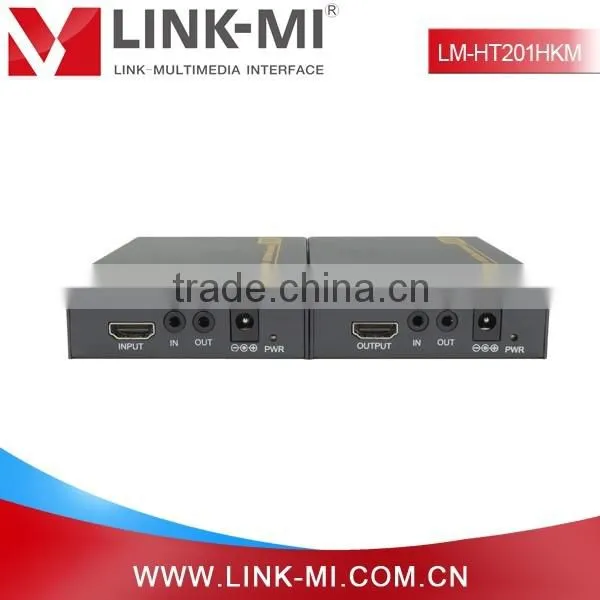

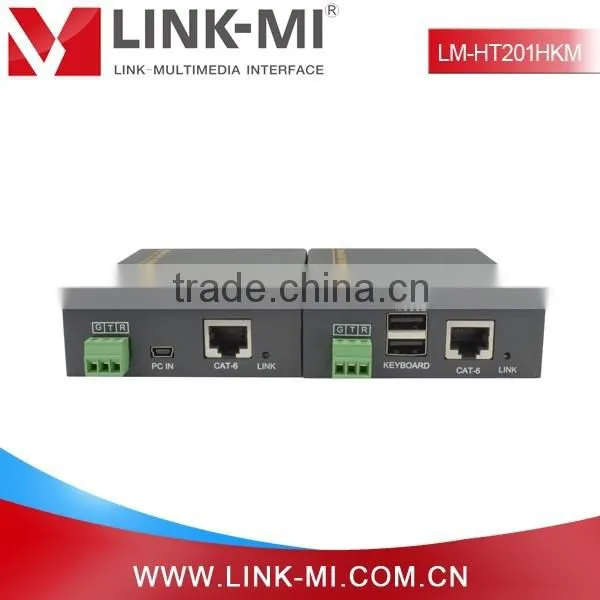

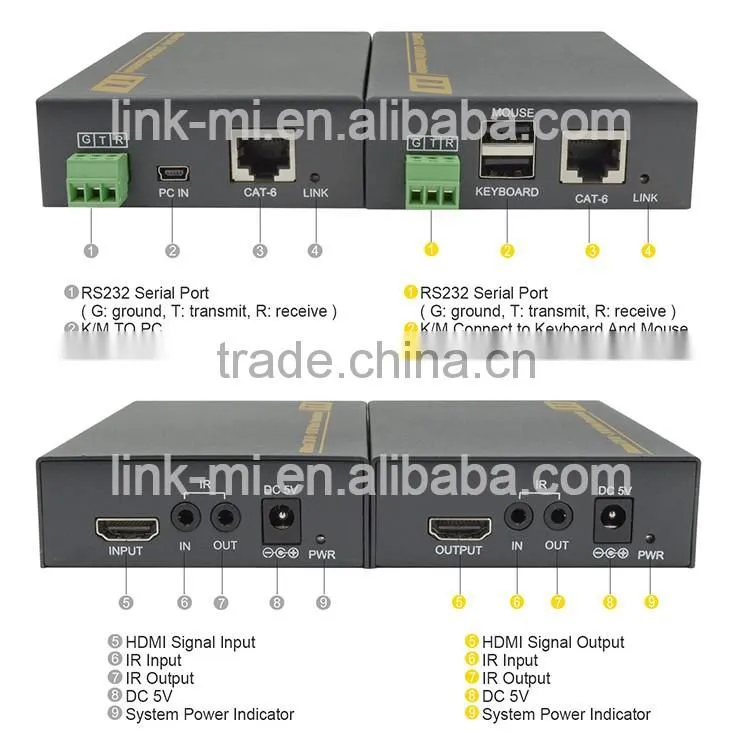

Panel Description

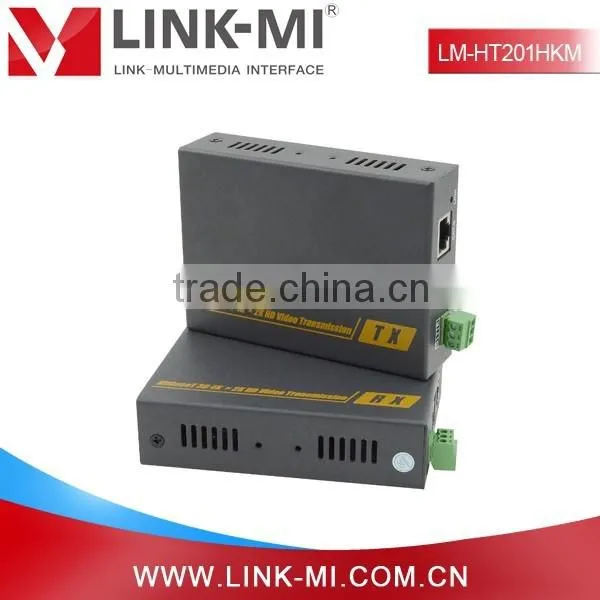

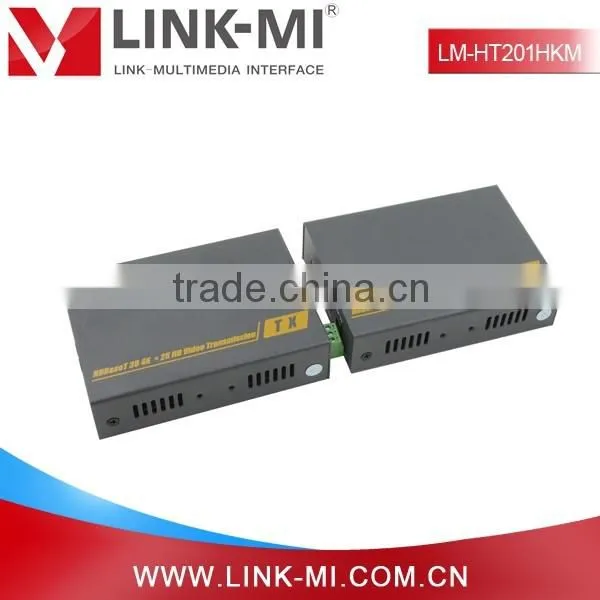

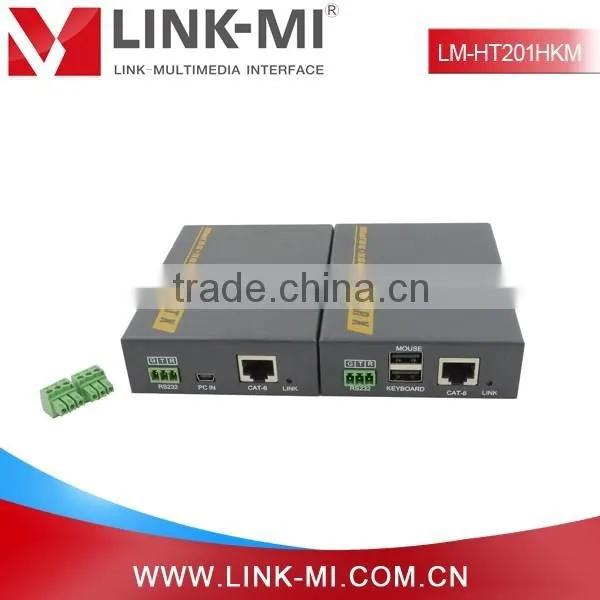

Product Overviews
Connection and Operating
1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
2. Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
3. Connect the HDMI output port of receiver to the display device with HDMI cable,
4. Connect the transmitter RJ45 port to the receiver RJ45 port using a single CAT6 cable.

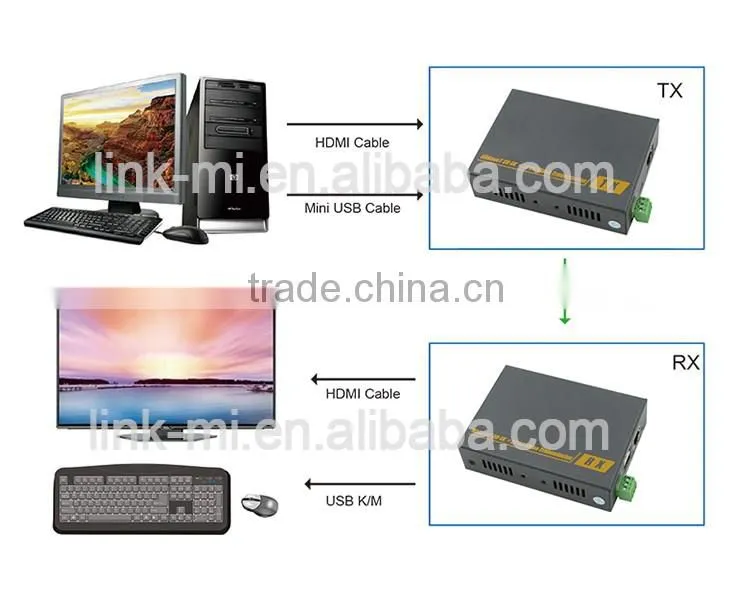

Connection Diagram

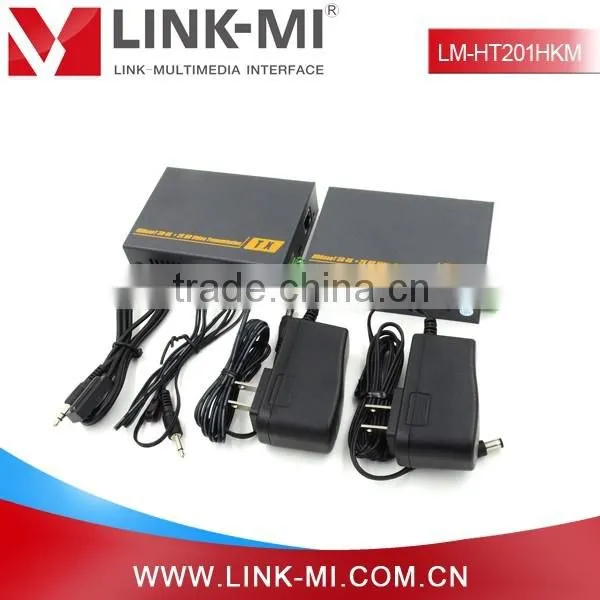

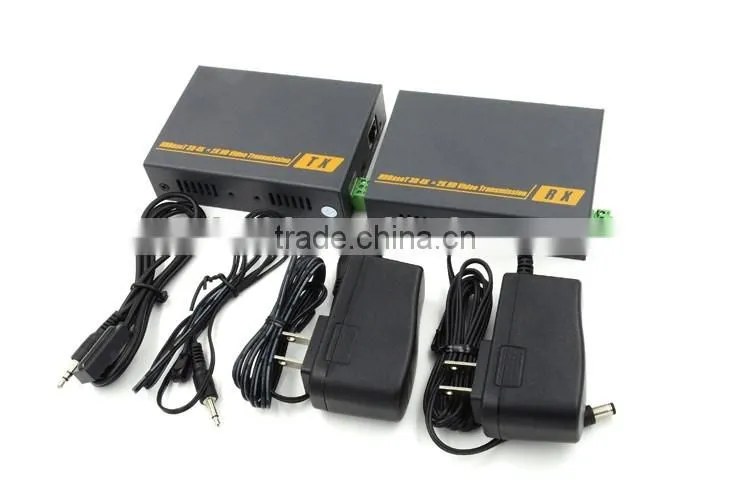

Packing Contents
1. 1pcs HDBaseT HDMI KVM transmitter
2. 1pcs HDBaseT HDMI KVM receiver
3. 2pcs Power adapter
4. 1pcs User manual
5. 1pcs MINI USB cable
