Specification
HDMI to AV Converter
♦ 1 HDMI Input, 1 AV Output
♦ Support NTSC and PAL
♦ Compliant HDCP
LM-HCS1 Audio Video HDMI to AV Converter, HDMI to RCA Converter Support NTSC and PAL Up to 1080p
Introduction: HDMI to AV Converter
LM-HCS1 HDMI to AV Converter which have a HDMI input and Power input ports, AV Video output and audio output ports, supports PAL, NTSC two standard TV format. This HDMI to AV Converter supports HDMI input resolution up to 1080p @ 60Hz, AV output resolution 480i and 576i, and
compliant with HDCP.

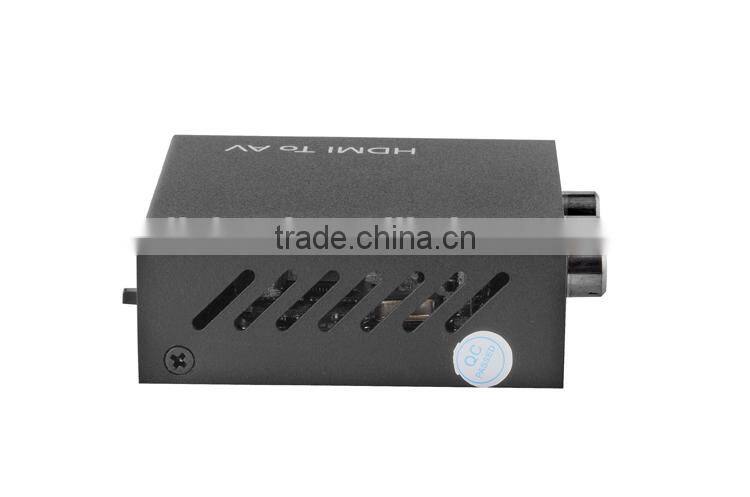

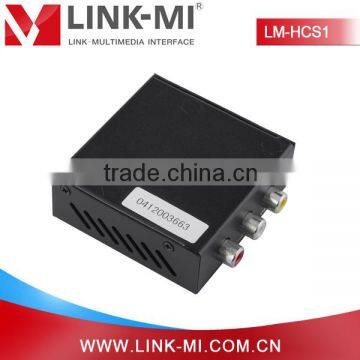

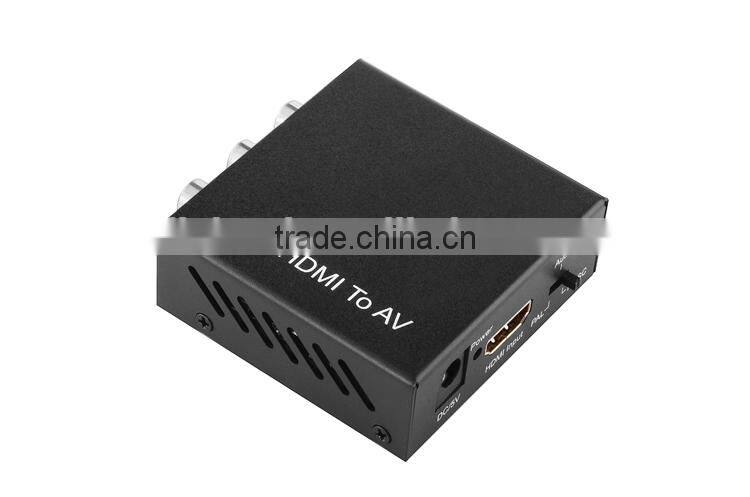

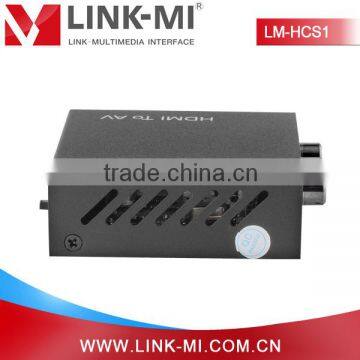

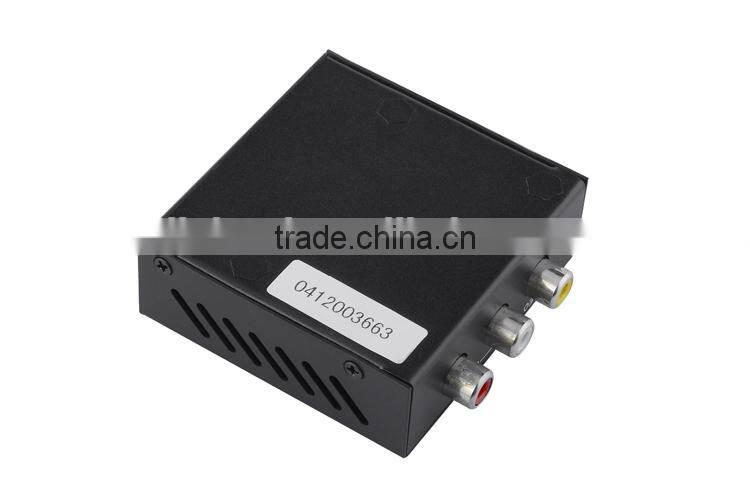

Product Picture: HDMI to AV Converter
Model No.: LM-HCS1
Product Type: HDMI to AV Converter
HDMI to AV Converter
Features: HDMI to AV Converter
♦ Supports NTSC and PAL two standard TV formats .
♦ Input: HDMI x 1
♦ Output: AV x 1
♦ HDMI Input: 480P, 576P, 720P, 1080i, 1080P @60Hz
♦ CVBS Output: 480i, 576i
♦ Audio Output: L/R channels
♦ Hardware conversion, plug and play without any software drive
♦ Compliant HDCP
♦ Uses 5V power
Specification: HDMI to AV Converter
Operating Temperature Range |
-5 to +35℃(+23 to +95℉) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Video Formats |
HDMI |
480P, 576P, 720P, 1080i, 1080P @60Hz |
CVBS |
480i, 576i
|
|
Input |
HDMI |
|
Audio Outputs |
L/R channels |
|
Video Output formats |
PAL,NTSC_M,(NTSC_J) |
|
HDCP |
Compliant HDCP . |
|
Power consumption |
1watts(Maximum) |
|
Dimension (L×W×H) |
63.8*60.9*21.9mm |
|
Net Weight |
98g |
|

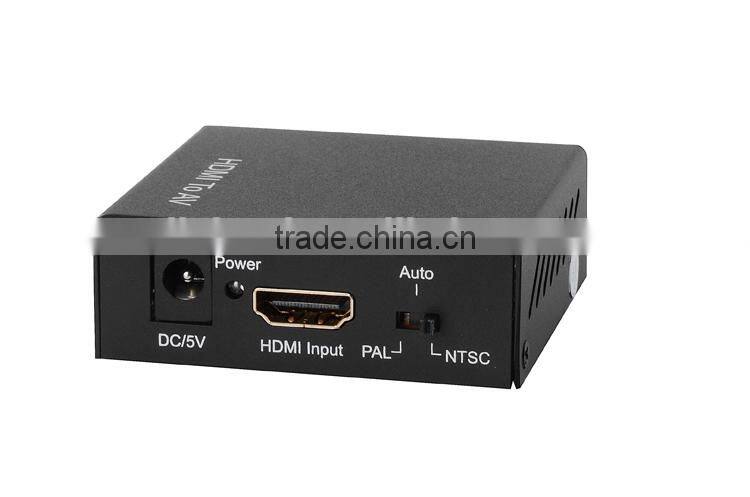

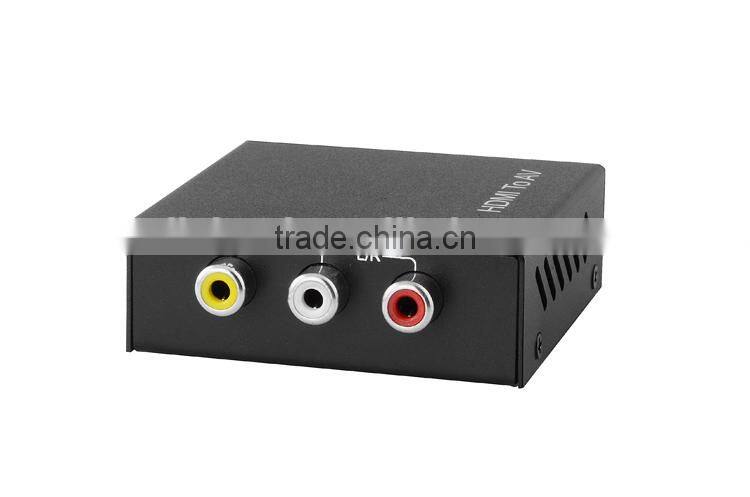

Panel Description: HDMI to AV Converter

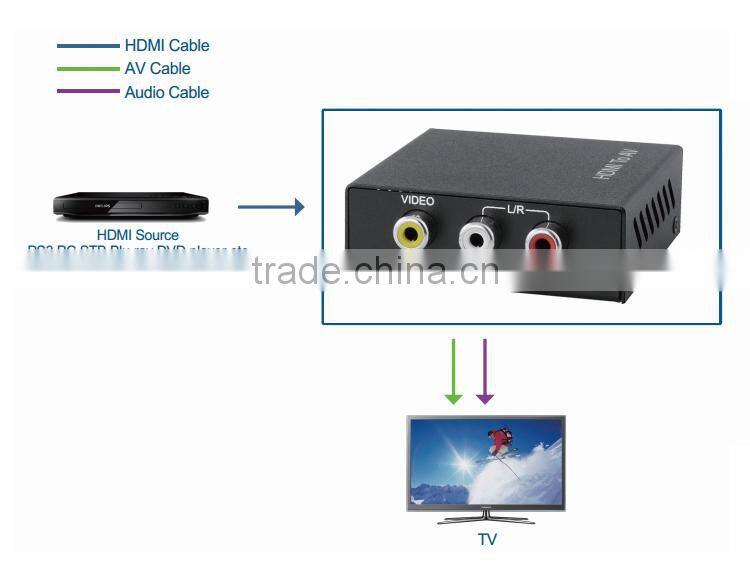

Wiring Diagram: HDMI to AV Converter
Packing Contents: HDMI to AV Converter
♦ Main Unit. HDMI to AV Converter
♦ DC5V 1A Power Supply
♦ Operating Instructions
