LINK-MI LM-MH31 4K2K HDMI Converter Switcher 3X1 With Audio Amplifier Support PIP and MHL Function
LINK-MI LM-MH31 4K HDMI Switcher 3X1 with Audio AmplifierSupport PIP and MHL function
Introduction
This HDMI switcher 3x1 allows 3 HDMI sources to be switched to a single display terminal by remote control or buttons on switch.Support picture-in-picture (PIP ) video preview, which makes it simple and intuitive to switch.The HDMI 1 input support HDMI/MHL dual-mode,available for the equipments with MHL interface. The resolution of this HDMI switcher is 3840X2160/30Hz.
In addition, the switcher can strip audio signal from HDMI signal, output via optical fiber, coaxial, and 3.5 mm headphone.Support heavy bass,integrating Amplifier,let users enjoy the excellent audio experience.
Features
1.Support HDMI1.4b
2.Support 3D video format
3.Support the resolution up to 3840X2160/30HZ
4.Support 3.2Gbps data rate for TMDS clock up to 320MHz
5.Support 8/10/12 bit deep color
6.Support 2.1 audio signal power amplifier,up to 30W
7.Support heavy bass
8.With headphone both input and output,which support 2.1 audio channel
9.With Optical and coaxial audio inputs,which support 5.1 audio channel
10.Optical audio input
11.Picture-in-picture (PIP ) function
12.Switched seamlessly, Switch one input source to the other quickly
13.Support HDMI/MHL dual-mode input
14.12V/5A power supply
Specifications
HDMI version …………………………………………...….... HDMI 1.4b
HDMI resolution ………………………………........…...…up to 3840x2160/30Hz
Support video format …………………..….... 8/10/12 bit deep color
Support audio format……………....DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth………………………....320MHz
Max Baud rate……………….…….…...3.2Gbps
Input cable distance..…(1080P mode)≤12M,(4K mode)≤10M AWG26 HDMI standard cable
Output cable distance...(1080P mode)≤20M,(4K mode)≤12M AWG26 HDMI standard cable
Max working current……………………………....2.38 A
Power adapter format ………...Input:AC (50HZ, 60HZ) 100V-240V; Output: DC12V/5A
Operating temperature range……………………… (-15 to +55℃)
Dimension(L x W x H)…………...............….167x103x25 (mm)
Weight…….…..……………………………………390g

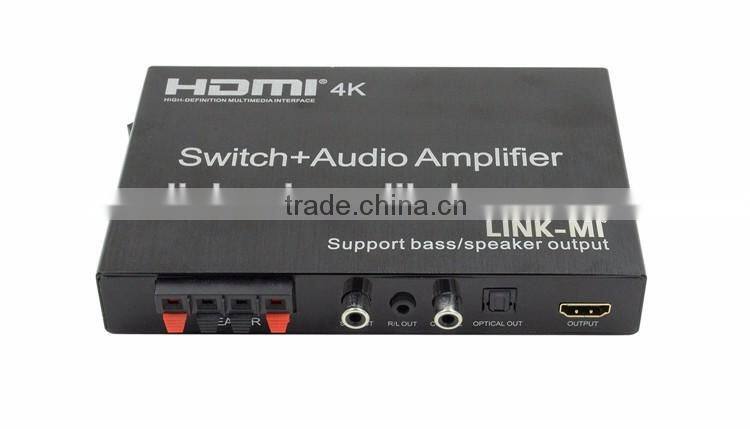

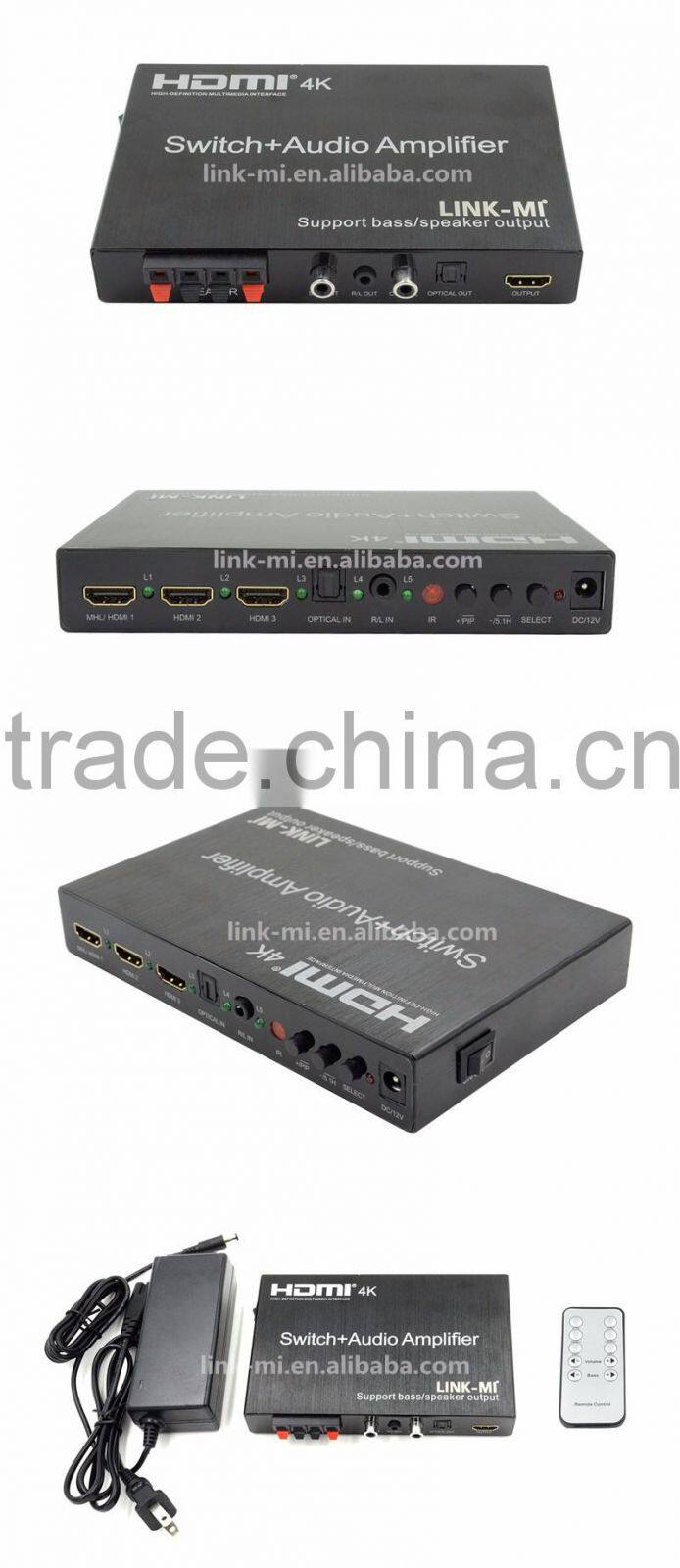

Product Picture
Physical interface diagram
The package include
1. HDMI switcher
2. Power adapter
3. User Manual
4. IR remote control
Introduction
Features
Specification
Panel Description
Product Overviews
Connection and Operating
Connection Diagram
Packing Contents
