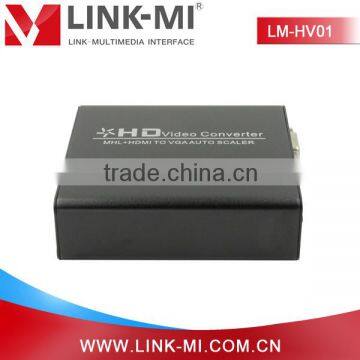

LM-HV01 Digital to Analog 1080p HDMI to VGA Converter supports MHL 2.0&DVI 1.0
Model:LM-HV01
Color:Black
Keyword:HDMI to VGA
LM-HV01 HDMI to VGA Converter
LM-HV01 HDMI to VGA Converter which can convert mobile MHL or HDMI digital video audio signal to analog VGA signal and the FL / FR stereo audio signal, while support DVI system sideline signals. Help users convert the high quality of digital signal to analog signal.So that can play on CRT/LCD/LED monitor,HDTV or projector.
Features:
1. No need to install drivers, portable, flexible, plug and play.
2. High quality scaling technology for input resolutions .
3. Multiple output resolution set in OSD menu.
4. Compliant with HDMI1.3,DVI1.0,MHL2.0 Standard.
5. Share your photos, music and movies with your family and friends on the TV.

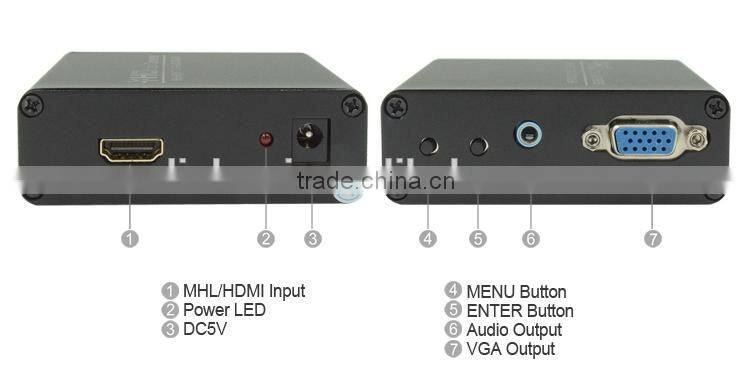

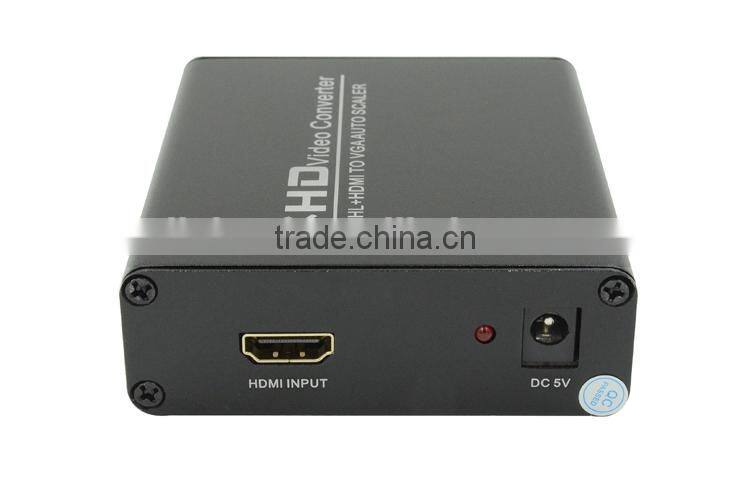

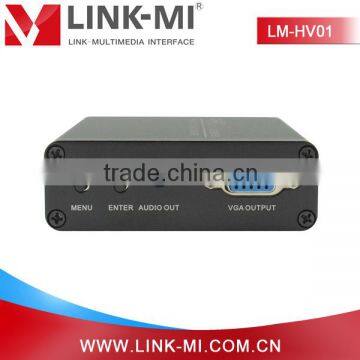

Panel Description:
[Specifications]
Model No. |
LM-HV01 |
Product Name |
MHL/HDMI to VGA Scaler Converter Box |
Input ports |
1xHDMI. |
Output ports |
1xVGA. 1xEarphone |
Dimensions(mm) |
100(D)x84(W)x28(H) |
Wight (g) |
300 |
MHL/HDMI input resolution |
480i/60Hz,480p/60Hz,576i/60Hz,576p/60Hz, 720p50/60Hz,1080i50/60Hz,1080p50/60Hz. |
VGA output resolution |
800x600@60Hz,1024x768@60Hz, 1360x768@60Hz,1440x900@60Hz, 1280x1024@60Hz,1680x1050@60Hz, 1600x1200@60Hz,1920x1080@60Hz, |
Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
Elative Humidity |
20 ~ 90% RH (Non-condensing) |
Power Consumption (Max) |
3W |
ESD Protection |
Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) |
[Installation]
Connection and Operating:
1) Connect a source such as a Blu-Ray Player, game console, Satellite Receiver, or smart mobile phone to the Converter MHL/HDMI input.
2) Connect a display such as an monitor or Projector to the VGA output on the Converter.
3) Connect the audio out to the audio amplifier or headphone by earphone cable.
4) Power on the device and display.
Connection Diagram:
[Product Demonstration]
[Packing Connents]
Basic Version
1. HDMI Quad Multi-Viewer 1pcs
2. 12V/2.5A DC power adaptor 1pcs
3. Remote Control 1pcs
4. Wide-band IR Receiver 1pcs
5. Wide-band IR Transmitter 4pcs
6. RS232 Cable 1pcs
7. Operation Manual 1pcs
Extender Version
1. HDMI Quad Multi-Viewer 1pcs
2. CAT5e/6 Receiver 1pcs
3. 12V/2.5A DC power adaptor 1pcs
4. 5V/1A DC power adaptor 1pcs
5. Remote Control 1pcs
6. Wide-band IR Receiver 2pcs
7. Wide-band IR Transmitter 5pcs
8. RS232 Cable 1pcs
9. Operation Manual 1pcs
