OEM LM-VH03 1080p With Audio Input,Mini VGA2HDMI Video Converter

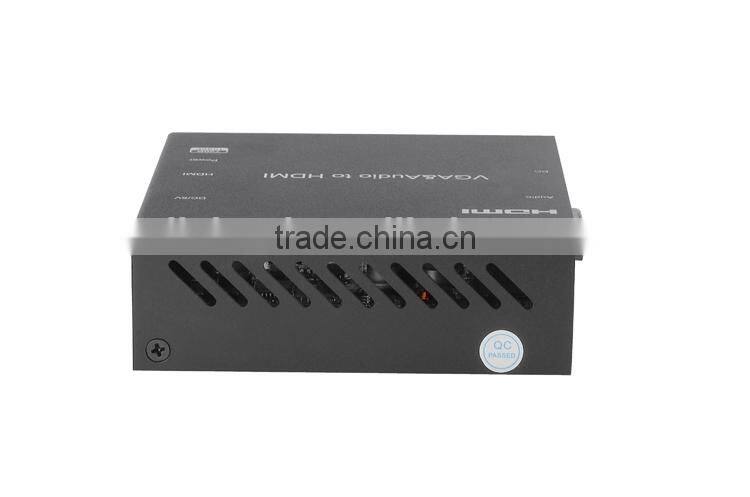

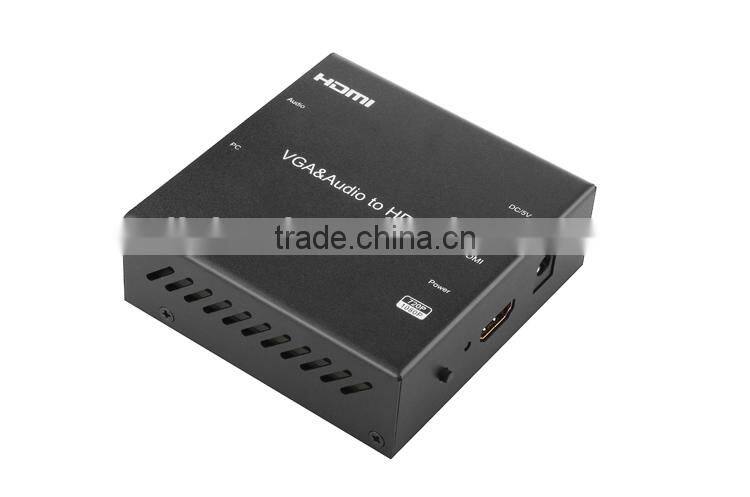

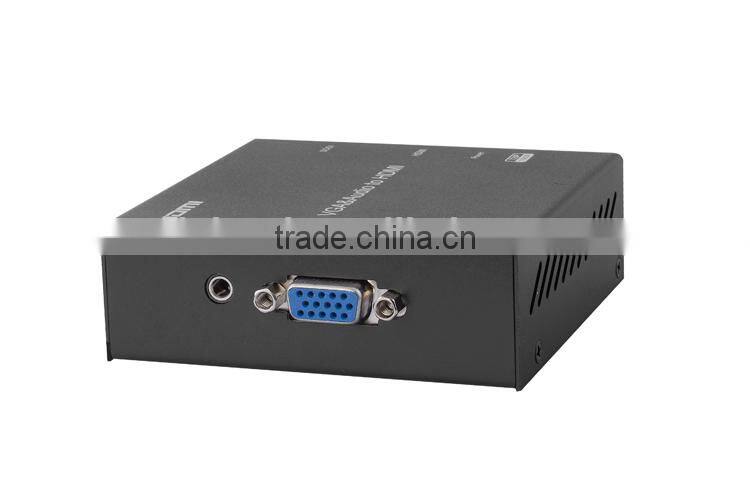

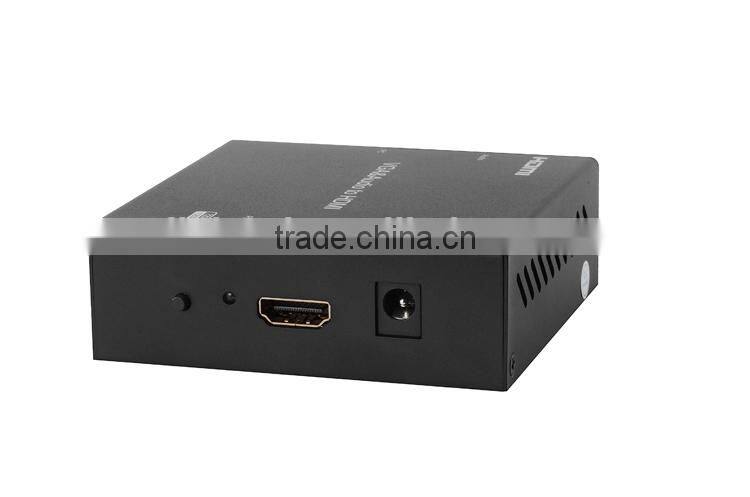

OEM LM-VH03 1080p With Audio Input,Mini VGA2HDMI Video Converter photo-1
OEM LM-VH03 1080p With Audio Input,Mini VGA2HDMI Video Converter photo-2
OEM LM-VH03 1080p With Audio Input,Mini VGA2HDMI Video Converter photo-3
OEM LM-VH03 1080p With Audio Input,Mini VGA2HDMI Video Converter photo-4
OEM LM-VH03 1080p With Audio Input,Mini VGA2HDMI Video Converter photo-5
OEM LM-VH03 1080p With Audio Input,Mini VGA2HDMI Video Converter photo-6
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LINK-MI/OEM
Model Number:
LM-VH03
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name LINK-MI/OEM
Model Number LM-VH03
Place of Origin Guangdong, China

          OEM LM-VH03 1080p with Audio Input,Mini VGA2HDMI Video Converter

Model Number:  LM-VH03

Keywords:    vga2hdmi converter

OEM LM-VH03 1080p with Audio Input,Mini VGA2HDMI Video Converter







Product Description

Introduction:  vga2hdmi converter

LM-VH03 vga-hdmi converter convert computer's VGA video signal and audio to HDMI output, upscale composite up to 1080p, supports full range of component video resoulutions: 480i, 480p, 576i, 720p, 1080i, supports PAL/NTSC standard TV, compliant HDCP.



Features

1)Converter computer's VGA video signal and audio to HDMI output
2)Hardware conversion, plug and play without any software drive
3)Upscale composite up to 1080p
4)Supports full range of Component Video Resolutions:480i, 480p, 576i, 576p, 720p, 1080i
5)HDMI output resolution:720p/60Hz ,1080P/ 60Hz.
6)Support PAL / NTSC standard
7)Compliant HDCP
8)Uses 5V power



SPECIFICATIONS

Operating Temperature Range

-5 to +35(+23 to +95 Degree Fahrenheit )

Operating Humidity Range

5 to 90%RH (No Condensation)

HDMI Output

HDMI 720p@50/60Hz or 1080P@50/60Hz

Audio Inputs

L/R channels

Video Input formats

PAL,NTSC

HDCP

Compliant HDCP

Power consumption

1watts(Maximum)

Dimension (L×W×H)

95*87*29mm

Net Weight

190g

  Product Description





OEM LM-VH03 1080p with Audio Input,Mini VGA2HDMI Video Converter

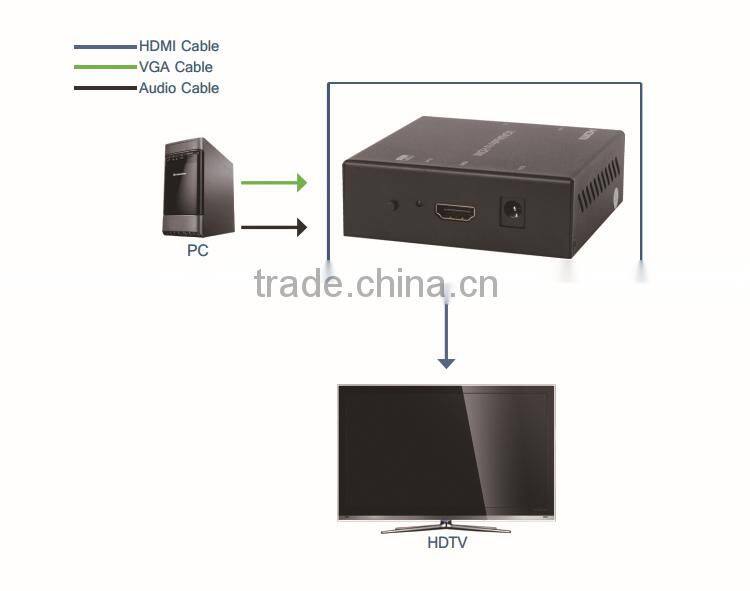

Connection DiagramOEM LM-VH03 1080p with Audio Input,Mini VGA2HDMI Video Converter

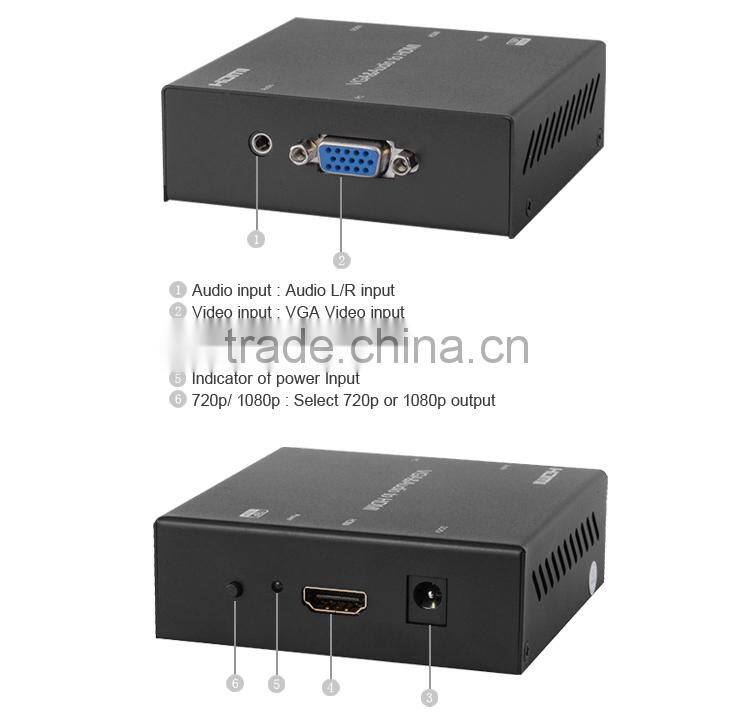

Connecting And Operating

1.Ensure the Converter is disconnected from power.
2.Connect source to the CVBS input and sink to HDMI output .
3.Connect 5VDC power to the converter.

Attention: Insert/Extract cables gently.

Product Display

OEM LM-VH03 1080p with Audio Input,Mini VGA2HDMI Video ConverterOEM LM-VH03 1080p with Audio Input,Mini VGA2HDMI Video ConverterOEM LM-VH03 1080p with Audio Input,Mini VGA2HDMI Video Converter



Packaging & Shipping

 PACKING CONTENTS:  OEM LM-VH03 1080p with Audio Input,Mini VGA2HDMI Video Converter

1)Main Unit. VGA-HDMI converter
2)DC5V 1A Power Supply.
3)Operating Instructions

OEM LM-VH03 1080p with Audio Input,Mini VGA2HDMI Video Converter
