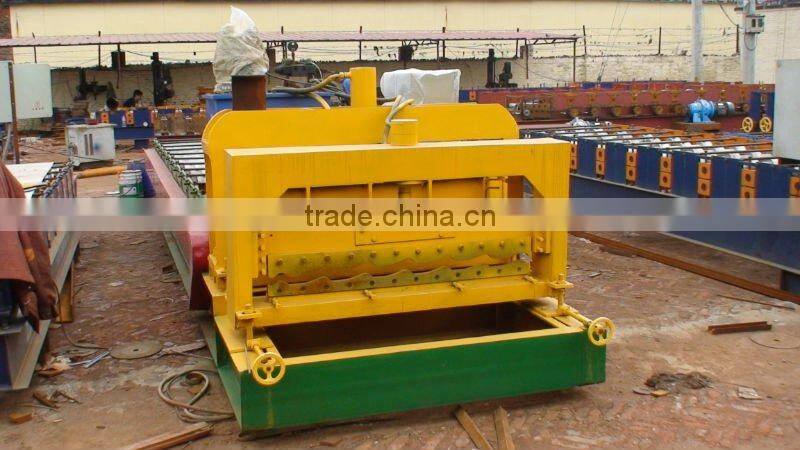

Corrugated Iron Sheet Roll Forming Machine
- tianjin
- T/T Money Gram
You May Like
-
Metal Panel Roll Forming Machine
-
China Roofing Corrugated Galvanized Sheet Making Machine With Best Price
-
China Corrugated Roll Forming Machine for Aluminium/steel/metal Roofing Sheets
-
Glazed Steel Tile Aluminium Corrugating Roll Forming Machine in China ,Corrugated Roll Forming Machine
-
Automatic Wafer Roll Machine Samll Production Line \galvalume Corrugated Sheet Rolling Machine
-
Corrugated Roof Sheet Making Machine/ Bellows Forming Machine /steel Roof Rolling ma \galvalume Corrugated Sheet Rolling Machine
Product Details
| Type | Tile Forming Machine | Tile Type | Colored Steel | |
| Use | Roof | Place of Origin | Hebei, China | |
| Brand Name | JCX |
Product Description
Specifications
corrugated iron sheet roll forming machineuperior quality
fluent operation
low noise
CE standard roll former
corrugated iron sheet roll forming machine
1.Leak frame load-bearing:4T
2. Rack: welding with 300H steel
3. The form of forming machine guiding filling: side skip
4.The form of forming machine: chain drive with wallboard type, the thickness of wallboard is 12mm.
5. Diameter of Shaft is: 72mm
6.Chain: 0.6 inch single row
7. Main motor power:3kw double pole reduction box
8. Forming Speed: 8m/min
9. Number of tracks: 11 tracks
10. Roller material: high grade 45#steel
11 Hydraulic station power: 3kw
12 Hydraulic station oil pump: gearpump
13 Cutting type: hydraulic cut
14 Forming Cutting blade: Cr12
15 Heat treatment on cutting blade: HRC58°-60°
16 Thickness of coil sheet: 0.3-0.8mm
17 Coil width of material: 1000mm
18 Index error of length: ±2mm
19 Controlling system: PLC
20 Voltage: 380V 3phase 60 HZ or at buyer’s requirement
