Specifications
Africa Roofing Corrugated galvanized Sheet making Machine 1:Fast2,Little error
3,Quality is stable
Africa Roofing Corrugated galvanized Sheet making Machine
A. Profile
| Wave height | 18mm |
| Wave length | 75mm |
| Cover width | 975mm |
| Coil width | 1200mm |
| Thickness of material plate | 0.3-0.8mm |
B. Roll Forming Machine parameter
No. |
main parameter of Roll Forming Machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
1200mm |
3 |
Rollers |
12rows |
4 |
Dimensions |
6.5*1.45*1.51m
|
5 |
Power |
5.5+4kw |
6 |
Thickness of the plate |
0.3-0.8mm |
7 |
Productivity |
20-30m/min |
8 |
Diameter of the roller |
Φ70mm |
9 |
Weight |
About 2.5T |
10 |
Voltage |
380V 50Hz 3phases |
11 |
Material of the cutting plate |
Cr12 |
12 |

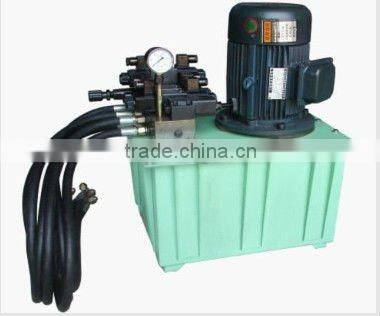

Hydraulic |
40# |
13 |
Processing precision |
Within 1.00mm |
14 |

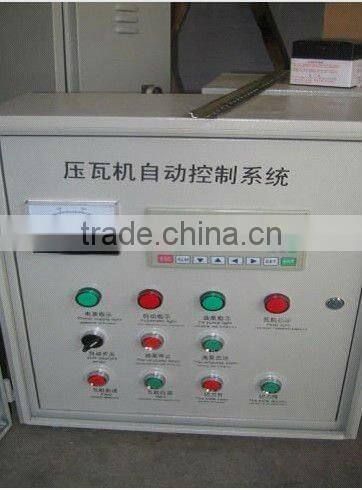

Control system |
Panasonnic PLC control |
C. Flow chart

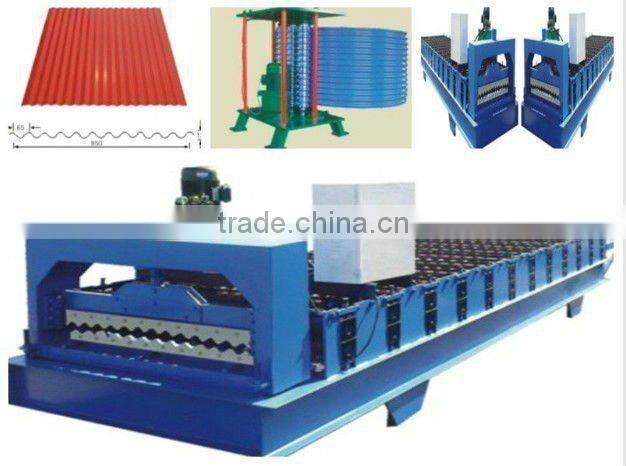

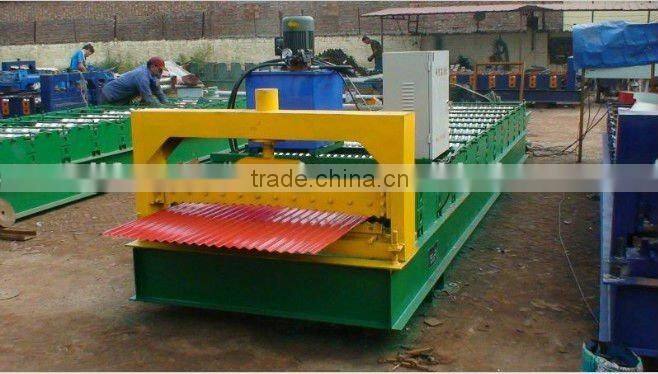

D.Photo
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
