Help CenterChina High Production Hot Seller Corrugated Cement Fiber Roofing Sheet Machine
Related Products
-
Aluminium Panel Roll Forming MachinesUS$ 1,000 - 20,000MOQ: 1 Set -
JCX--china Corrugated Profile Aluminium Composite Panel Roll Forming MachinesUS$ 9,000 - 60,000MOQ: 1 Set
-
Large-size Carpanel Roll Forming MachineNegotiableMOQ: 1 Set
-
Africa Roofing Corrugated Galvanized Sheet Making MachineUS$ 10,000 - 20,000MOQ: 1 Unit
-
Hot!!!Africa Roofing Corrugated Galvanized Sheet Making MachineUS$ 10,000 - 20,000MOQ: 1 Unit
Specifications

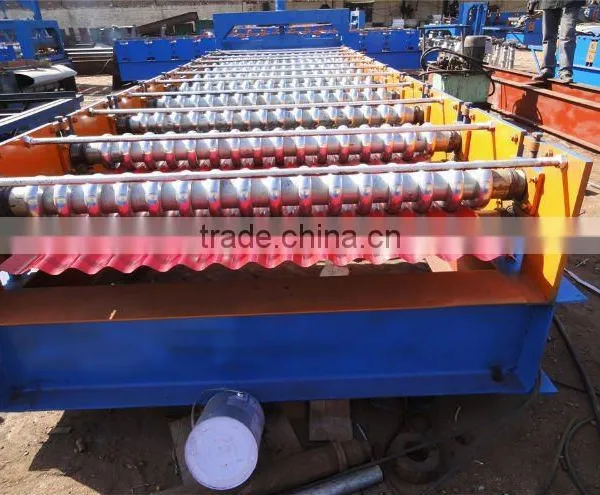

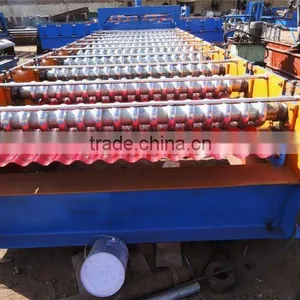

Corrugated Roll Forming Machinesuperior quality
fluent operation
low noise
CE standard roll former
Corrugated Roll Forming Machine1.Leak frame load-bearing:4T
2. Rack: welding with 300H steel
3. The form of forming machine guiding filling: side skip
4.The form of forming machine: chain drive with wallboard type, the thickness of wallboard is 12mm.
5. Diameter of Shaft is: 72mm
6.Chain: 0.6 inch single row
7. Main motor power:3kw double pole reduction box
8. Forming Speed: 8m/min
9. Number of tracks: 11 tracks
10. Roller material: high grade 45#steel
11 Hydraulic station power: 3kw
12 Hydraulic station oil pump: gearpump
13 Cutting type: hydraulic cut
14 Forming Cutting blade: Cr12
15 Heat treatment on cutting blade: HRC58°-60°
16 Thickness of coil sheet: 0.3-0.8mm
17 Coil width of material: 1000mm
18 Index error of length: ±2mm
19 Controlling system: PLC
20 Voltage: 380V 3phase 60 HZ or at buyer’s requirement
