Specifications
1)Filter press2)Intermittent solid-liquid separation
3)Filter plate and frame form filter room
4)Speical for Sticky material
filter press

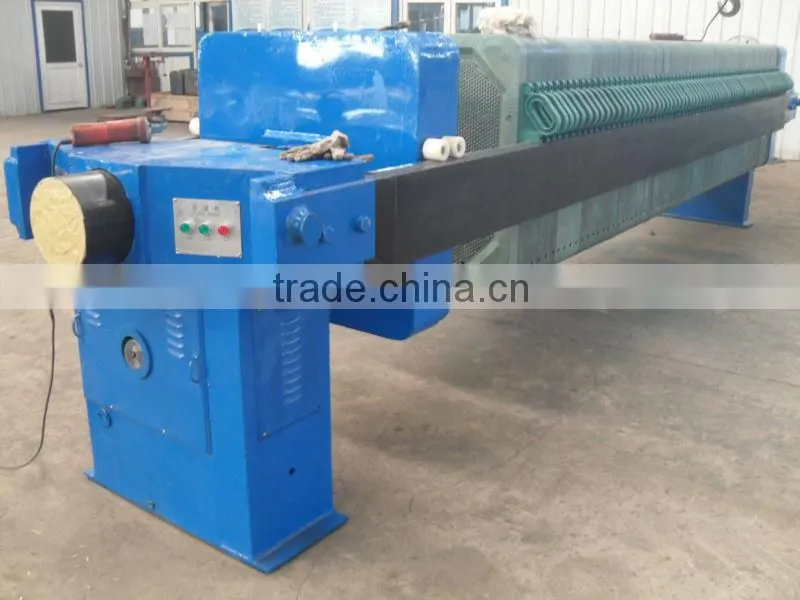

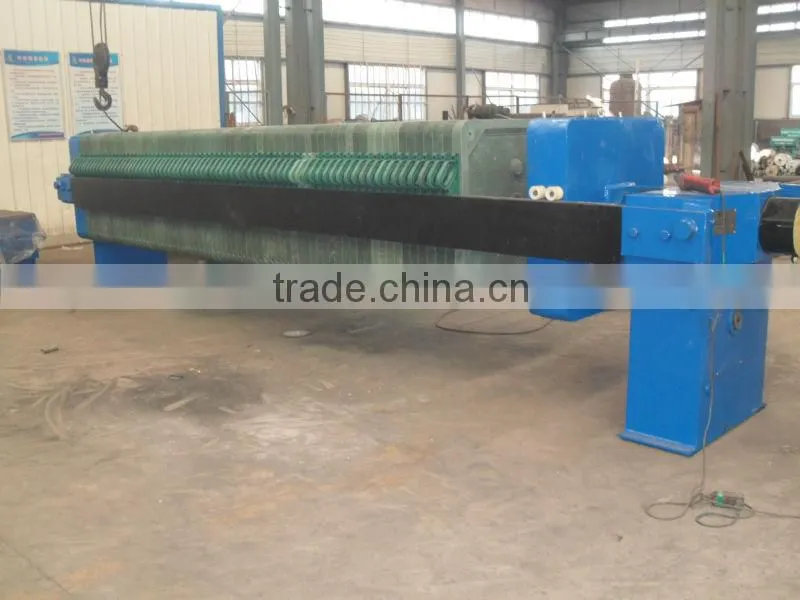

Plate and Frame Type Sludge Filter Press
Plate-and-frame (type) filter press is a device for spasmic solid-liquid separation with plate, frame as filter room where liquid was transferred into by conveying pump, solid-liquid separation will be achieved by filter media.
It is widely used in wastewater treatment for industries, such as chemical engineering, dyes, petroleum, pottery, pharmaceutical, sugar and food manufacturing, starch, syrup, painting, metallurgy and so on. It has a superiority in separation of adhesive material with advantages of good performance, wild application, easy operation, low cost etc.
Technical parameter
1. Manual operation
Spec. |
Filter area |
Material |
Form |
450 |
1²--30² |
PP, Steel compound rubber |
Box, plate-frame |
630 |
10²--40² |
PP, Steel compound rubber |
Box, plate-frame |
2. X AM J Mechanical Tighten Filter Press
Spec. |
Filter area |
Material |
Form |
630 |
15²--40² |
PP, Steel compound rubber |
Box, plate-frame |
870 |
40²--100² |
PP, Steel compound rubber |
Box, plate-frame |
3. X AM J Hydraulic Tighten, Mechanical Tighten Filter Press
Spec. |
Filter area |
Material |
Form |
930 |
40²--100² |
PP |
Box, one plate one frame |
1000 |
100²--180² |
PP, Steel compound rubber |
Box, one plate one frame |
1250 |
130²--300² |
PP, Steel compound rubber |
Box |
4. X AM J Automatic Filter Press
Spec. |
Filter area |
Material |
Form |
1000 |
100²--180² |
PP |
Box, one plate one frame |
1250 |
130²--300² |
PP, Steel compound rubber |
Box |
1500 |
160²--500² |
PP, Steel compound rubber |
Box |
