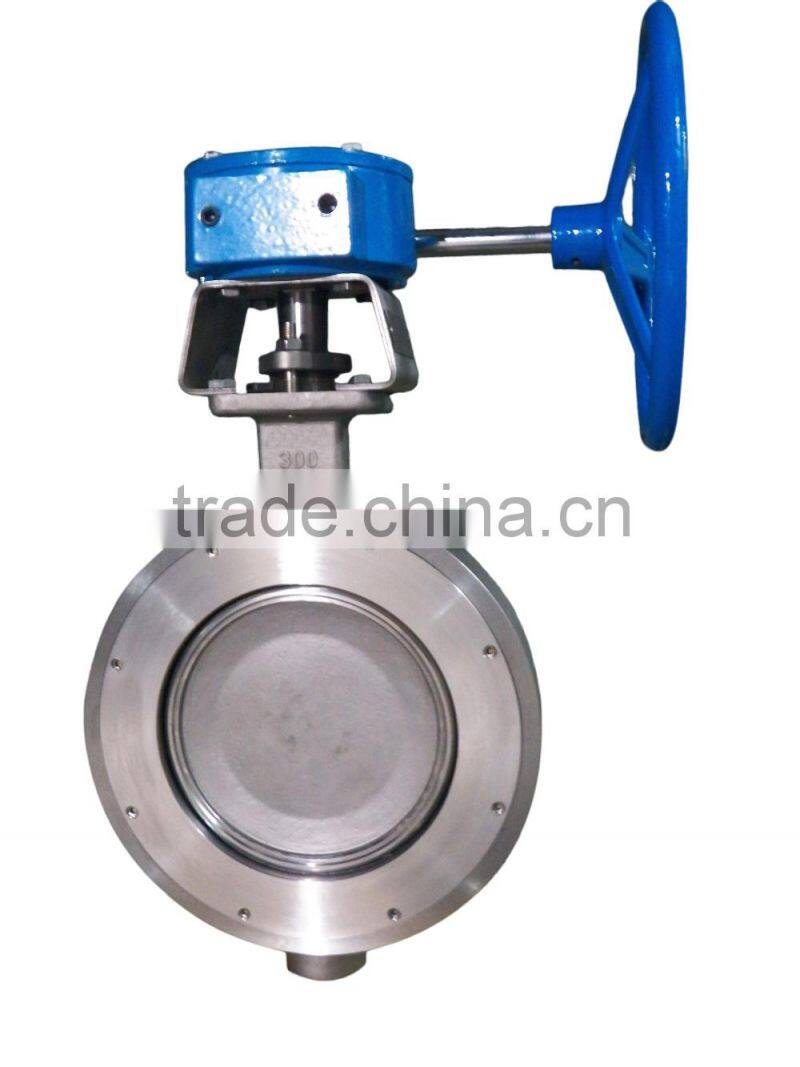

double offset handwheel manual acutated high performance butterfly valve

double offset handwheel manual acutated high performance butterfly valve

feature:

1. valves comply with EN593, BS5155,MSS SP-67;

2.replaceble rubber liner for size DN50 to DN300.

3. Double offset, high performance.

5.lever manual actuated.

6.Single  through stem, low torque.

Working pressure :

size50mm-600mm: 16 bar; size 50mm-300mm: 25 bar.

working temperature:

-10 ℃ to 120  ℃ for EPDM liner; -10 ℃ to 82  ℃ for NBR liner; -10  ℃ to 150 ℃ for viton liner.

Corrosion protection:

internally and externally liquid epoxy painted for fusion bonded epoxy powder coated(FBE).

material spec.:

body: stainless steel ;

shaft: stainless steel;

disc: stainless steel;

Seat: RPTFE;

Bushing: PTFE;

Actuator: cast iron handwheel

 (bubble) plastic bags in kraft carton,wooden cases or as clients'requirements.

Professional research team, high quality products, competitive price, sincere service.

Aimed at offering best quality and service for our customer, the company make production and management strictly in accordance with ISO9001: 2000 quality system. We have achieved already ISO9001 and CE certificate, and DNV certificate, will also achieve others soonest possible.
Nowaday our product has been exported to Spain, America, Italy, Germany and Norway etc. Under the market diversification demand situation, our company will, as always, provide our customer the first-class quality, competitive price and good delivery cycle and perfect service.
Mainly produces butterfly valve, check valve, ball valve, gate valve, globe valve, Y type filters, expansion joints, aluminum die casting and various pipe fittings and other products comply with international ANSI / API, JIS, DIN, BS, NF and GB standards requirements for customers with better and convenient services

Certificates: ISO9001,CE
