Wafer Butterfly Valve With Worm Gear Manufacturer

Product Description

Valves company with EN593,BS5155,MSS SP-67

Replaceable rubber liner for size DN50 to DN300

Vulcanized rubber liner for size DN350 to DN600

With 4 locating holes for easier installation and centering.

Actuator ready with top flange in accordance with ISO5211-1

Handle or gearbox operated

Flanges standard is EN1092-2 PN10/16 ,ANSI B16.1 Class 125

Mediums:Water,Sewage,Oil,Gas

Temperature:-10C~150C

1)Sizes: DN25-DN1400

2) Pressure: PN6/PN10/PN16/CLASS150

3)Temprature:

EPDM liner:-10C-120C

NBR liner:-10C-82C

Viton liner: -10C-150C

4)Material:

A. Body: Cast iron/Ductile iron/WCB/Stainless Steel

B. Disc: DI/CF8/CF8M/C95400

C.Seat: NBR/EPDM/PTFE

D.Shaft: SS420/SS316

E:Bushing: Glass backed PTFE /Lubricated bronze

F. Operation: Malleable iron lever/Aluminium Lever/Gear/Pneumatic/Electrical

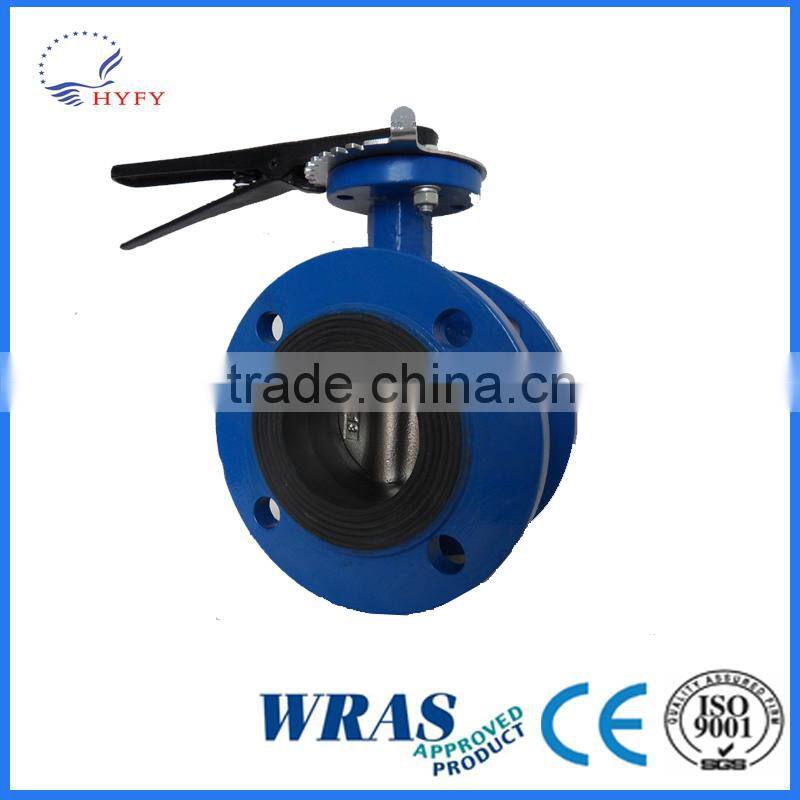

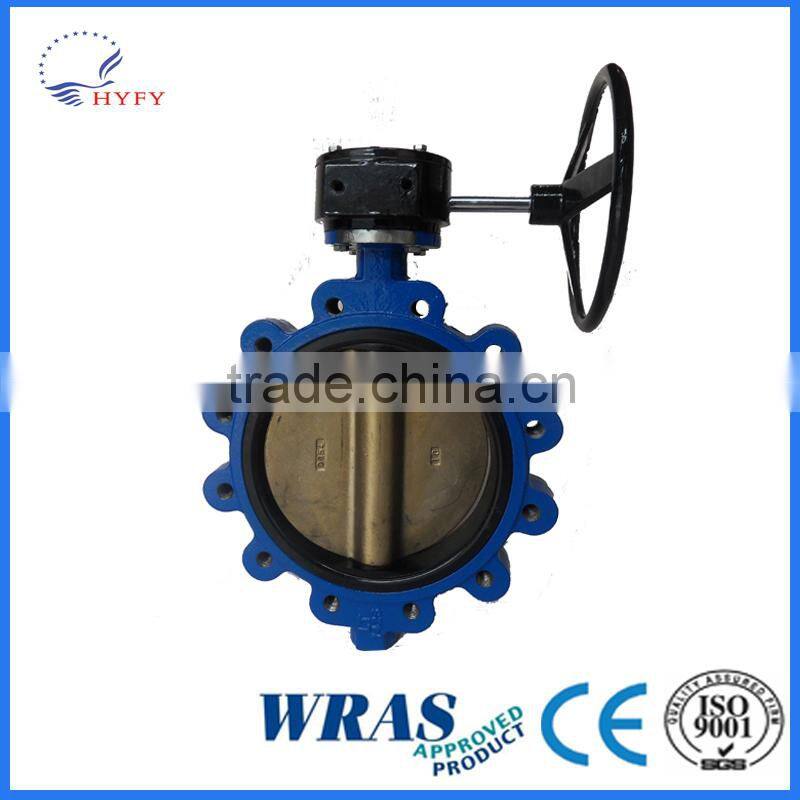

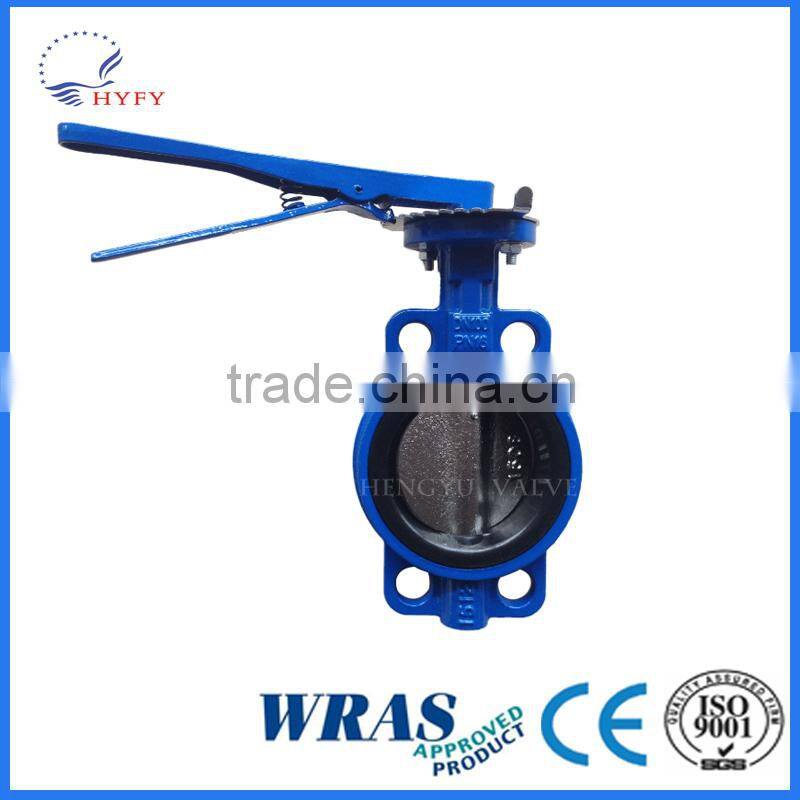

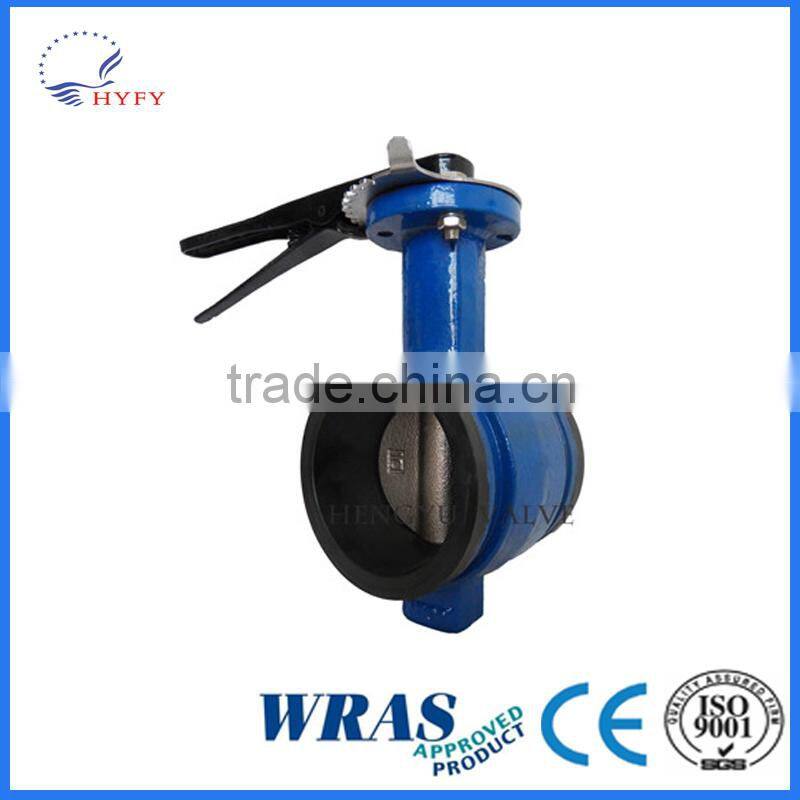

Product photos

Our Certificate

Packing and shipping

Our services

We are competitive valves manufacturer in shandong province,china.Our main products are butterfly valve(wafer type,lug type,flange type),check valve(dual plate check valve,single plate check valve,slient check valve,foot valve) and Y type strainer

We are factory and we export by ourselves ,so we have very competitive price ,quick response to your questions.We also have strict qualtiy control for each valves.

Company Information

Our company is a professional manufacturer of valve products.Annual production valve is one billion us dollars.Our compny covers 667020 aquare meters.Currently we have 150 emplyees,which include 10 engineers.Now we have one hundred set of advanced production and inspection facitlities ,like precision lathe,miller,drilling machine,pressure testiong machine,tensile machie,metallographic analysis,nondestructive detector etc.

FAQ

1,What is our advantage?

We are factory ,so we have very competitive price.And we can response to your for your questions very quick.We have professiona QC team,so we can offer your high quality products and our qualtiy level is very stable.

2,What is our MOQ?

10pc,and sample is free.

3,Delivery time

30 days for one 20FCL

4,Is the pressure test inspection 100%?

Yes,we test the valves one by one
