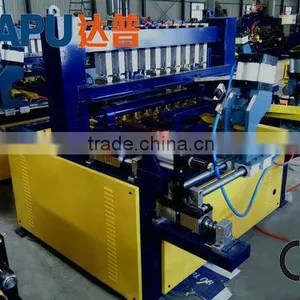

Chicken Cage Mesh Welding Machine
US$ 10,000 - 18,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
DAPU
Model Number:
DP-1200A
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bird Cages Mesh Welding MachineUS$ 5,000 - 15,000MOQ: 1 Set -
Chicken Cage Welding MachineUS$ 5,000 - 15,000MOQ: 1 Set
-
Dog Cages Mesh Welding Machine (ISO9001:2000;CE 12 Years Factory)US$ 5,000 - 15,000MOQ: 1 Set
-
Rabbit Cage Mesh Welding MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Poultry Farming Equipment Welding MachineUS$ 5,000 - 15,000MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
DAPU
Model Number
DP-1200A
Primary Voltage
3-phase,380V/220V/415V/440V 50Hz or 60Hz
Rated Duty Cycle
50%
Rated Capacity
60kva*2pcs
Dimensions
5.5*2.1*1.5m
Usage
Chicken cage mesh welding machine
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Chicken cage mesh welding machine1)For top cage mesh
2)Different length of wires in same sheet
3)Pneumatic device
Chicken cage mesh welding machine
The machine adopts air cylinder pulling mesh and the mesh aperture is accurate. Both sides air cylinder will cut both edges automatically.
The machine can produce top cage mesh like this:
The cross wires are feeding by servo motor automatically from coils. It can feed different length for cross wires in the same mesh sheet. It can be fed short cross wire to reserve the designed mesh hole.
The Main Parameters:
Wire Diameter |
2-3.5mm |
Width of Mesh |
1200mm |
Longitude Wire Space |
50-200mm |
Cross Wire Space |
25-200mm |
Welding Electrodes |
16 pcs |
Welding Speed |
45 times/min |
Longitude Wire Feeding |
From Wire Coils |
Cross Wire Feeding |
From Wire Coils |
Rated Electrical Power |
60kva*2 pcs |
Rated Voltage |
3-phase,380V/220V/415V/440V 50Hz or 60Hz |
