Specifications
Chicken cage welding machine1)For many kinds of cages
2)ISO9001:2000;CE
3)12 years factory experience
4)For chicken cage

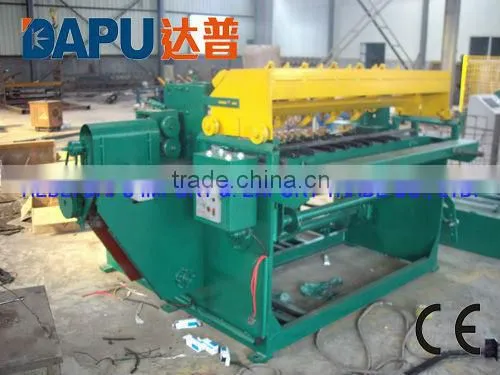

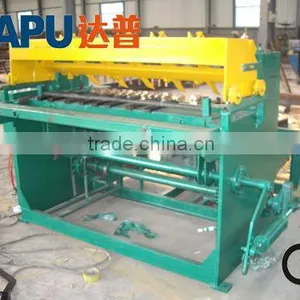

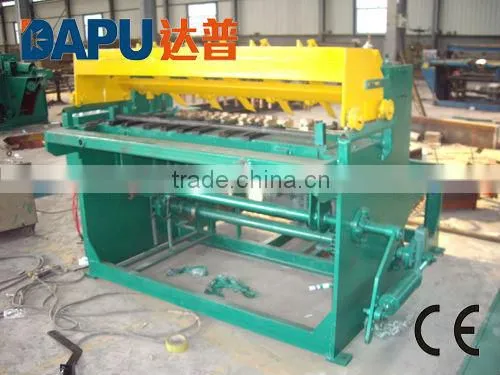

Chicken cage welding machine
This machine is for welding bottom cgae, Only need one worker to operate.
Wire Diameter |
1.8-3mm |
Width of Mesh |
1200mm |
Longitude Wire Space |
50-200mm |
Cross Wire Space |
25-200mm |
Welding Electrodes |
16 pcs |
Welding Speed |
60 times/min |
1. This machine adopts electrical & electronic synchronous control technique, both separate-phase welding and welding time is composed of digital and integrated electric circuit.
2. The operation is accurate, it has stable function, firm welded point, and without welded tracks.
3. The longitude wires are fed from coils. The cross wires are fed from coils while the diameter of cross wire is 1.8-2.5mm. Also the cross wires should be pre-straightened and pre-cut when the diameter of cross wire is 2.6-3.0mm.
4. The machine is equipped with precise equipment for weft cutting positioning, so the length of wefts is identical and regular, it is unnecessary to slice the side.
5. Mesh pulling system adopts elastic tension and opening positioning mesh, it is easy to regulate mesh hole, and mesh opening size is rather accurate, welding aperture could adjust randomly within range.
6. Not only welding speed is fast, it is easy to learn and operate. Only one worker can finish the operation.
