2.5-5.0mm CNC Welding Fence Mesh Machine
- 1 Set / Sets per Month
- XINGANG
- T/T PayPal
- AC spot welding machine 25KVA Iron sheet spot welding machine
- AC spot welding machine 35KW Iron sheet spot welding machine
- AC spot welding machine Resistance spot welding machine Iron sheet spot welding machine
- Heavy Duty Gantry Resistance Welding System Integration for Steel Bars Mesh
- Wire heating mesh resistance welding machine pneumatic pressurized spot welding machine
- Large-scale welding machine Chicken wire automatic welding spot welder Resistance welding equipment
Product Details
Place of Origin: | Hebei, China | Brand Name: | SECURE-NET | Model Number: | SK |
Primary Voltage: | Customized | Rated Duty Cycle: | 60% | Rated Capacity: | 800KVA |
Dimensions: | Customized | Usage: | Welded Wire Mesh | After-sales Service Provided: | Overseas service center available |
Product Description

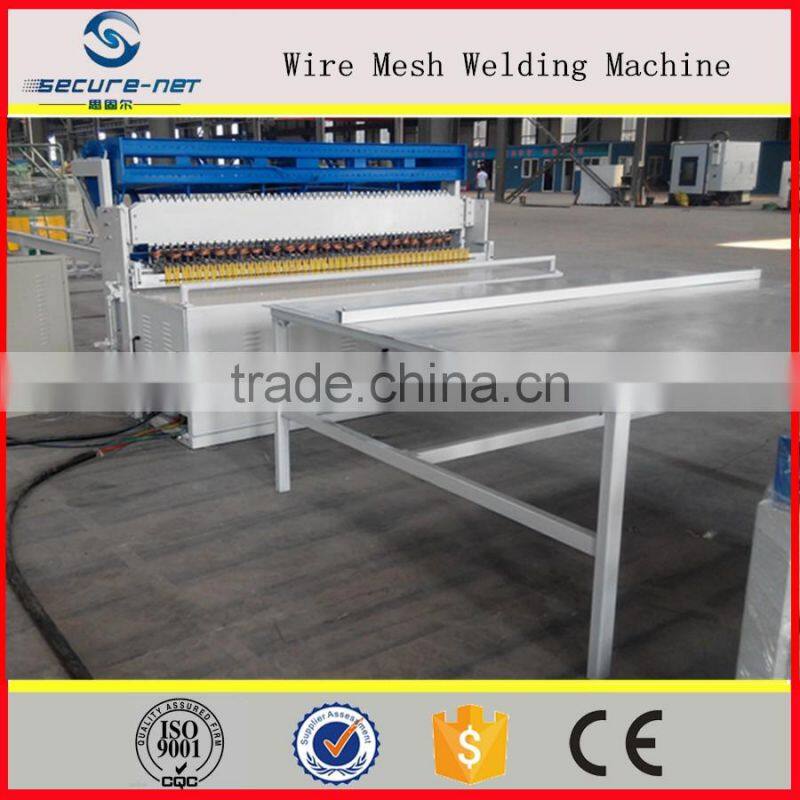

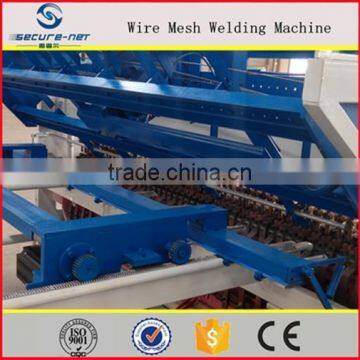

2.5-5.0mm CNC Welding Fence Mesh Machine
welding wire mesh machine for fence
Wire diameter | 2.5-5mm |
Welding aperture | 50*50-300*300mm |
Welding width | 2500mm |
Number of electrodes | 48 |
Rated voltage | AC380V 50HZ |
Rated power | 800KVA |
Welding speed | 0-60times/min |
Machine weight | 4.5T |
Overall dimension | 12*3.3*1.9m |
independent research and development design of the machine
Product description
1.This equipment adopts synchronous control technology,separate-phase welding and welding time is composed of digital programming of PLC system .There are two kinds of tablet PC input panel,One kind is touch panel ,another is Keyboard .The operation is more intelligent and rationalization.
2.The machine can press the panel tightly once , and weld by several times .On the same panel,this machine can weld 30 kinds of different size of meshs between weft and weft.That is the biggest advantages of this machine.
3.The machine adopts new type of high efficient welding transformer ,greatly expand the scope of welding diameters.(This wire mesh welding machine has high degree of automation, the same time reduce a lot of manual operation).
4.The mesh panel pulling part and the hopper is controled by the 16N stepper motor,and the steeper is working through the stepper motor drives.

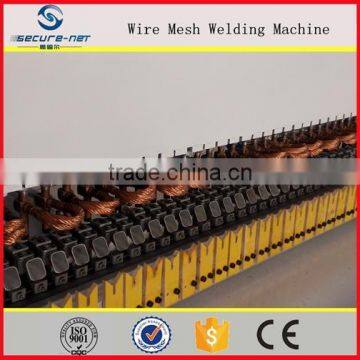

5.Electrodes, the lower seat and copper platoon is copper material,and the electrode block is chromium zirconium copper material.
6.Wear silk part wear silk by bell mouth, make artificial device more simple, convenient, equipped with dovetail positioning device, effectively reduces the error of the diagonal mesh.

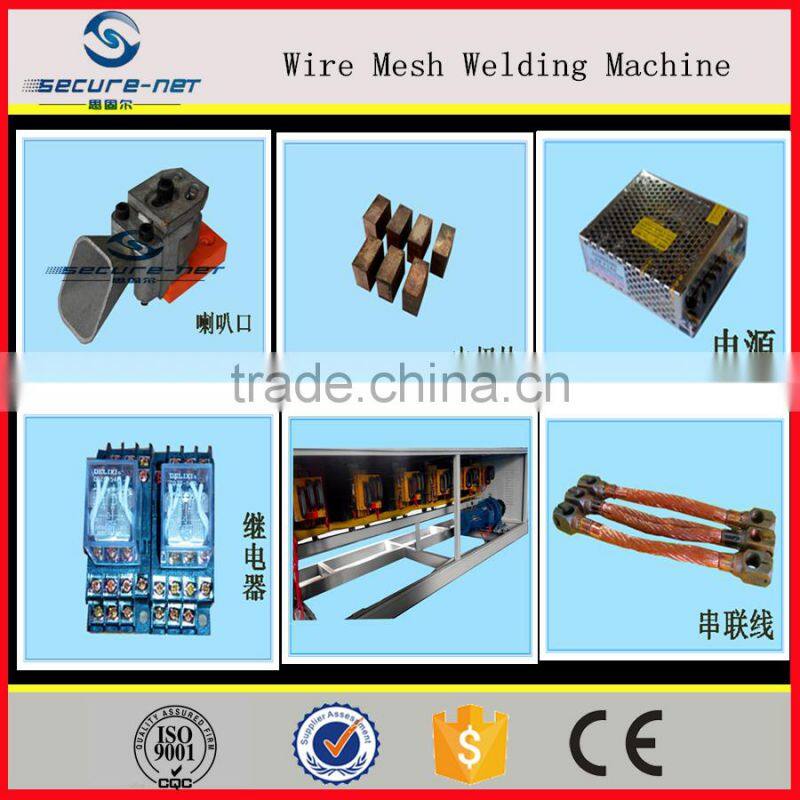

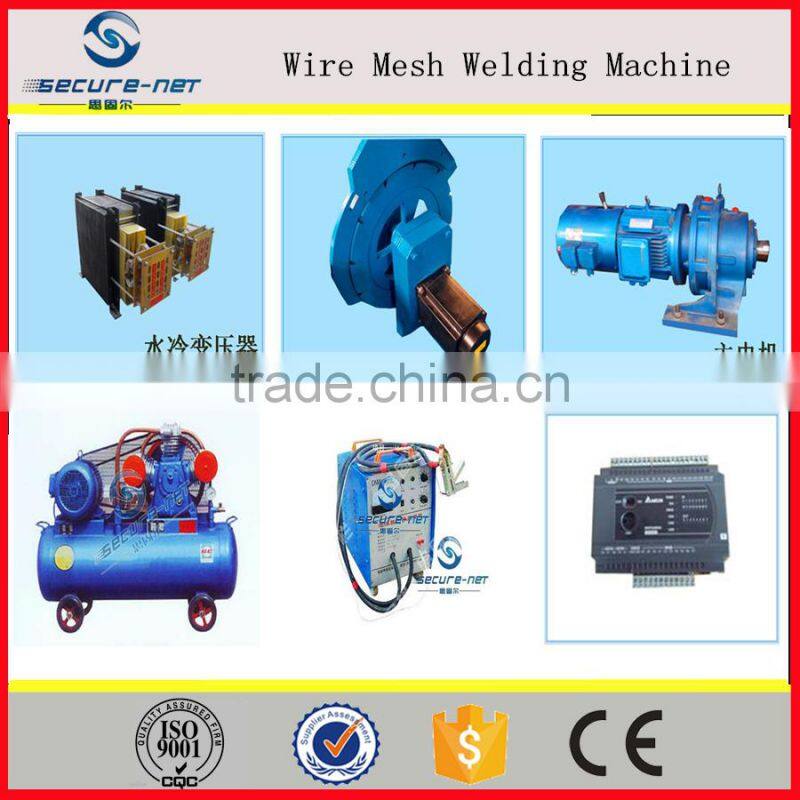

The main components of the machine
Auxiliary equipment
Straightening cutting machine
Wire feeding plate

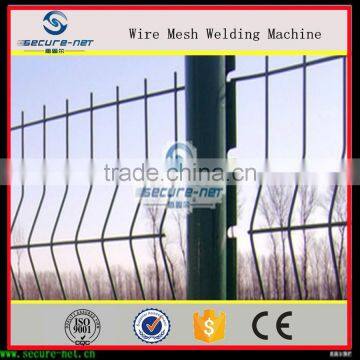

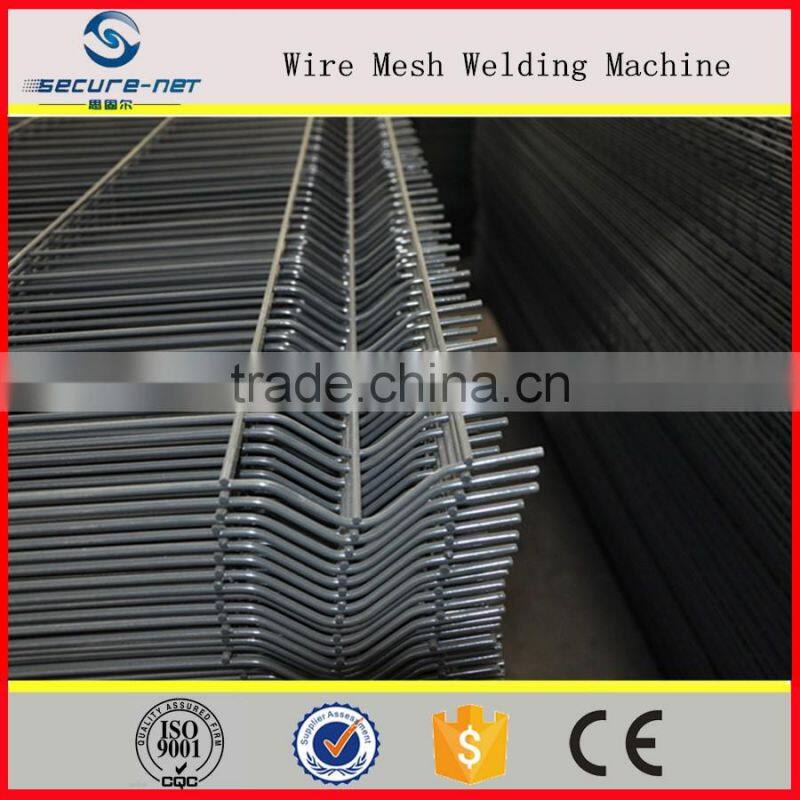

Production of the mesh
Our Services
1 .Maintenance period:one year
2.If the buyers need, we can send our technical staff to the buyers’ place to
debug the machine and providing the training in 30 days after the machines
arrive at the destination port.
3.The commissioning fees: free
4.The training fees: USD100/day for each technical
5.The numbers of technical persons: one technical person per machines at most
6.The fees ,such as round-trip tickets, accomodation etc, are all in buyers’
account. During the maintenance period: the parts damaged non-artificially
will be provided free of charge. If you need the technicians, we will
assign the expertised staff to your company. And the fees,such as round-trip
tickets, accomodation etc, are all in your account.
Host with plastic film packaging, numerical control cabinet packed in wooden cases.
Hebei Secure-Nett Fence Facility Co.,Ltd.
§ Hebei Secure-Nett Fence Facility Co.,Ltd.founded in 2000,is located in Anping,famous as production base of wire mesh in China.
§ Now Secure-net has developed into an integrated entity with R&D, manufacturing and trading.
§ Main products of Secure-net are welding wire mesh machine,welded wire mesh machine,chain link fence machine,barbed wire machine,gabion mesh machine.
Saleman:Gail Shi
Tel:86-18031855078
Fax:86-031185245076
Wechat:18832128285
Whatsapp:+18832128285
