Specifications

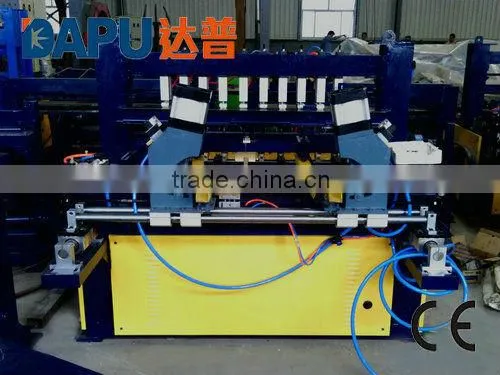

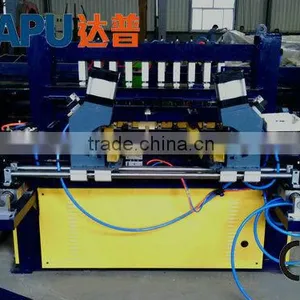

Poultry farming equipment welding machine1)Pneumatic device for top cage machine
2)Mechanical device for bottom cage machine
Poultry farming equipment welding machine
Poultry farming equipment welding machine
1.This machine adopts electrical & electronic control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit.
2.The machine is equipped with precise equipment for weft cutting positioning, so the length of wefts is identical and regular, it is unnecessary to slice the side.
3.Drawing mesh system adopts elastic tension and opening positioning mesh, it is easy to regulate mesh hole, and mesh opening size is rather accurate, welding aperture could adjust randomly within range.
Wire Diameter |
1.8-3mm |
Width of Mesh |
1200mm |
Longitude Wire Space |
50-200mm |
Cross Wire Space |
25-200mm |
Welding Electrodes |
16 pcs |
Welding Speed |
60 times/min |
Poultry farming equipment welding machine
Poultry farming equipment welding machine
1. The machine adopts air cylinder pulling mesh and the mesh aperture is accurate. Both sides air cylinder will cut both edges automatically.
2. The longitude wires are feeding from coils. The cross wires are feeding from coils.
3. The cross wires are feeding by servo motor automatically from coils. It can feed different length for cross wires in the same mesh sheet. It can be fed short cross wire to reserve the designed mesh hole.
Wire Diameter |
2-3.5mm |
Width of Mesh |
1200mm |
Longitude Wire Space |
50-200mm |
Cross Wire Space |
25-200mm |
Welding Electrodes |
16 pcs |
Welding Speed |
45 times/min |
