Specifications
Electro forge welded steel grating machine1)Bearing bar:2.5*25-5*65mm
2)Twisted bar:5-8mm
3)Size:1m*6m
4)Two types
Electro forge welded steel grating machine factory
|
Factory: Hebei Jiake Welding Equipment Co.,Ltd. Location: Industrial Zone, Anping County, Hebei Province, China. Main Products: steel grating machine, wire mesh machine and metal&wire processing machinery. Note: we can supply two kinds of steel grating machine-small type and large type. The small type can weld 2 spots one time, the large type can weld 2 cross bars one time. |
Contact Person: Bruce Ma
Skype: dapumachine
QQ: 1228185359
Mobile: 0086-15930181601 (whatsapp)

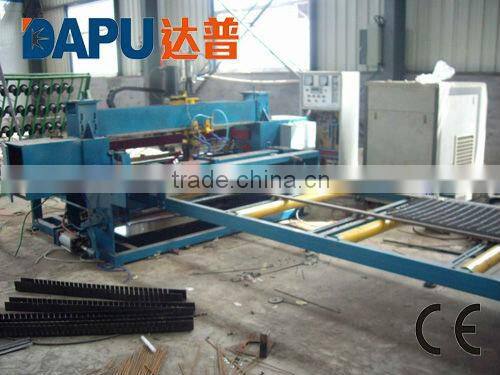

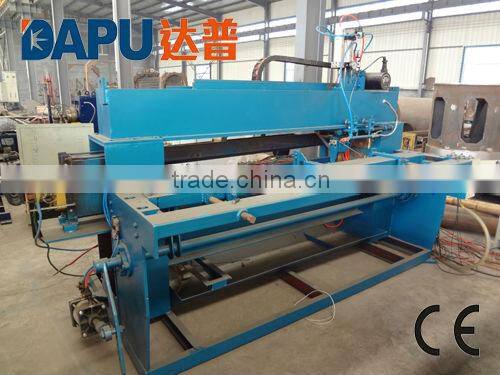

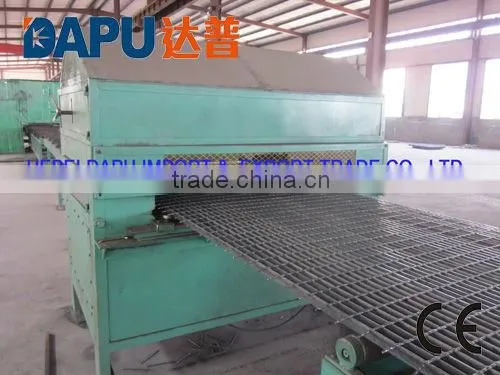

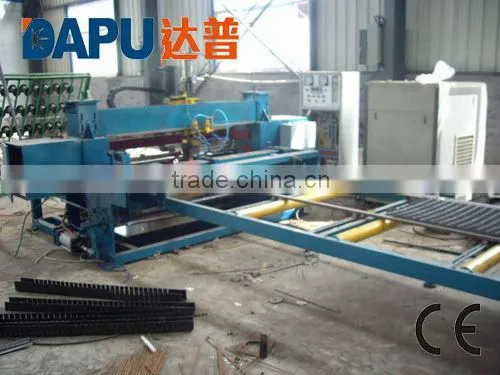

Electro forge steel grating welding machine (small type)
Machine Characteristics:
1. The machine adopts technology of power electronic synchronous control; the welding time and separate-welding are combined by digital integrated circuits.
2. The control precision are very accurate, operate smoothly; the welding spots are very firm.
3. The mesh pulling parts adopts imported pneumatic elements, it has characteristic of pressure uniformity, few malfunction and long service life.
4. Weld 2 spots one time.
5. Two air-cylinders support energy for drawing mesh; Hydraulic device controls two welding electrodes.
Technical Parameters:
Bearing bar range:2.5*25-5*65mm |
Cross bar range:5-8mm (twisted square steel) |
Welding panel width: max 1m; length: max 6m |
Production Capacity:70-100m^2/shift (8hours) |
Pitch of flat bar:25,30,40,50,60mm |
Pitch of cross bar:50,100mm |
Input the power: 3-phase,380V/220V/415V/440V 50Hz or 60Hz(according to customers’ needs) |
Welding transformer: 200kva |
Overrall size: 16*2.5*1.5m |
Weight:4000kg |
----------------------------------------------------------------------------------------------------

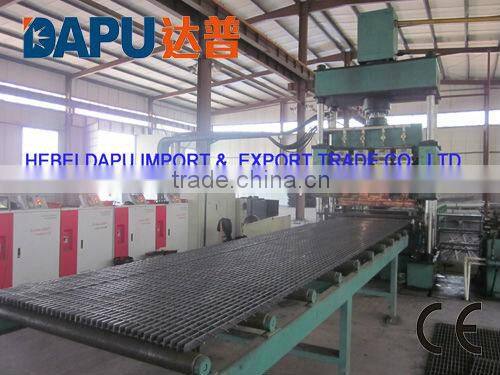

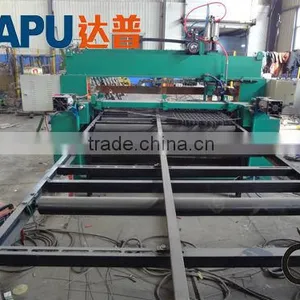

Pressure welded steel grating machine (large type)
Machine Characteristics:
1. Our grating machine adopts advanced medium frequency (1000Hz) technology.
2. Its instantaneous electric current is very strong and welding time is short, so it can save approximately 30%-50% power energy than low frequency (50Hz) grating machine.
3. Moreover in contrast to low frequency (50Hz) grating machine, its matched transformer can even save 40%-50%KVA.
4. The machine can weld two rows per time.
5. The twisted bars are fed automatically instead of fed by manual work.
Technical Parameters:
1. Input the power: 3 phase 380V 50 Hz 0r according to customers’ requirements |
2. Welding transformer: 250kva*8 |
3. Max pressure: 160Ton |
4. Welding frequency: 1000Hz |
5. Welding panel width: max 1.2m; length: max 7.5m |
6. Bearing bar range: FB20*2mm-Fb100mm*10mm |
7. Cross bar range: 5*5-10*10mm (twisted square steel) |
8. Cross bar feed way: automatic |
9. Welding times: 8-9s/times |
10. Auxiliary equipments like front roller, rear roller and cutting machines are included |
11. Weld Material: carbon steel or stainless steel |
12. Rated welding for the electric current: 200KA |
13. Weld the electric current the most largely:350KA |
-----------------------------------------------------------------------------------------------------

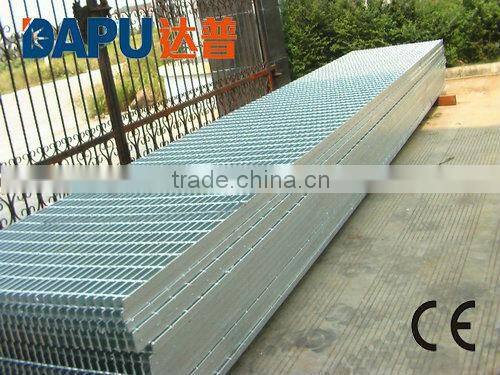

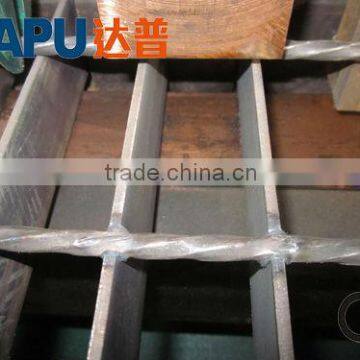

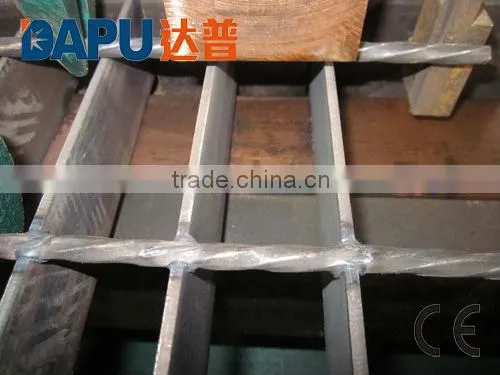

Finished steel gratings

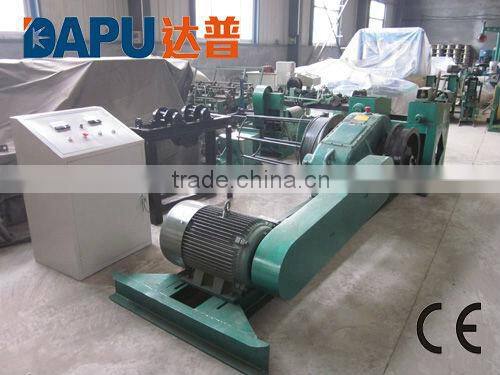

Twisted bar drawing machine
