Specifications
Dog cages mesh welding machine (ISO9001:2000;CE 12 years factory)1)For many kinds of cages
2)Two machines for the cage making

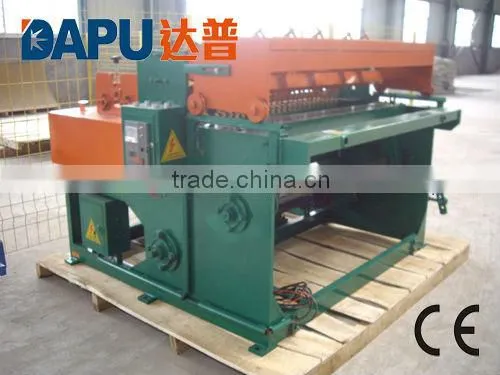

Dog cages mesh welding machine (ISO9001:2000;CE 12 years factory)
This machine is used for welding the bottom mesh of the cage. It is mechanical type.
The main parameters are as follows:
Wire Diameter |
1.8-3mm |
Width of Mesh |
1200mm |
Longitude Wire Space |
50-200mm |
Cross Wire Space |
25-200mm |
Welding Electrodes |
16 pcs |
Welding Speed |
60 times/min |
Longitude Wire Feeding |
From Wire Coils |
Cross Wire Feeding |
Dia.1.8-2.5mm From wire Coils Dia.2.6-3.0mm Should be Pre-Cut |
Dog cages mesh welding machine (ISO9001:2000;CE 12 years factory)
This machine is used for welding the top mesh of the cage. It is pneumatic type.
The main parameters are as follows:
Wire Diameter |
2-3.5mm |
Width of Mesh |
1200mm |
Longitude Wire Space |
50-200mm |
Cross Wire Space |
25-200mm |
Welding Electrodes |
16 pcs |
Welding Speed |
45 times/min |
Longitude Wire Feeding |
From Wire Coils |
Cross Wire Feeding |
From Wire Coils |
