RION-BD982 High Positioning Accuracy GPS Navigation,Can provide position information of carrier (longitude, latitude, height)...

Safe carton with sponge inside

Specifications

1. High positioning accuracy, low noise;
2. With stability and high robustness;
3. High real-time, stable and reliable.

RION-BD982 High Positioning Accuracy GPS Navigation,Can provide position information of carrier (longitude, latitude, height)...







I: Introduction
GPS system is a double GPS system orienting and positioning products. Can provide position information of carrier (longitude, latitude, height), speed information,direction information, GPS time and UTC time.
System Features
High positioning accuracy, low noise; directional accuracy is not limited by the SA, and interference in satellite raw data still can accurately orientation;
With stability and high robustness;
Output for each data set are independent calculation, no accumulated error;
system response time is short, strong interference resistance;
High real-time, stable and reliable;
Will not be influenced by magnetic field environment, non inertial drift



II Standard Configure :
1. GPS system RION-BD982    1set
2. GPS antenna               2 sets

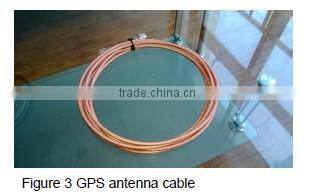

3. GPS cable                2pcs(2 meters)



4. vehicle suction cup base   2sets



III



Initial aim
vehicle navigation
satellite antenna
ship
flight control



IVHardware

1.The output interface of Dual GPS system is the 7pin connector, used for power and signal communication. The pins are defined in table 1.

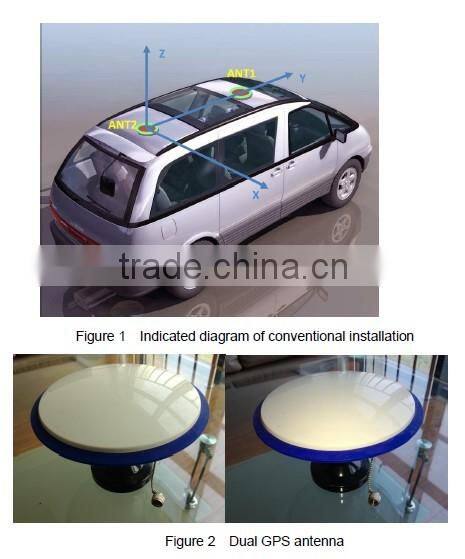

Front Antenna: Standard MCX bending seat. Using Antenna feeder to connect the antenna seat with GPS front antenna ( forward direction).

Back antenna: Standard MCX bending seat. Using Antenna feeder to connect the antenna seat with GPS back antenna ( backward direction).





2. The output interface of BD982 system is the 7pin connector, used for power and signal communication. The pins are defined in table 2.





Table 1 7pin connector of BD982 system definition







VI,Technical Index



(1)Physical index



Items	Index
Size (Length, Width, Height)
Temperature	Working:-40°C—+70°C; Storage:-55°C—+85°C
Vibration	Normal 6.2gRMS
Mechanical Vibration	Normal ±40gRMS



(2)Performance Features



Item	Specification
Measurement	Position antenna adopted 220C Maxwell 6 chip ; —       GPS: Synchronization L1 C/A,L2E,L2C,L5 —       GLONASS:Synchronization L1C/A,L1P,L2C/A,L2P —       SBAS:Synchronization L1C/A,L5 —       GIOVE-A:Synchronization L1 BOC,E5A,E5B,E5AltBOC —       GIOVE-B:Synchronization L1 BOC,E5A,E5B,E5AltBOC Vector antenna also adopted220 channel Maxwell 6 chip:   —GPS: Synchronization L1C/A,L2E,L2C —       —GLONASS :Synchronization L1C/A,L1P,L2C/A,L2P
D GPS Position precision	0.25m+1ppm   Horizontal direction 0.50m+1ppm   Ver
SBAS(WAAS/EGNOS/MSAS Precision (wide-area difference)	<5m 3DRMS
RTK Position accuracy	Horizontal accuracy: ±(8mm+1ppm)RMS Vertical accuracy ±(15mm+1ppm)RMS Heading accuracy 2m baseline<0.09°          10m baseline<0.05°
Initialization time	Normal less than10s
Initialization reliability	Normal >99%
Location update rate	1hz,2hz,5hz,10hz,20hz,50hz
The differential information input	Cmr,cmr+,rtcm 2.0,rtcm2.1-2.3,rtcm3.0,3.1
The differential information output	Cmr,cmr+,rtcm2.0 DGPS,rtcm2.1-2.3,rtcm3.0,3.1
Data output	1pps,NMEA,Binary GSOF,ascⅡ time Tags







Our Company & Workshop View :



Certificates & Test Reports :







We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests

 Order Process :

Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .



Payment ways :

T/T, WU or Paypal;



Delivery methods & Time :

DHL takes 3-5days ,  Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;



Quality Policy :

We gurantee 1 year in free charge .



Storage :

Note usually we don't make any items in stock , samples customize time need around 3-7days .
