Three Axis Multi-function Turntable, High Precision Rate Table, Three Axis Motion Simulator
General Description

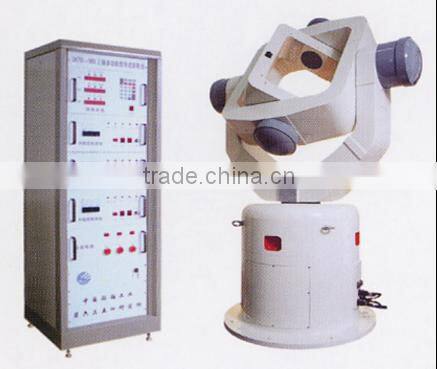

3KTD-565 type three axis multi-function turntable
3KTD-565 is three axis automatic frame type multi-functional inertial navigation test equipment. It has position, rate, swing and serve function and so on. It proceeds all function test and experience of inertial system and inertial parts. The turntable is controlled by computer and it has high precision positioning capability, rate stability, operation distortion and good dynamic features.
General features
Load capacity |
40kg |
Max measured object size |
420mm x 400mm x 480mm |
Wobble error |
Inner/outer frame: ±5’’ Mid frame: ±5’’ |
Rotary angle range |
Three axis Continuous infinite |
Axis perpendicularity |
Mid-inner frame ±5’’ Mid-outer ring ±3’’ |
Working mode |
Position, rate, swing, simulation and serve |
Table body weight |
About 1500kg |
Table body outline |
About 1600mm x 1100mm x 2200mm |
Electric control cabinet |
19’’ standard cabinet, height: 1800mm |
Computer interface |
RS-232 |
Conductive slip rings |
100 rings for user |
Performance index
Angular position measure accuracy |
±3’’ |
Angular position measure resolution |
0.36’’ |
Angular position measure repeatability |
±2’’ |
Angular position control accuracy |
±5’’ |
rate range |
0.001°/s~200°/s |
rate accuracy and stability |
5x10-4(360° average) |
Max angle acceleration |
inner frame 220°/s2, Mid-frame 130°/s2, outer frame 50°/s2, |
Sway amplitude |
Inner frame: ±50° Mid-frame: ±30° Outer frame: ±10° |
Sway period |
5sec~50sec |
Simulation function |
available |
Serve function |
Inner frame: yes Mid frame: no Outer frame: yes |
Serve accuracy |
Inner frame 3’’~5’’ Outer frame 6Hz |
Control system bandwidth |
Inner frame: 8Hz Mid frame: 8Hz Outer frame: 3’’~5’’ |
Shenzhen RION, as a positon sensor manufacturer and solution expert, attaches much importance to products reseach and develop which spend over 20% of annual profit. We have the most R&D personnel and best technology comparing with our peer to raise our up on the high level of sensor field. And we orientate ourself to market tightly and engage ourself into providing the most considerate and professional solution and service to customers. RION introduce advanced equipment, such as TEMP&HUMI chamber, salt spray corrosion test chamber, high precision automatic turntable, high precision marble checking platform, digital thermostat drying oven, electrostatic discharge tester and 360 degree mechanical turntable etc, and set up Environmental Testing Laboratory, Product Aging Chamber, 2D&3D Posture Calibration Room and Shake&Impact Test Room for R&D and factory test.
Beside owning excellent hardware, RION also developed 15 sets of software independently and keep developing, including multi-sensor monitor software, remote sensor monitor software, synchronous dynamic l tracking 3D presentation software, tilt switch early warning and debugging software and sensor serial port setting presentation software etc which could apply to XP, Win7, Win8, WinCE and Android system. RION, owning talent and diligent personnel, advanced technology and market-orientated strategy, engages itself in offerring you the most considerate and professional solution and service of position sensor.
You satisfaction is our mission.
