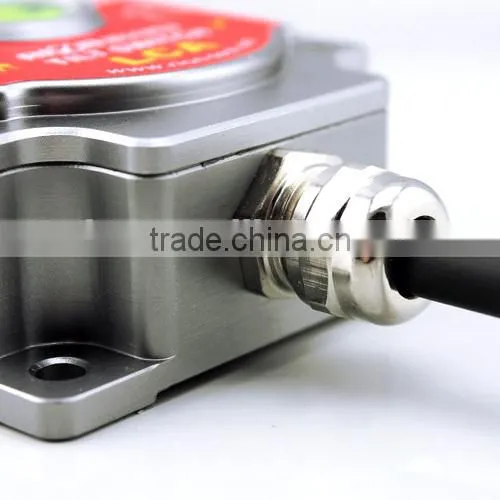

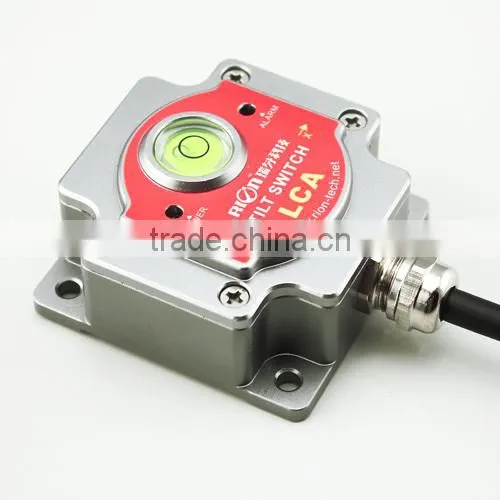

Single axis or dual axis high accuracy tilt threshold warning switches

1pcs/box ,100pcs/ctn

Single axis or dual axis high accuracy tilt threshold warning switches

Technical Data

The LCA328T series inclinometer which developed by Rion Company is a small volume MEMSdual-axis tilt sensor, because of built-in the latest MEMS production technology inclination unit, small size, long distance transmission can up to over 2000 Meters, strong ability of resisting external electromagnet interference, can be adapted to long-term working in the industry harsh environment.
This product adopts the non-contact measuring principle, can real-time output the current attitude angle, simple to use, no need to find the relative variation of the two surface for mounting. It is a ideal choice for Industrial automation control and platform measuring attitude.

Features:

• Dual-Axis Inclinometer
• Measuring range±0°~±90° optional
• Accuracy: refer to the technical data
• Wide voltage input: 9~36V
• Output mode: 4~20mA
• Wide temperature working: -40~+85°C
• IP67 protection class
• Highly anti-vibration performance >3500g
• Resolution: 0.05°
• Small Volume : 55×37×24mm(customized)

Application:

• Electric blind man chair leveling
• Cloud deck operating monitor
• Satellite antenna positioning
• Medical equipment leveling
• Car Chassis Measurement
• Four - wheeled positioning system
• engineering mechanical measurement of dip angle

Product Show

Order Information

Dimension

Mechanical Parameters

• Connectors:1m lead cable(customized)
• Protection glass:IP67
• Enclosure material :Aluminum Oxide
• Installation :3*M4 screws

Measuring Directions&Fix

Production installation notes

• Packaging: carton with sponge
• Delivery time: within 7 business days for common order after we receive the full payment
• Shipping time: 3-5 work days by DHL/UPS/FEDEX/TNT; 5-7 work days by EMS.
•
